VS-L(F) Series 50mm
VS-L(F) Series

VS-L(F) Series 50mm

F-mount Focal Length 50mm Models
產品規格
Focal Length(mm)
50mm
Opti. Mag. Range
（∞）0.04x~0.3x
WD
181.1~1294.7mm
O/I
285.9~1405.2mm
Aperture
F1.8~16
Wavelength
Visible
Mount
F-Mount
Flange Back
46.5mm
Image Circle
Φ43mm, Φ45mm
檔案下載
立即詢價
INFORMATION
產品資訊



Line Scan Macro Lenses

  • There is a large range of focal lengths and supported sensors which make it a good choice for any line scan application.
  • Focal Length 50mm
  • Distortionless
  • Select mount adaptors are available (M42,TFL,M58 and more)
  • 2021.3 New model VS-L20040/F is available.

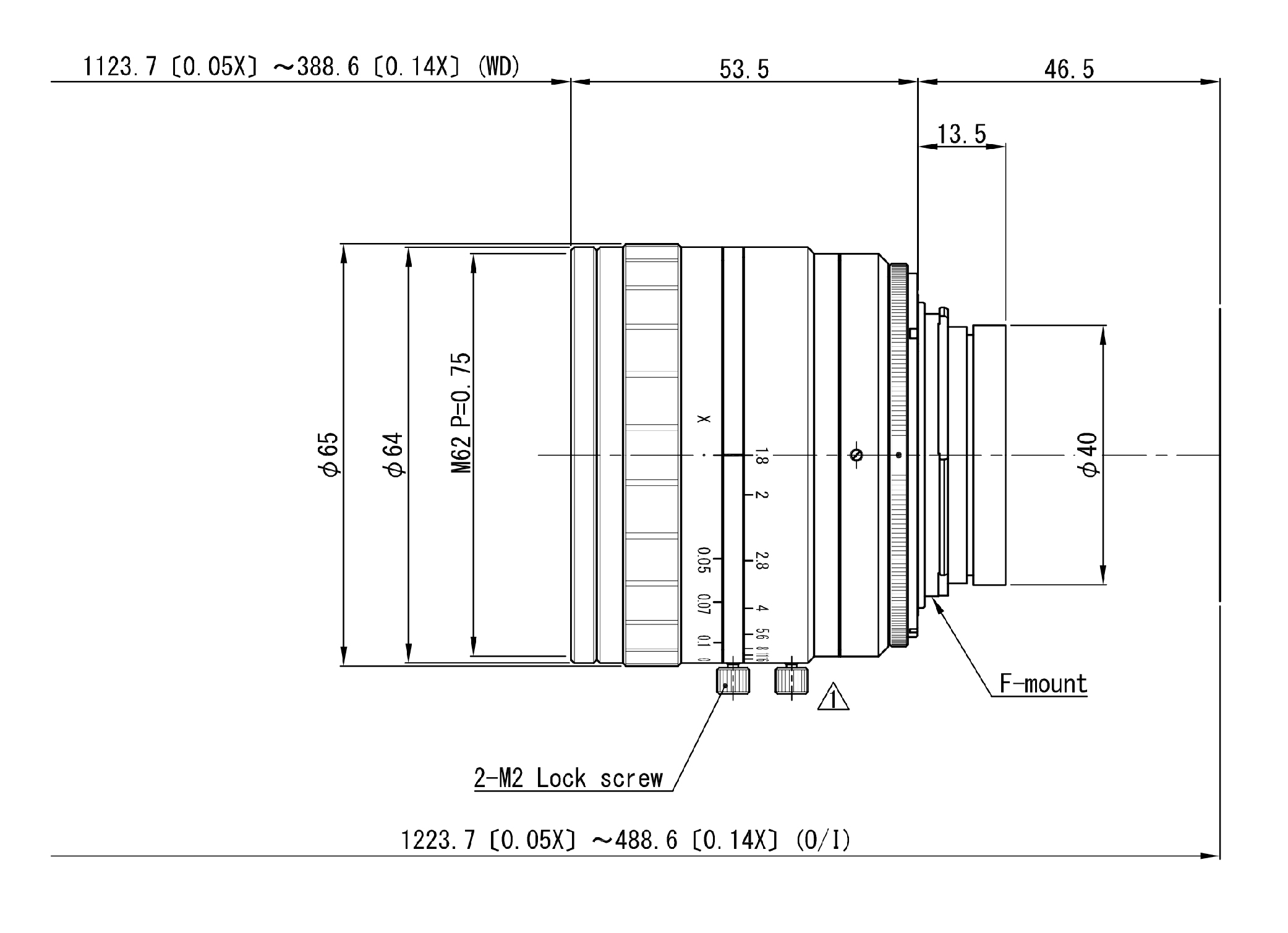

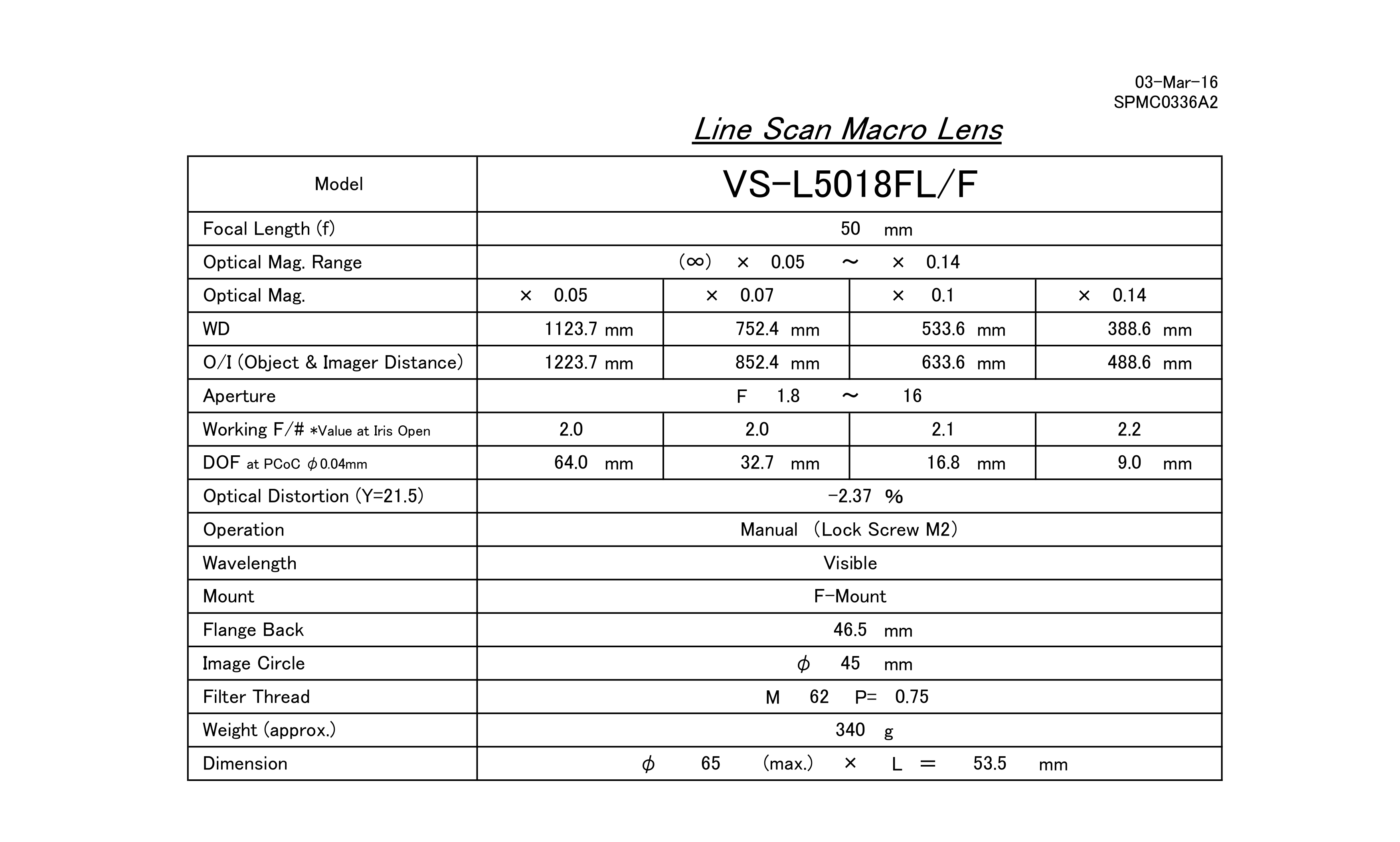

VS-L5018FL/F

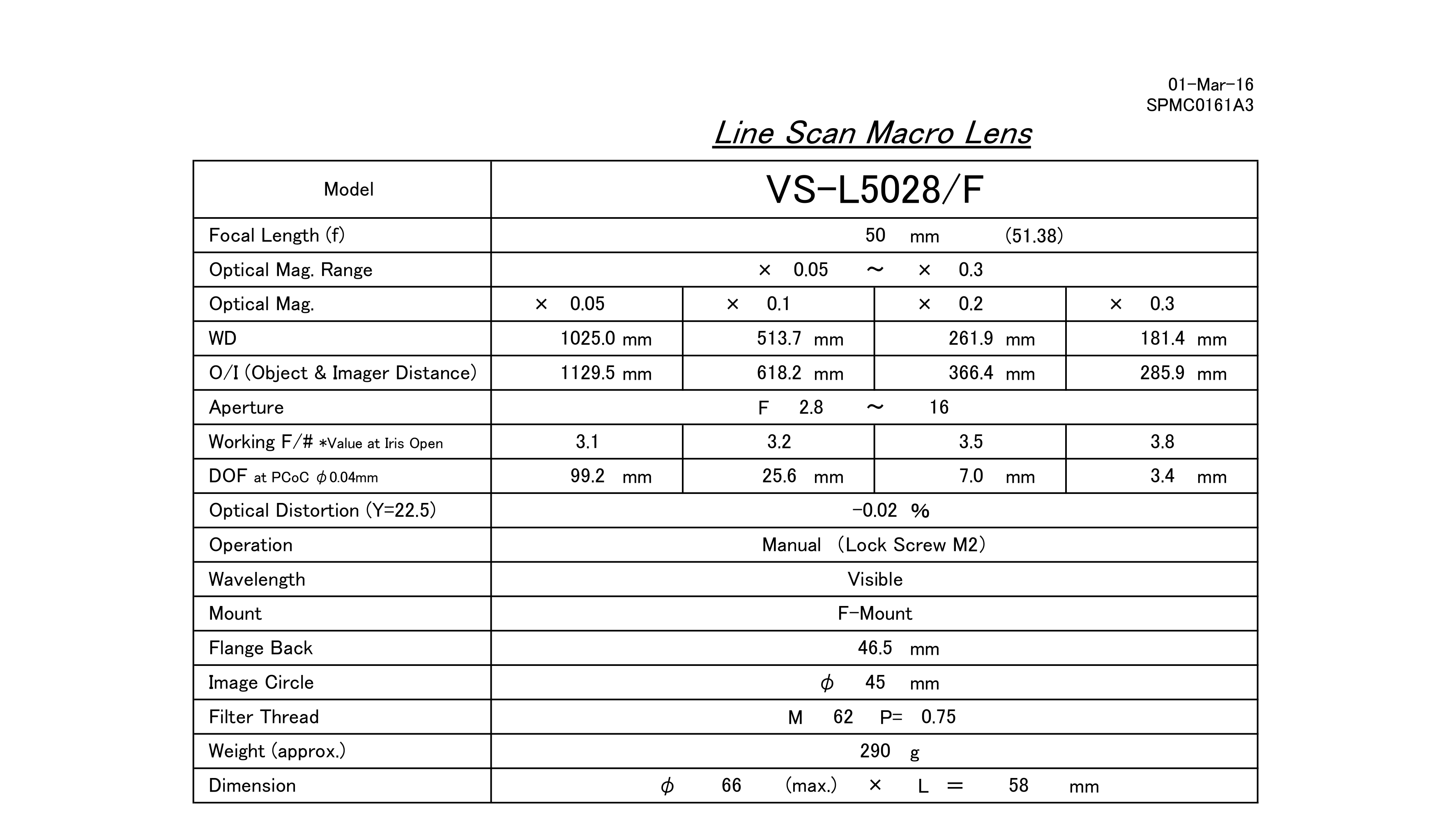

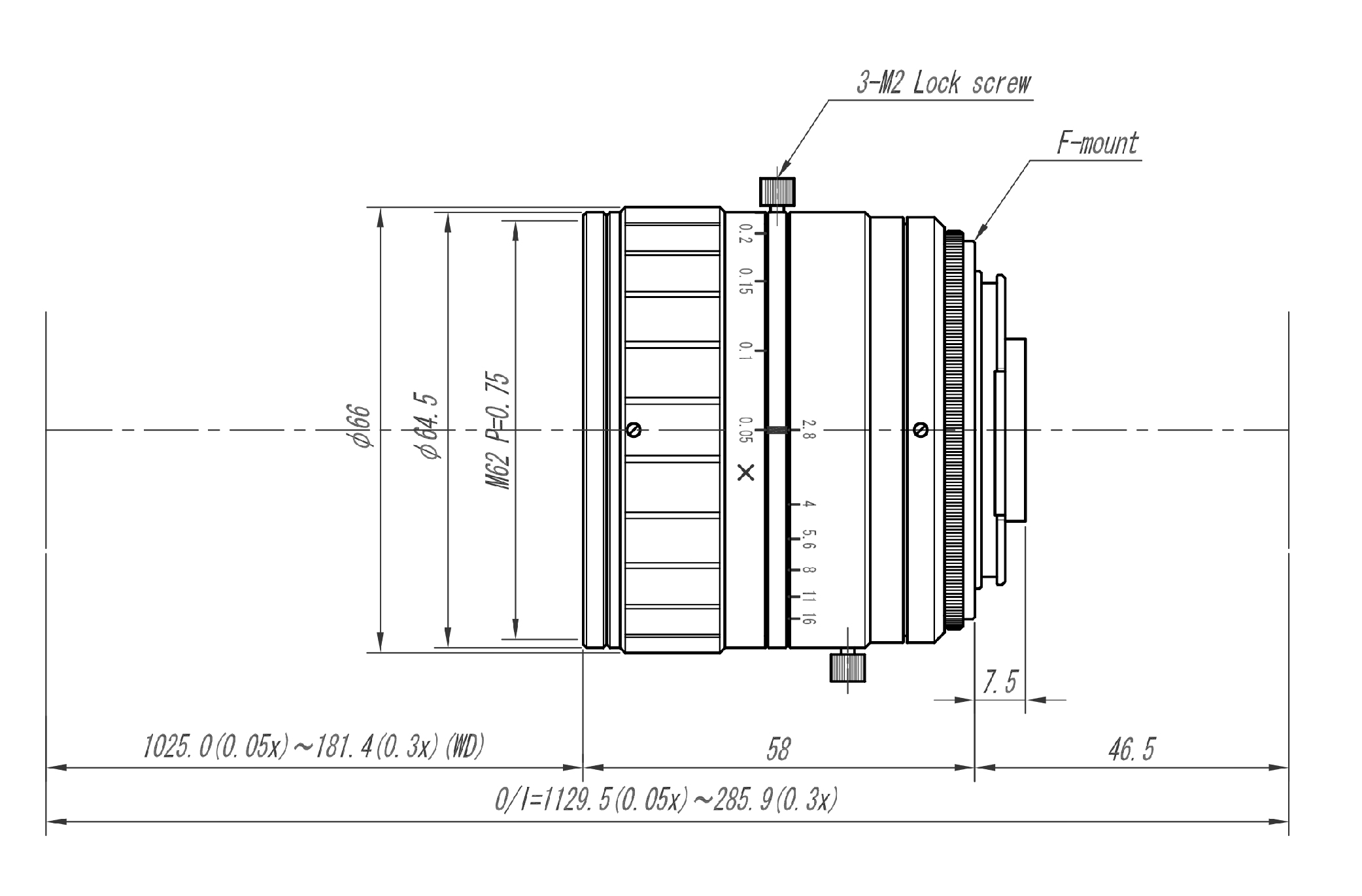

VS-L5028/F

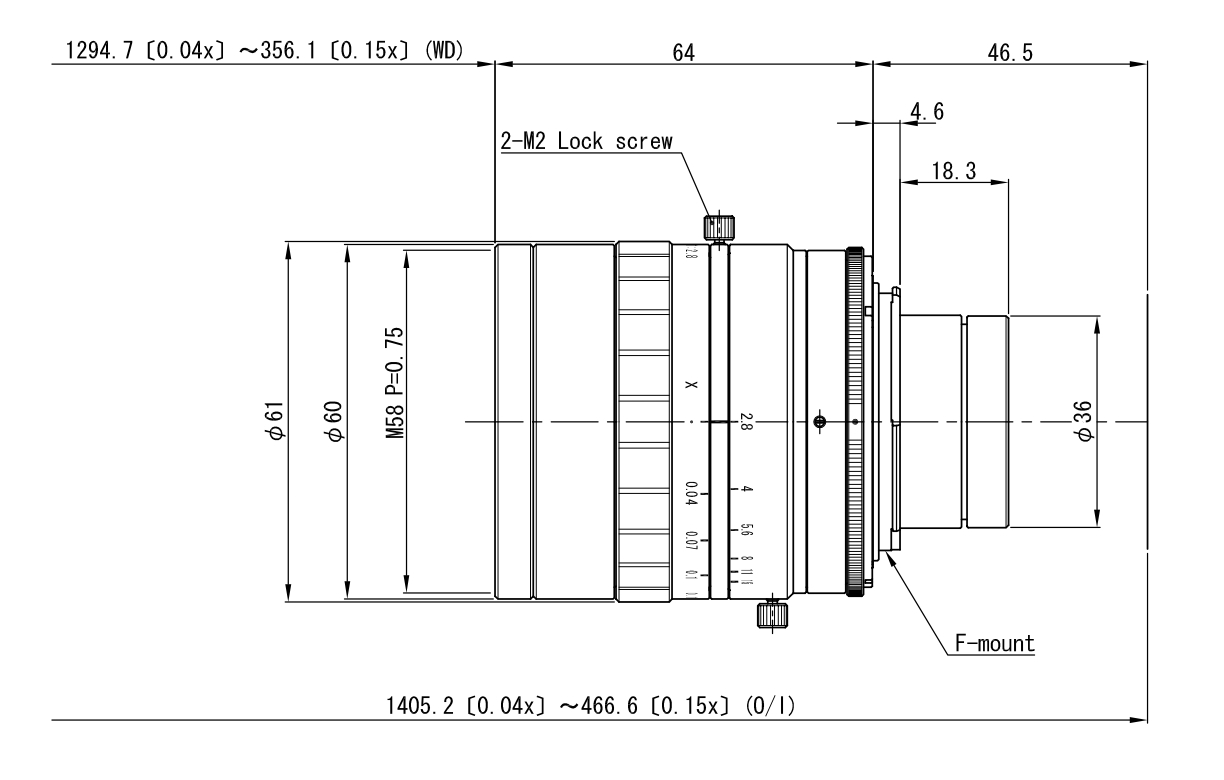

VS-L5028FL/F
