VS-L(F) Series 50mm

VS-L(F) Series, 未分類

VS-L(F) Series 50mm

F-mount Focal Length 50mm Models

Specification

Focal Length(mm)

18~35mm

Opti. Mag. Range

（∞）0.025x~0.3x

WD

137.9~1010.8mm

O/I

241.9~1911.2mm

Aperture

F2.6~16

Wavelength

Visible

Mount

F-Mount

Flange Back

46.5mm

Image Circle

Φ29mm, Φ43mm, Φ45mm

INFORMATION

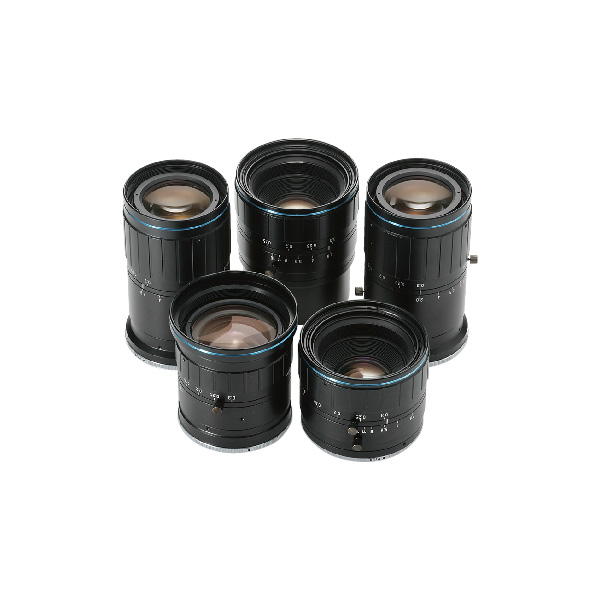

Line Scan Macro Lenses

There is a large range of focal lengths and supported sensors which make it a good choice for any line scan application.
Focal Length 50mm
Distortionless
Select mount adaptors are available (M42,TFL,M58 and more)
2021.3 New model VS-L20040/F is available.

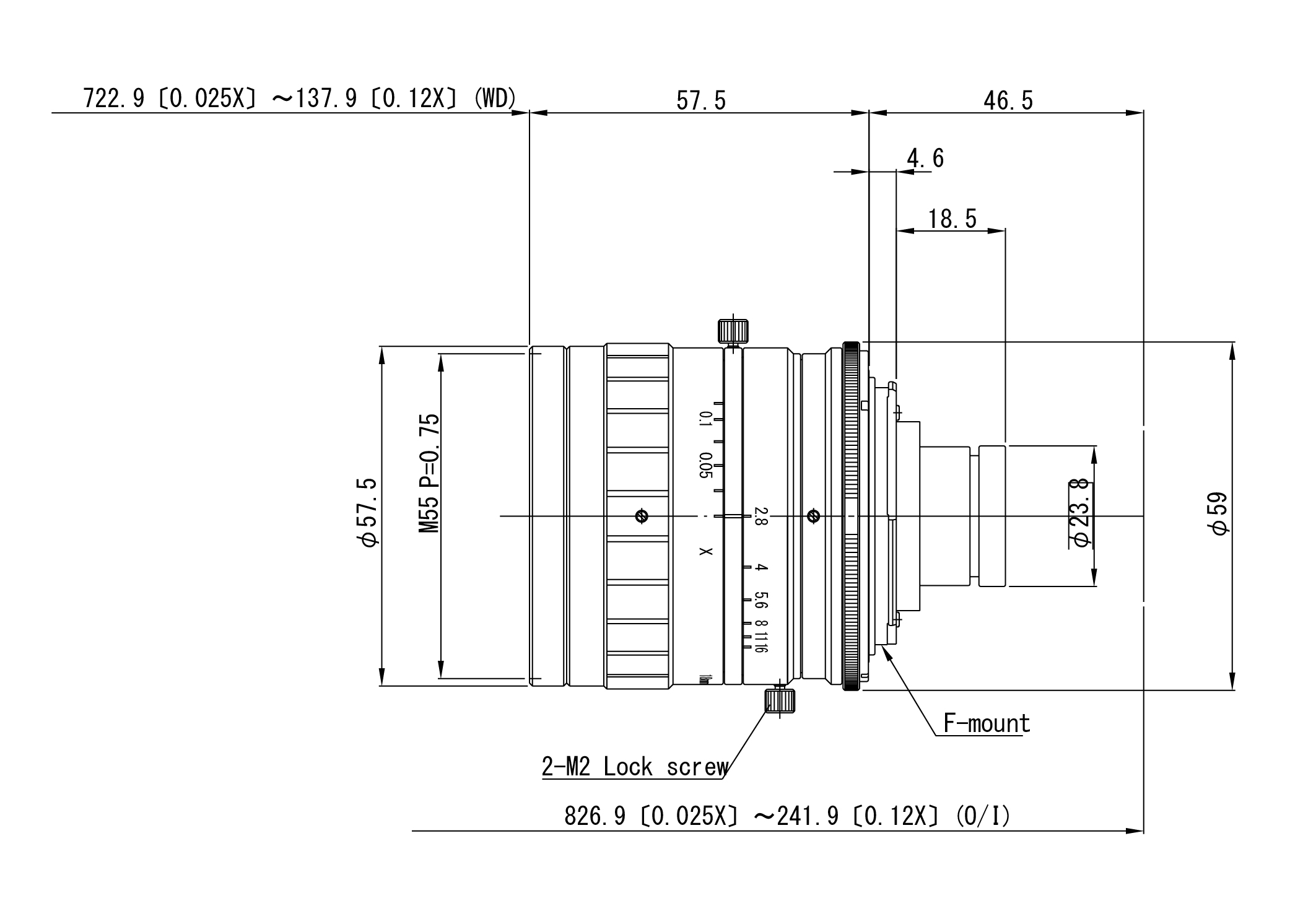

VS-L1828-F

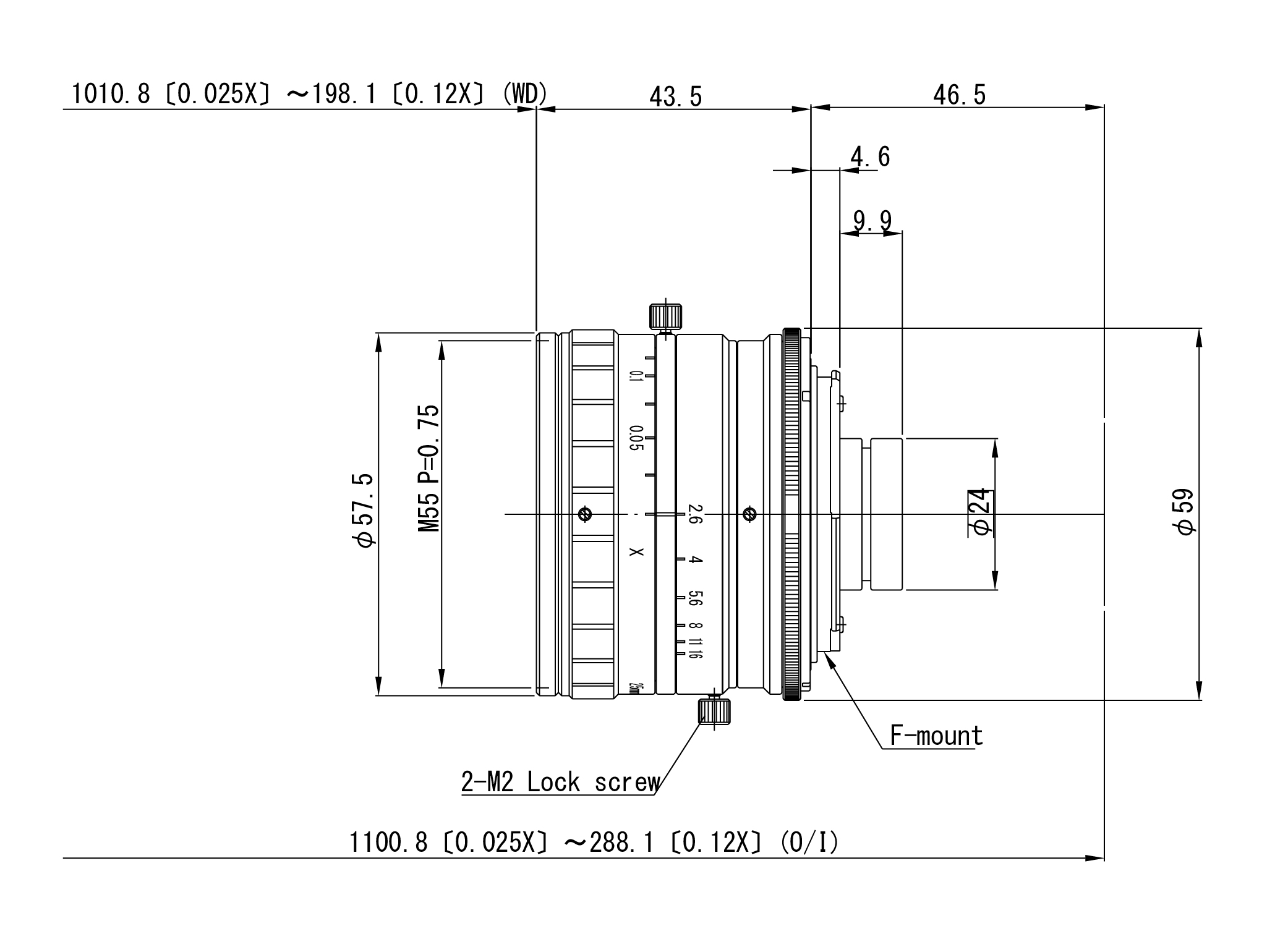

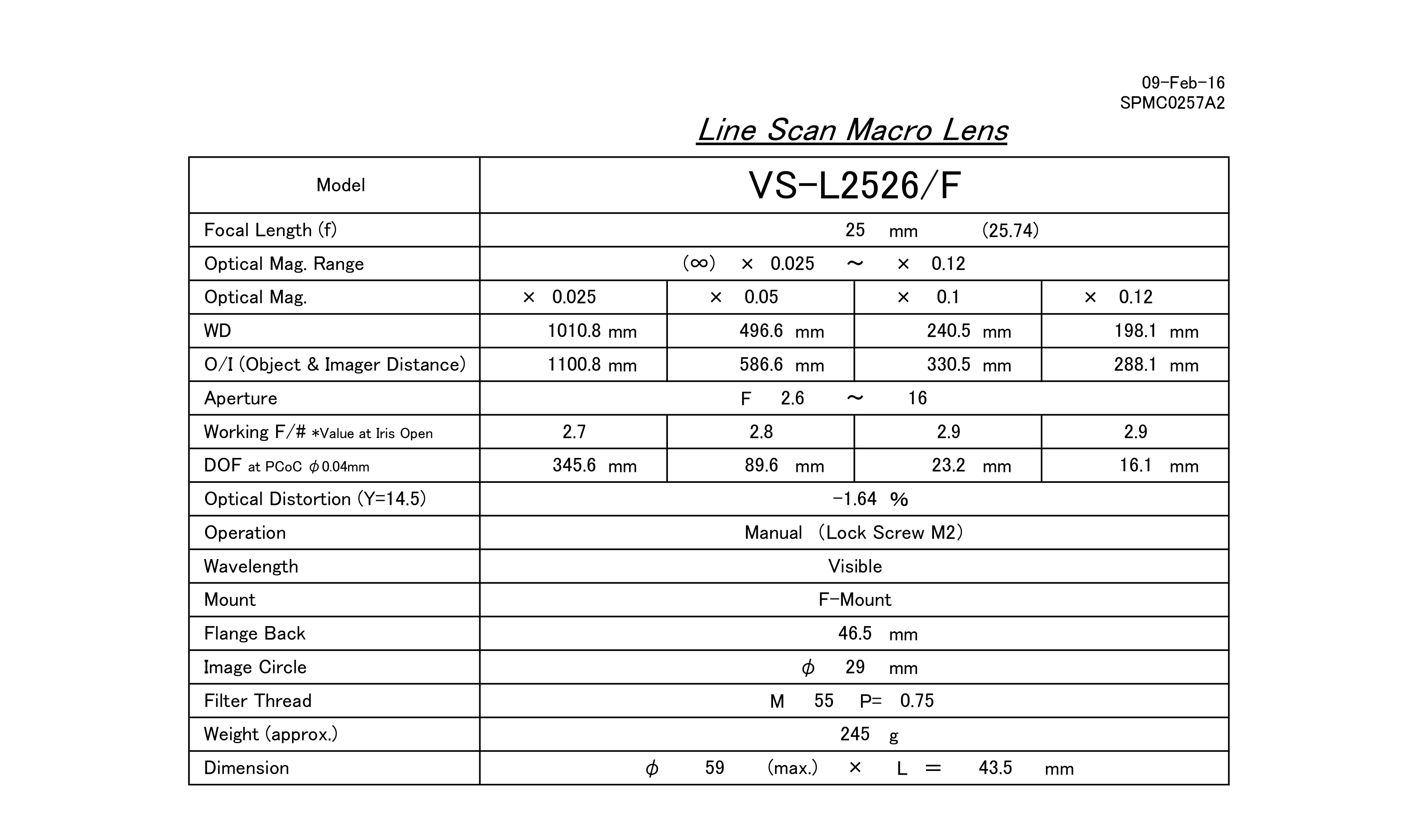

VS-L2526/F

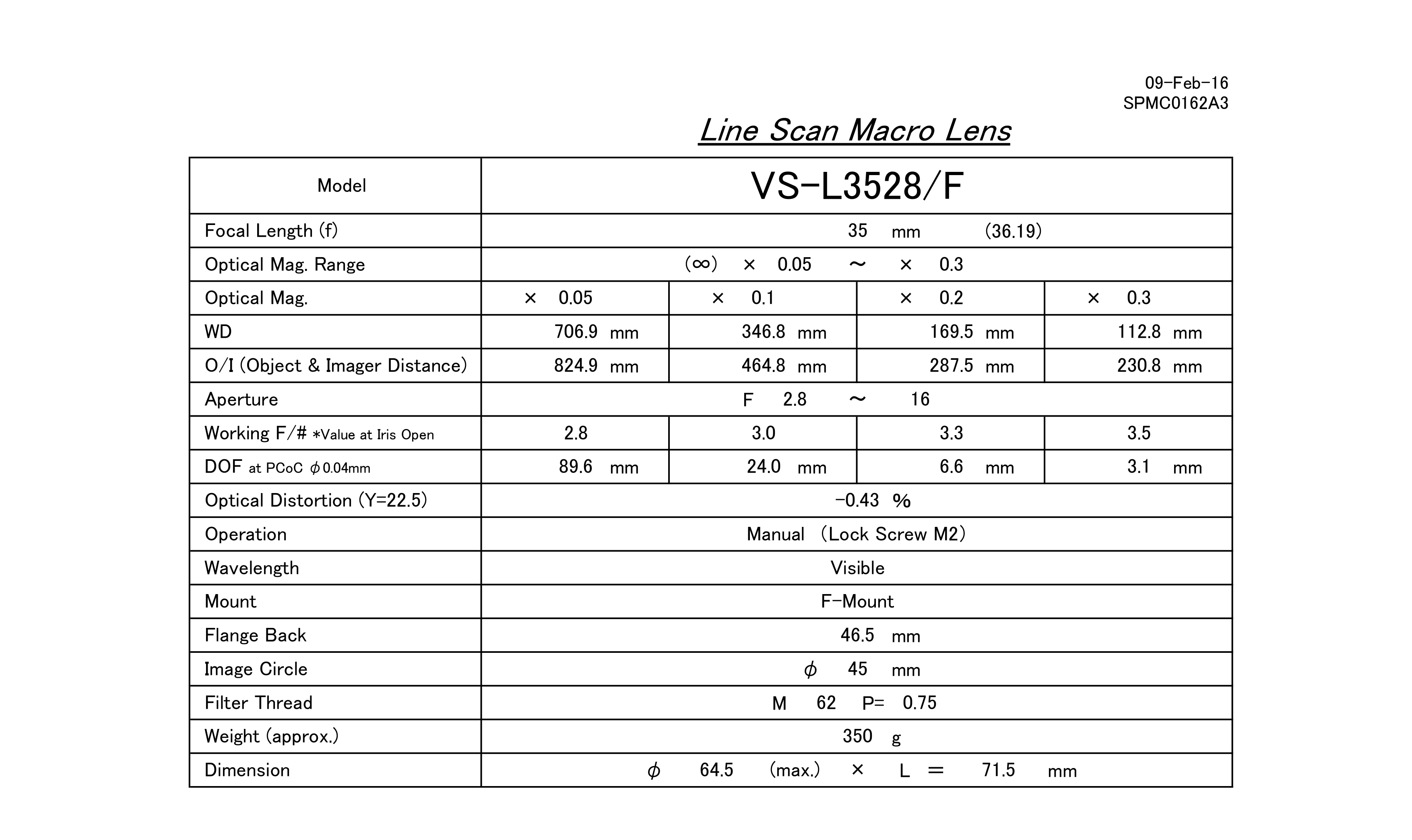

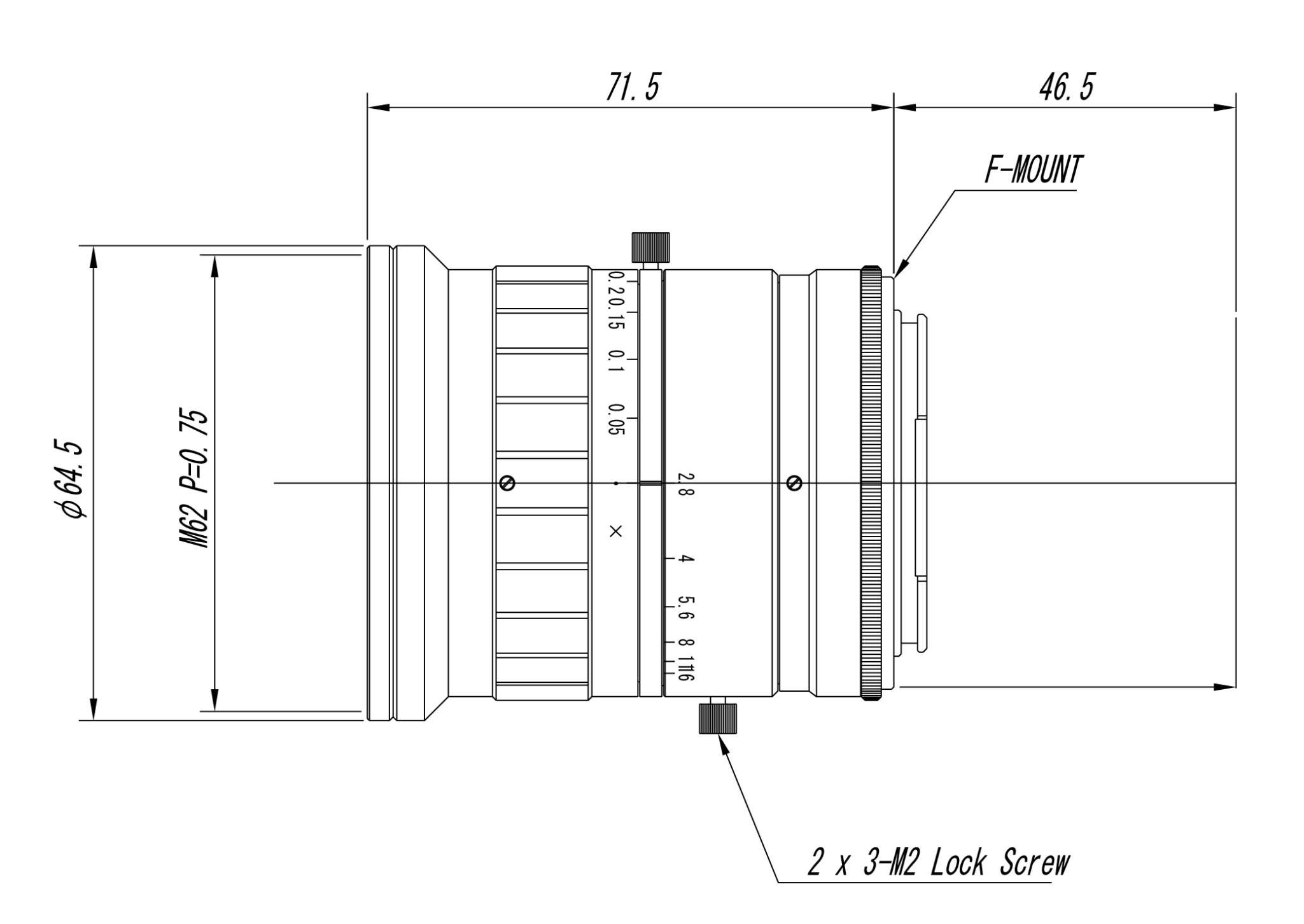

VS-L3528/F

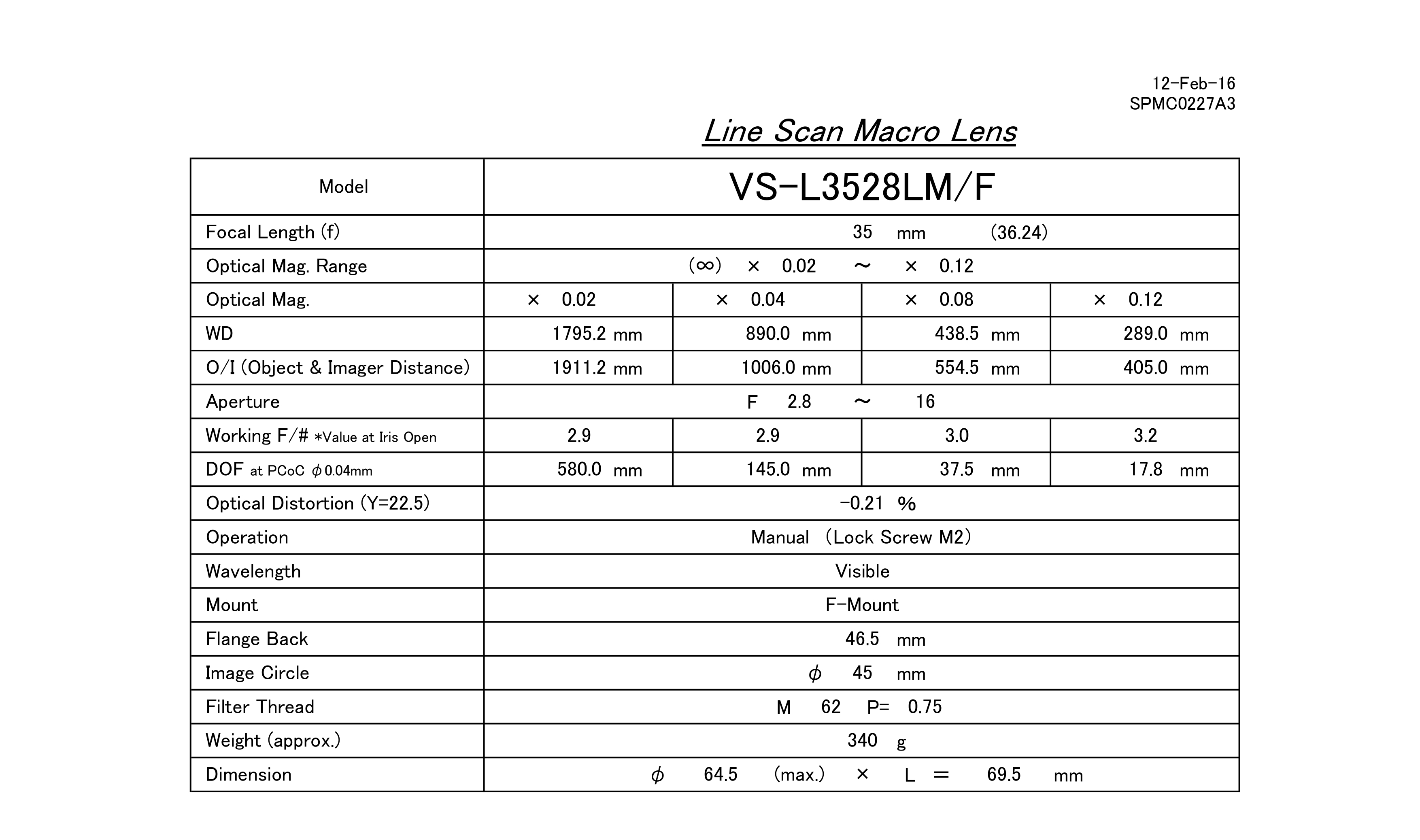

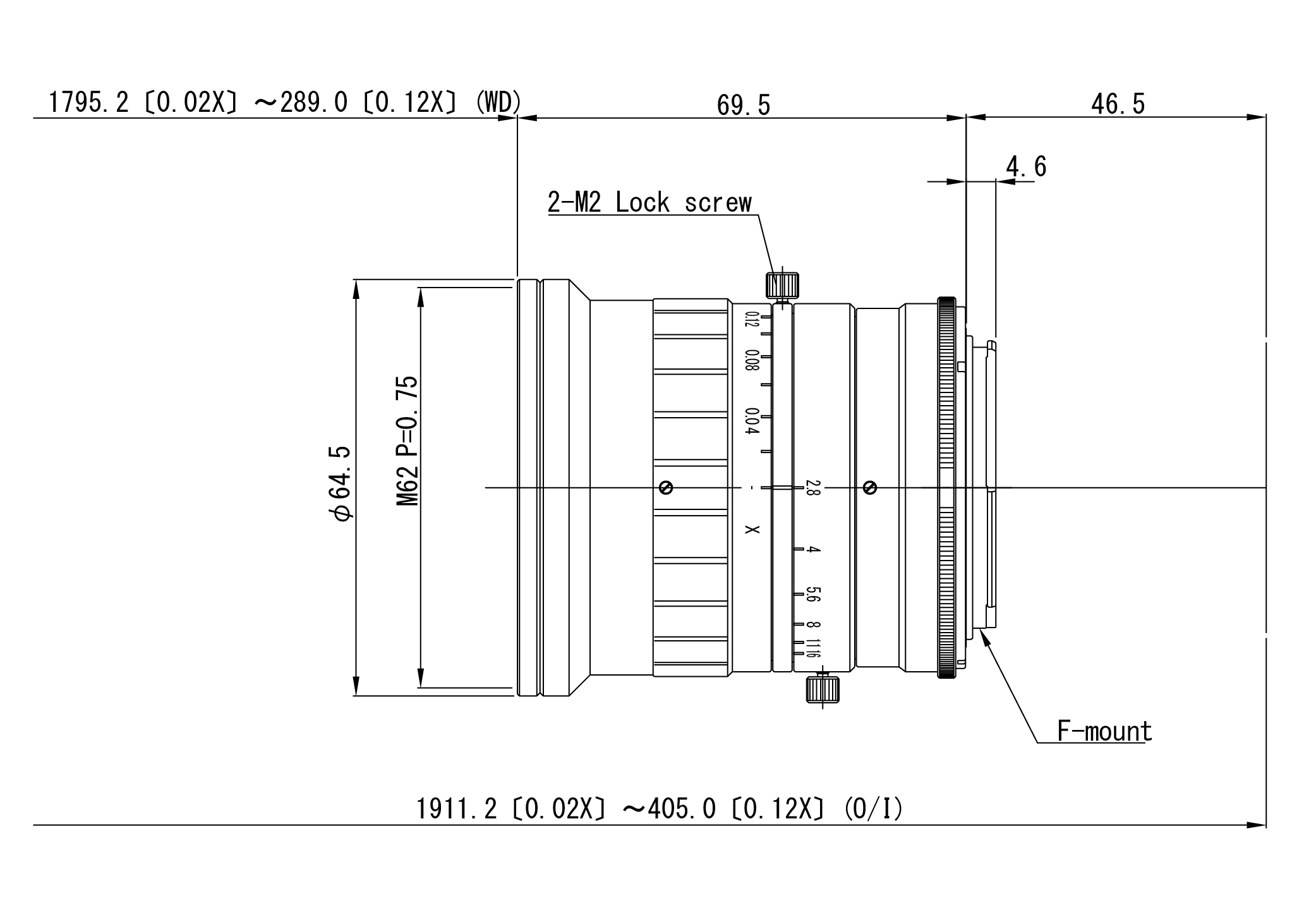

VS-L3528LM/F

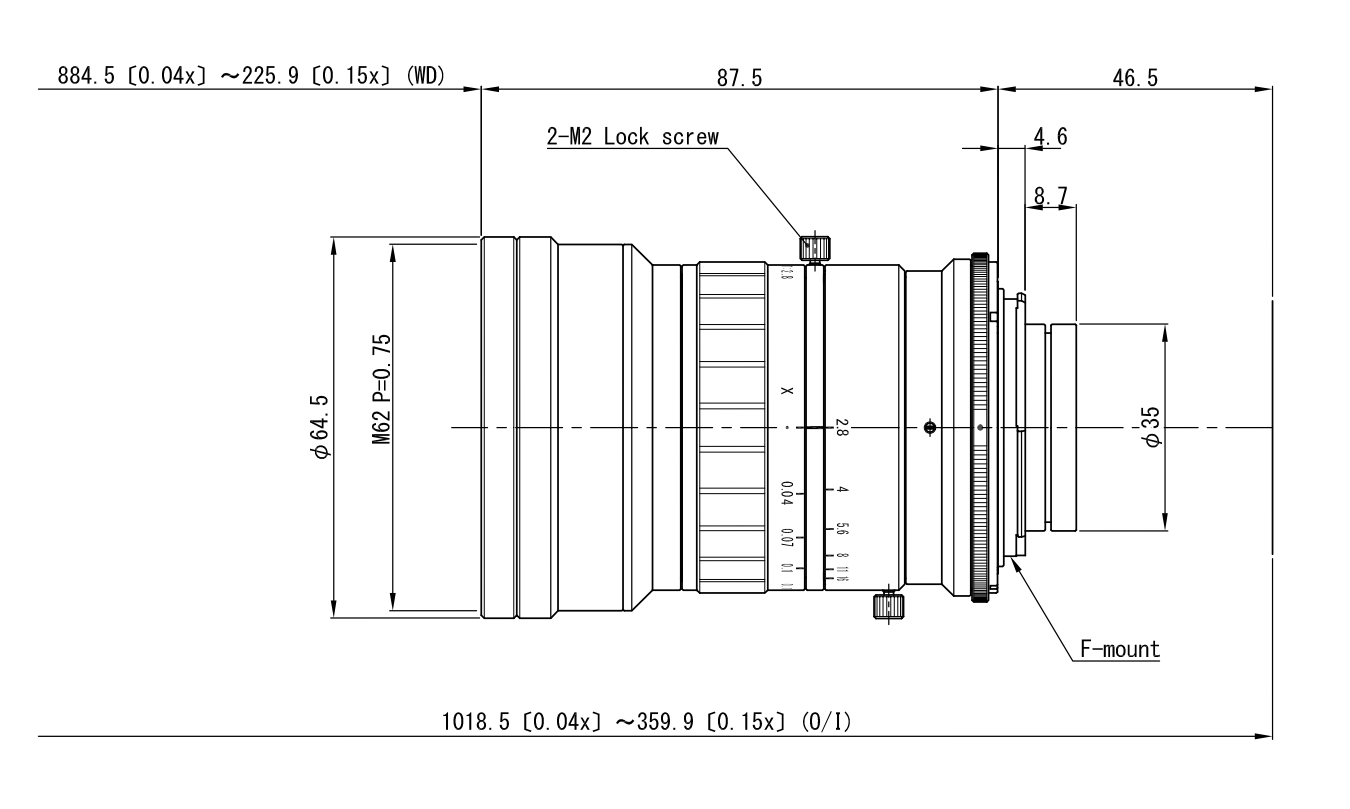

VS-L3528FL/F
