4K 7μ Series

4K 7μ Series：圖片 2

4K 7μ Series：圖片 3

4K 7μ Series：圖片 4

4K 7μ Series：圖片 5

4K 7μ Series：圖片 6

線掃描鏡頭

4K 7μ Series

4K 7μ Series Focal Length 25~50mm

產品規格

Focal Length(mm)

25~50mm

Opti. Mag. Range

0.04x~0.25x

WD

94.5~1003.8mm

O/I

179.1~1065.4mm

Aperture

F2.8-F22

Wavelength

Visible

Mount

M42, V-38

Flange Back

12~44.66mm

Image Circle

Φ25mm, Φ29mm, Φ30mm, Φ31.7mm

INFORMATION

產品資訊

Main feature

Universal line-scan lenses, designed for the 4K7um line-scan cameras.
EFL starts from 25mm, shorter working distance, larger FOV.
Ultra-low distortion.
Floating focusing optical system, ideal condidate for compact system.
High cost performance solution.

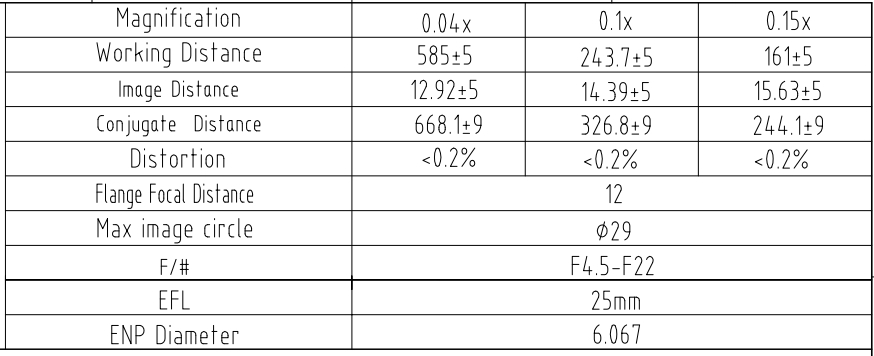

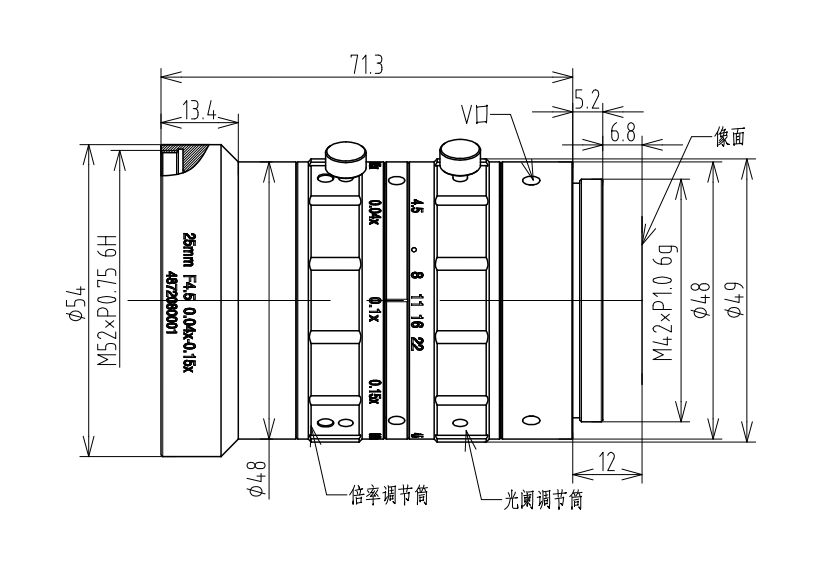

DZO-LS25008A

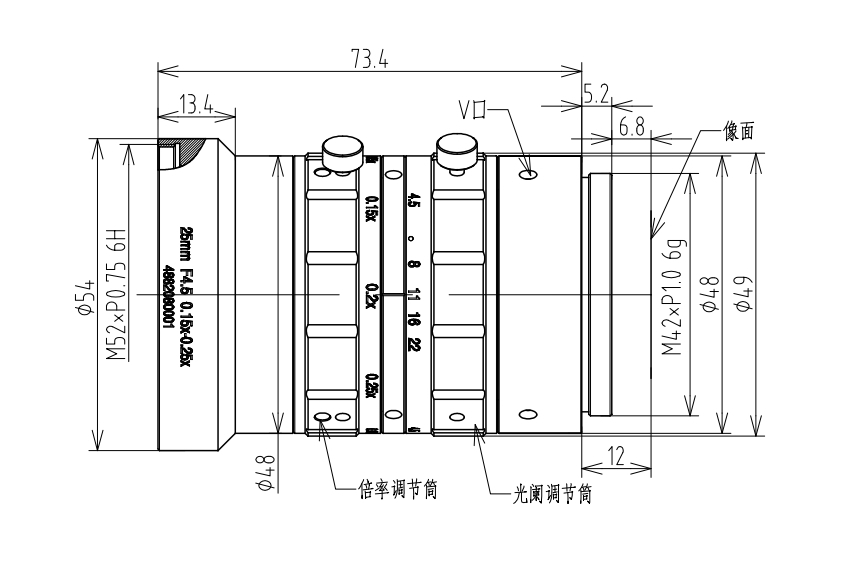

DZO-LS25020A

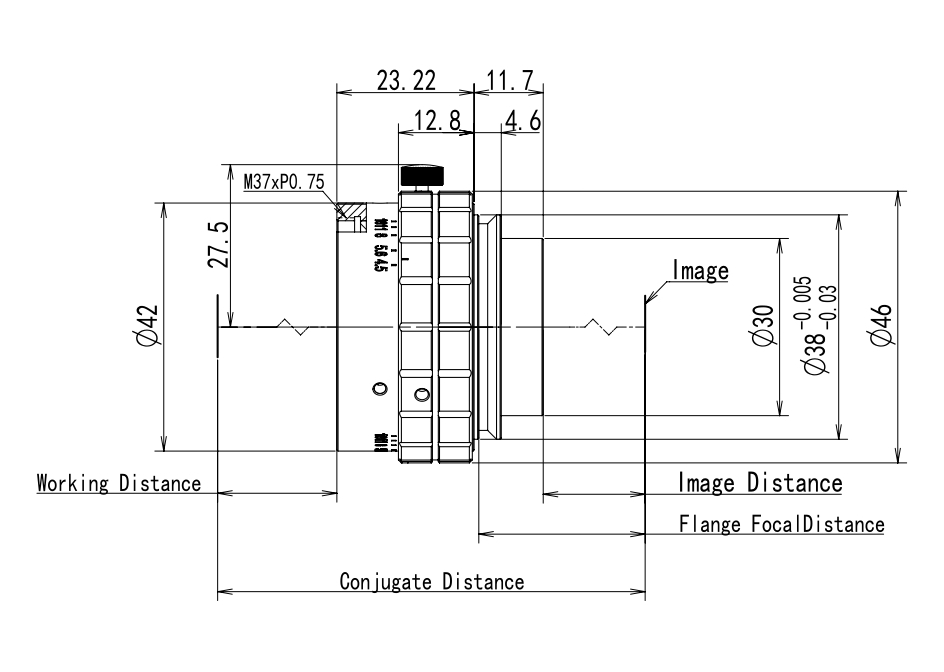

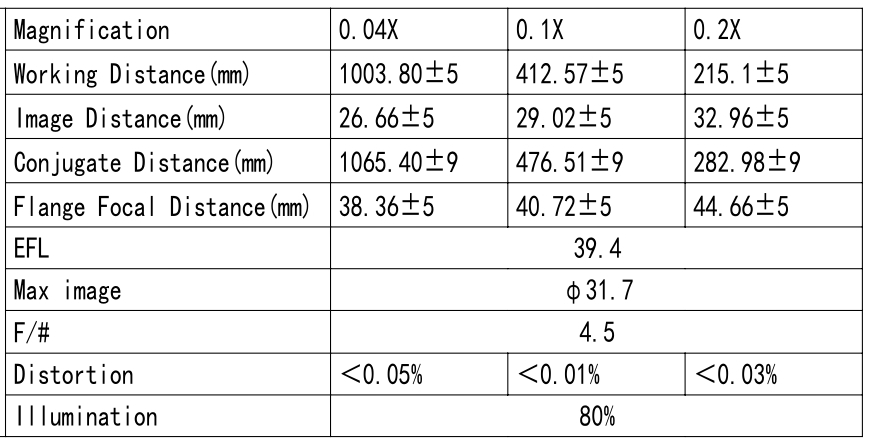

DZO-LS4045A

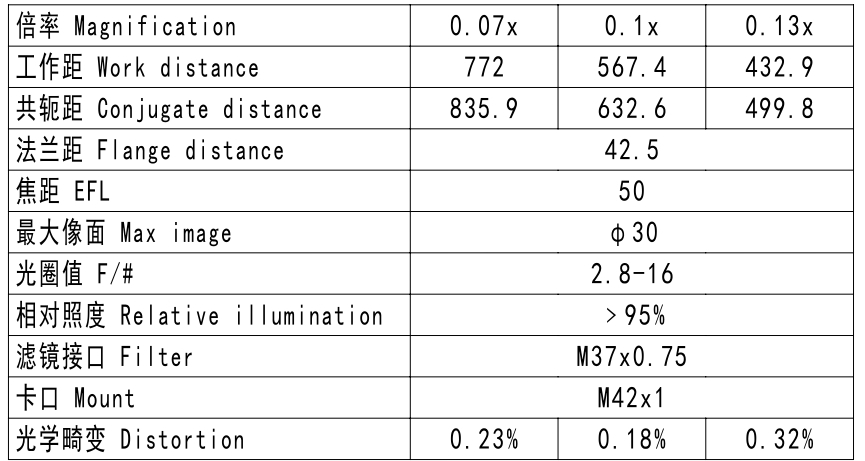

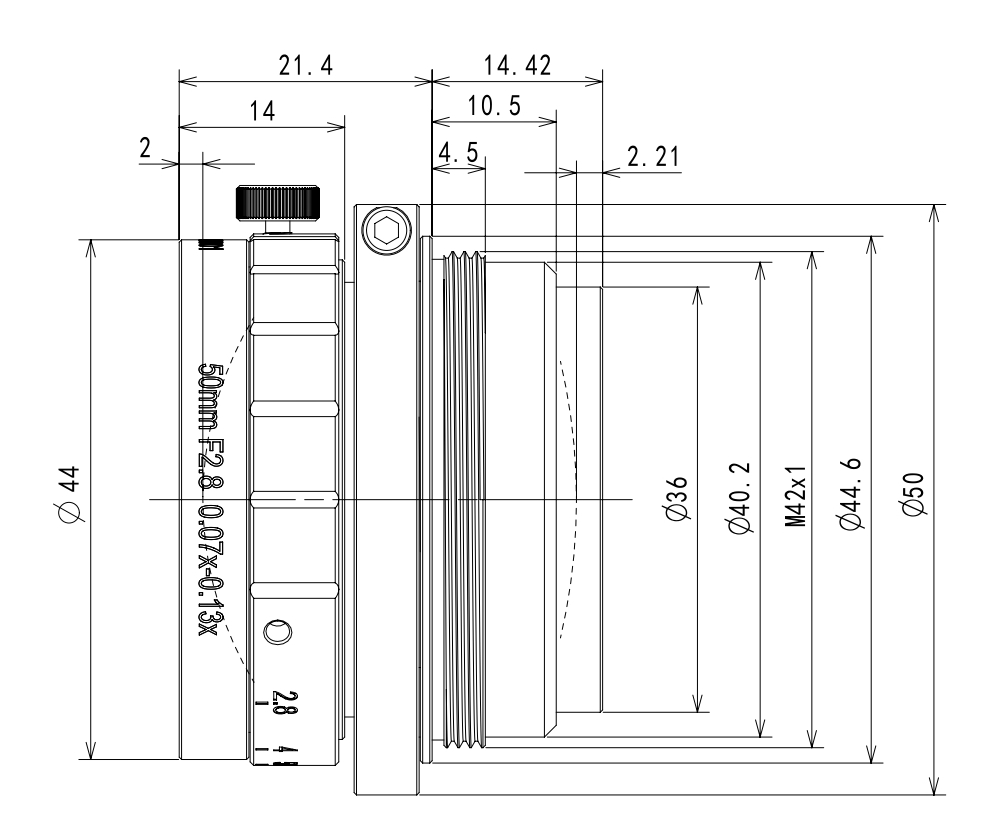

DZO-LS5028A
