Main feature

• A series designed for the 16K5u line scan cameras, a series that has to be carved like a diamond.
• Amazing image uniformity, enable higher inspecting efficiency.
• Strict Apochromatic control, less impact of chromatic aberrations on applications.
• The working distance and aperture adjustable.
• Coaxial design available for contrast improvement.





---

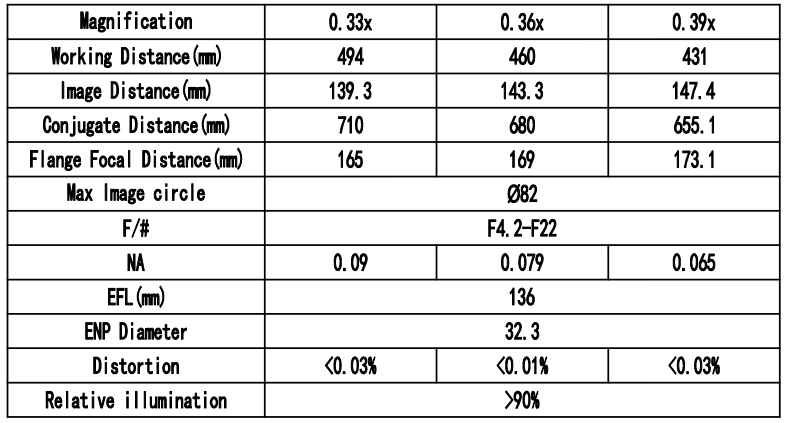

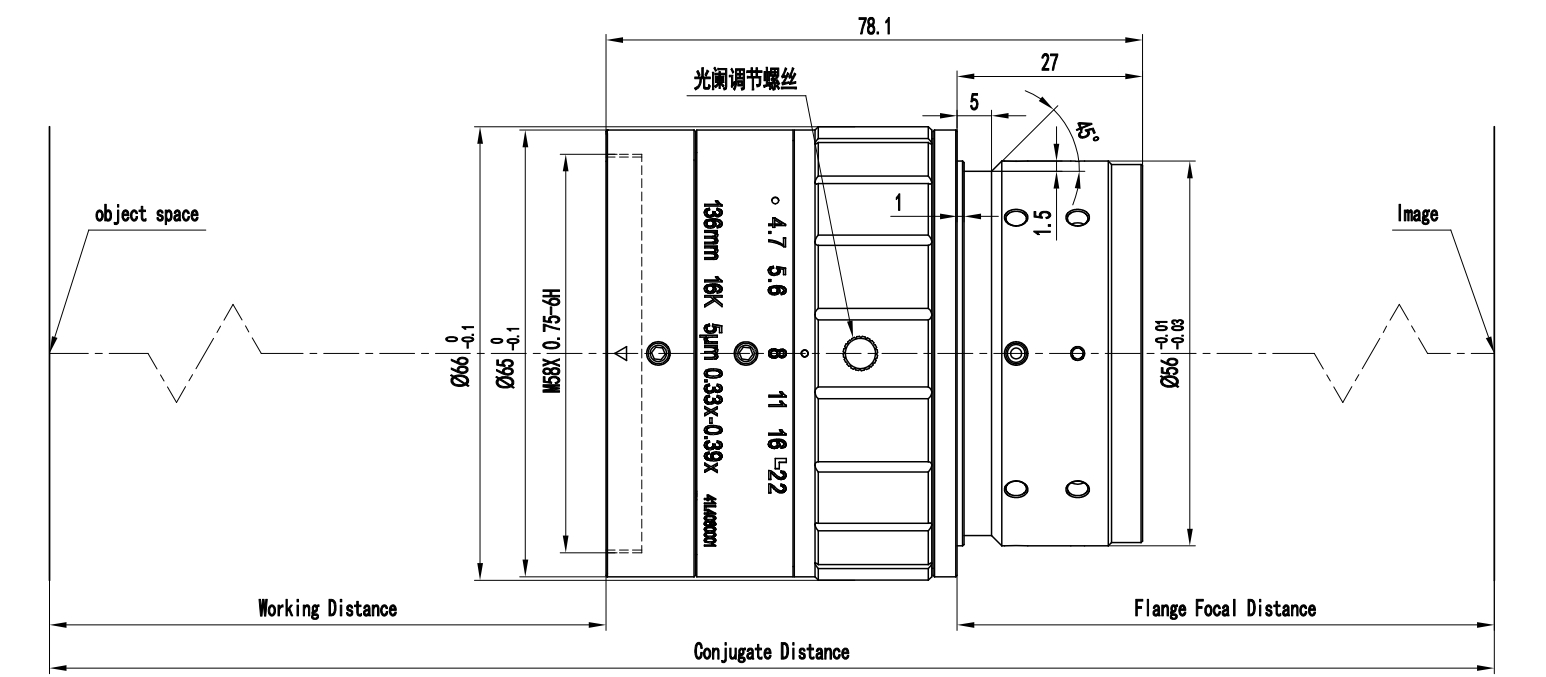

DZO-PLS16033APO







---

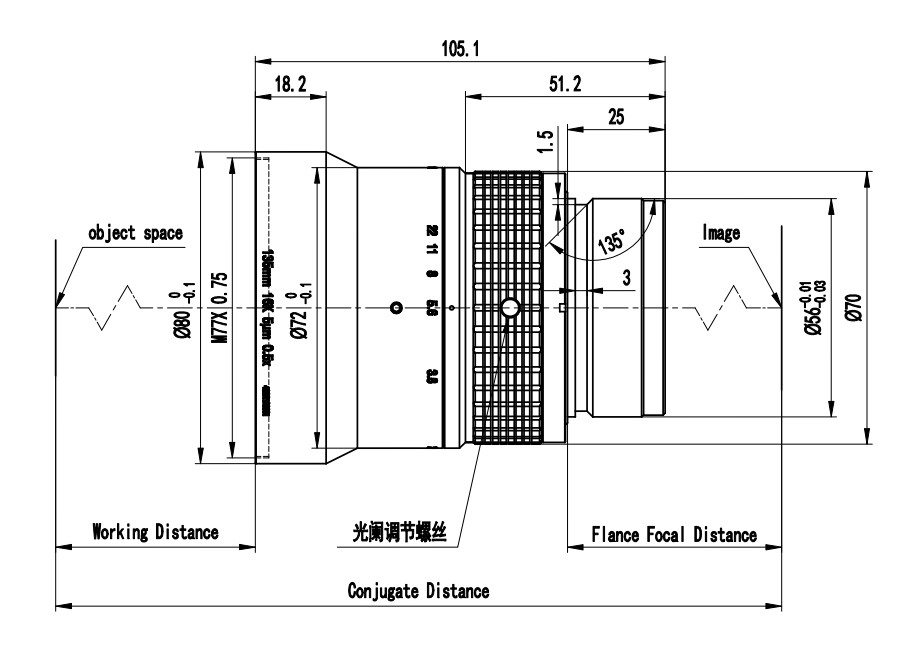

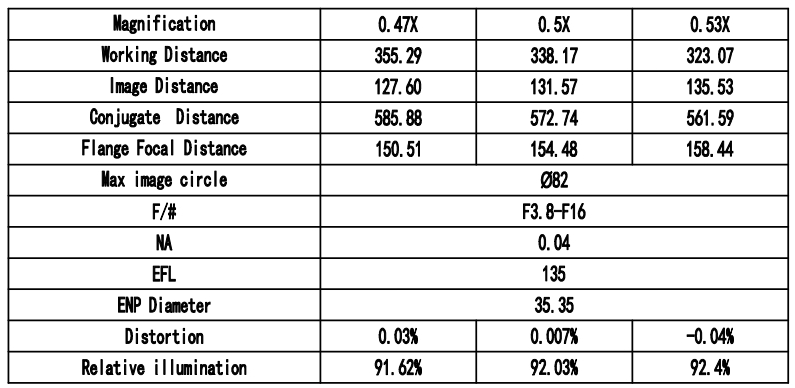

DZO-PLS16050APO





---

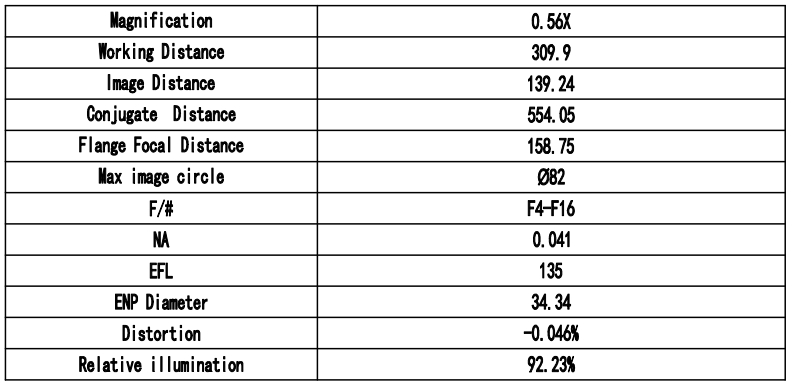

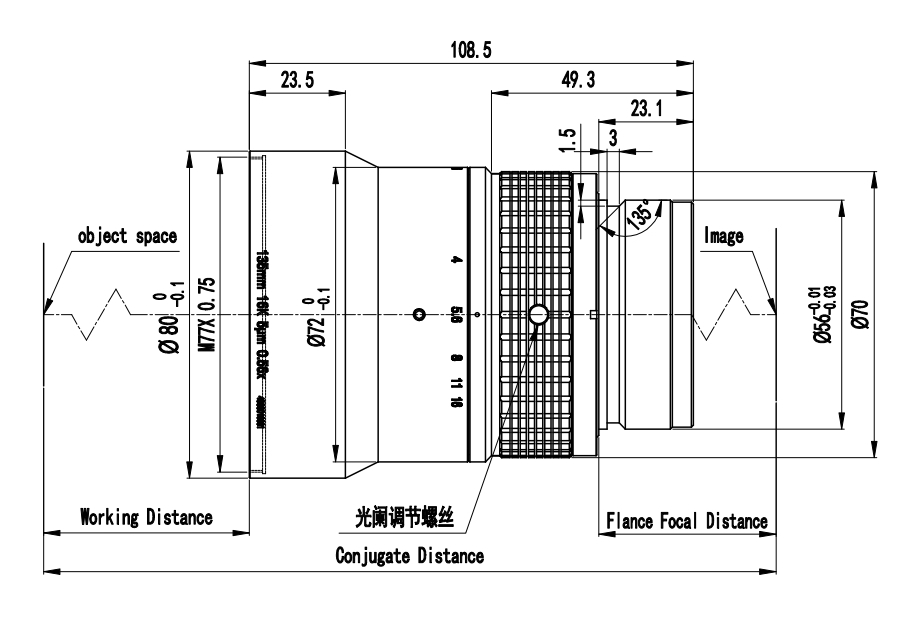

DZO-PLS16056APO





---

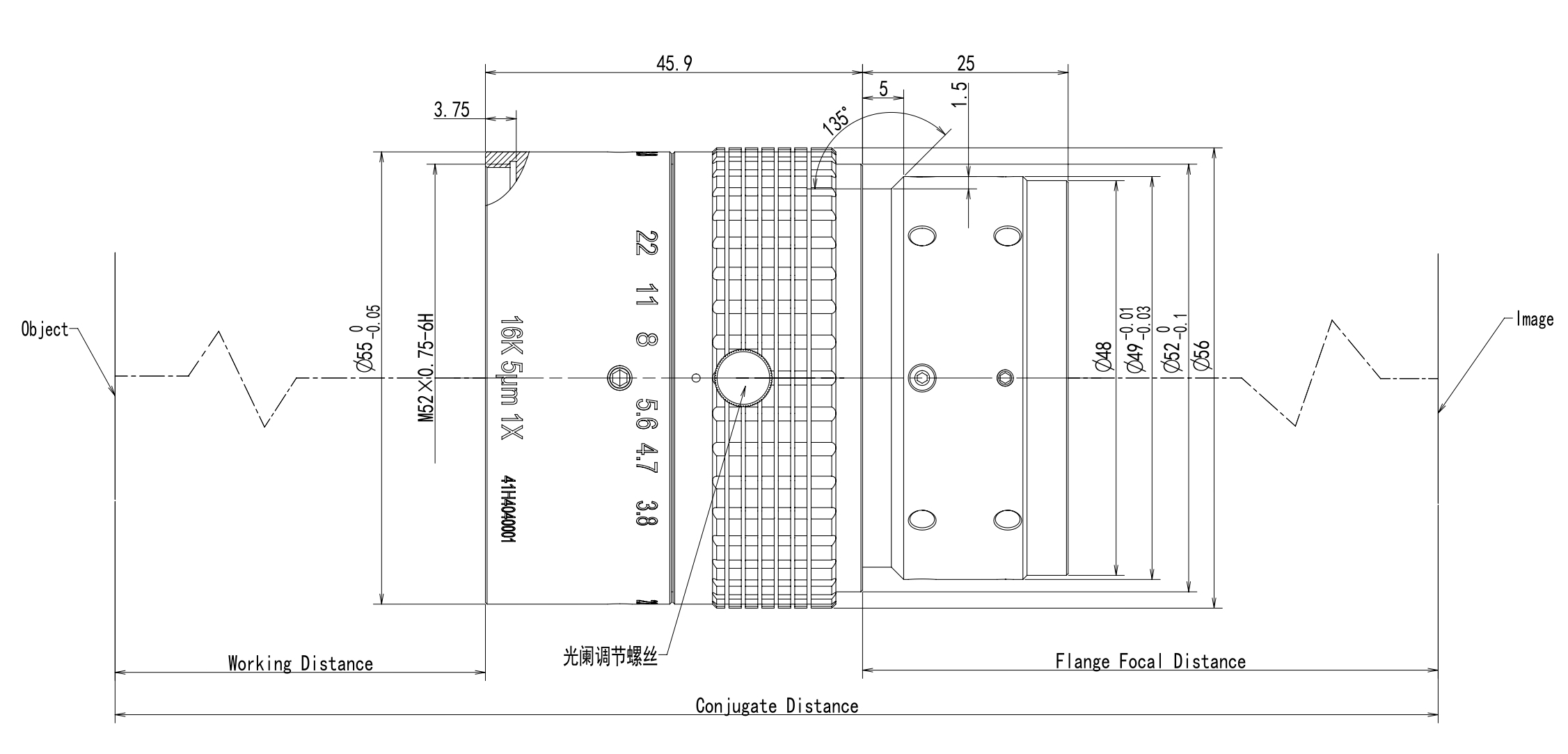

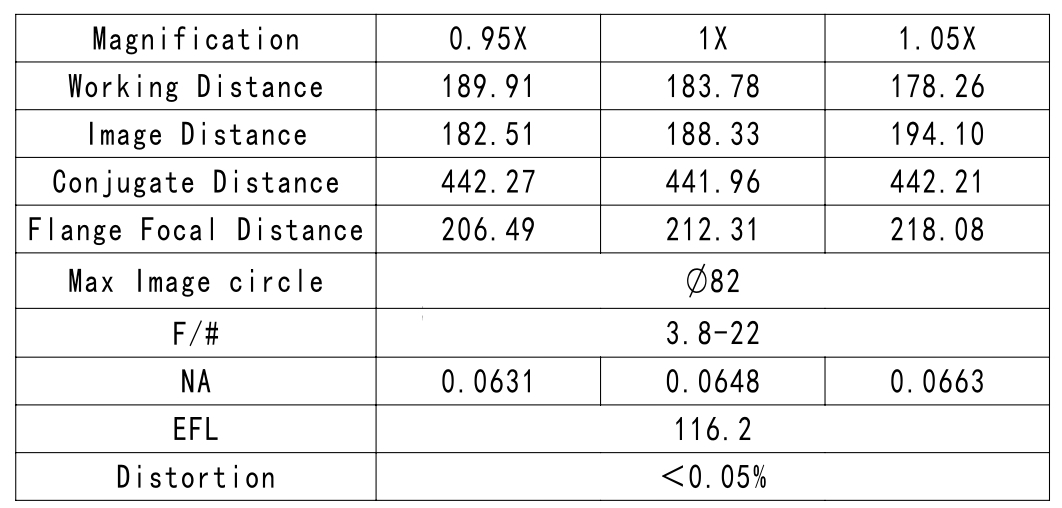

DZO-PLS16100APO





---

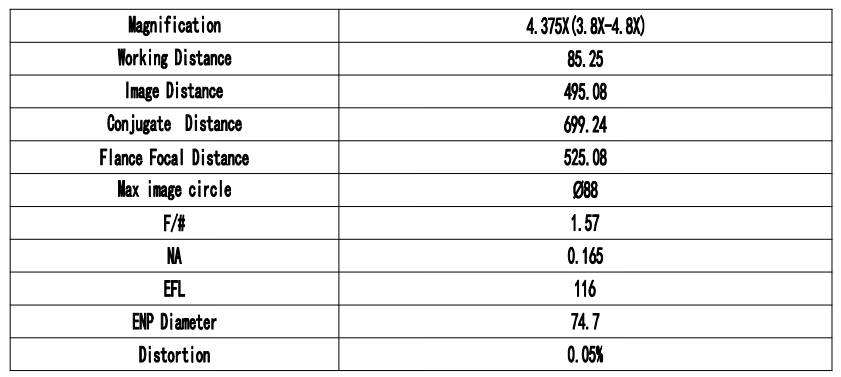

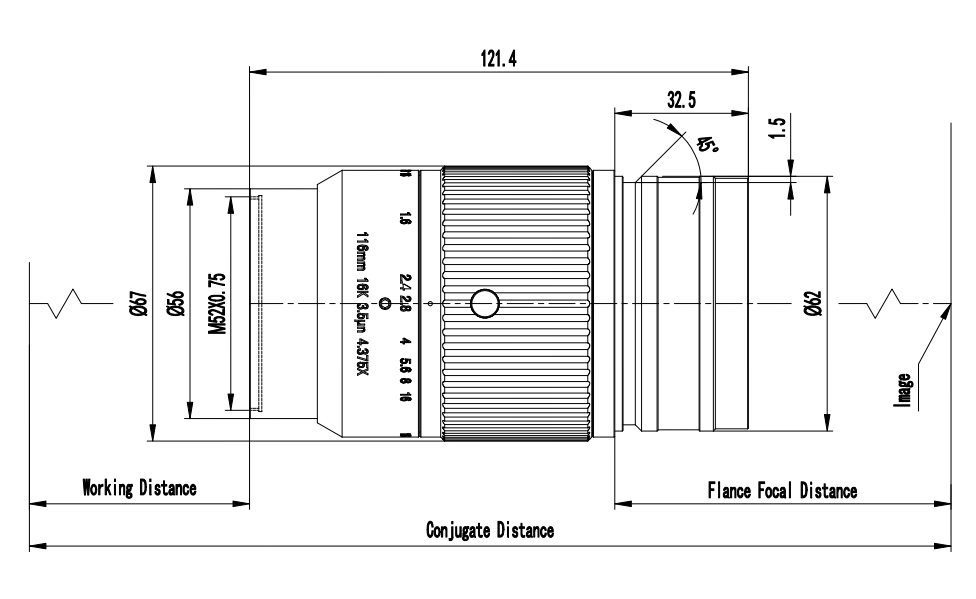

DZO-PLS16437APO





---

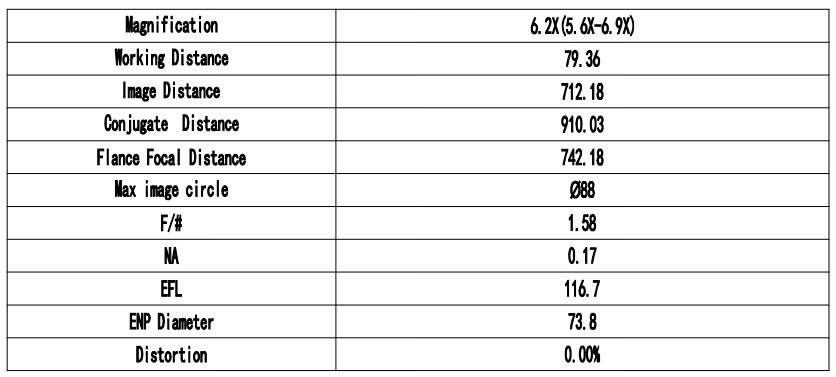

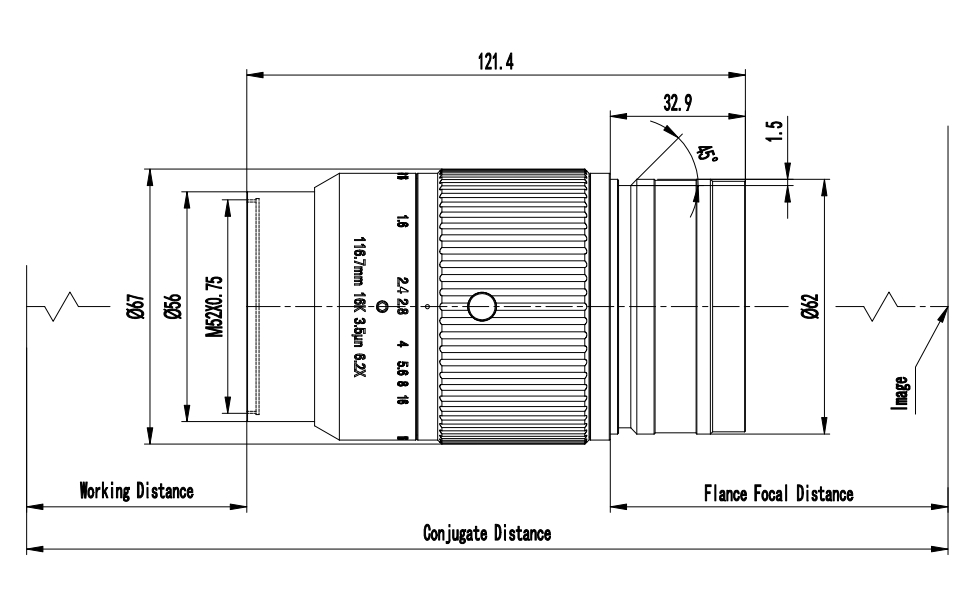

DZO-PLS16620APO





---

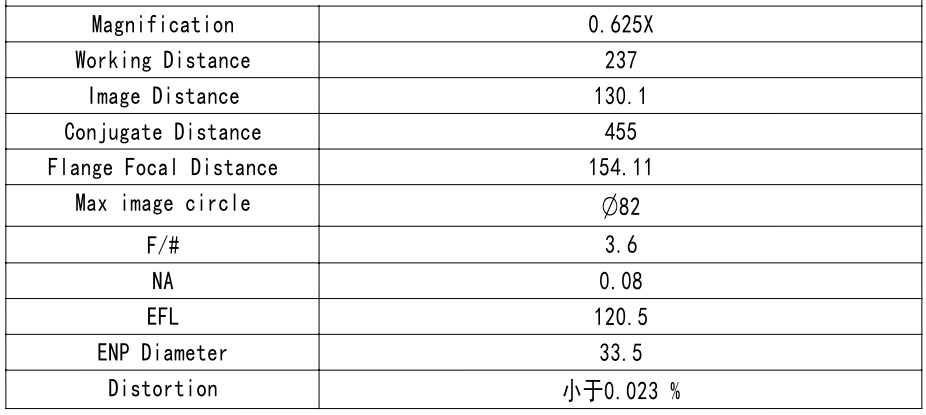

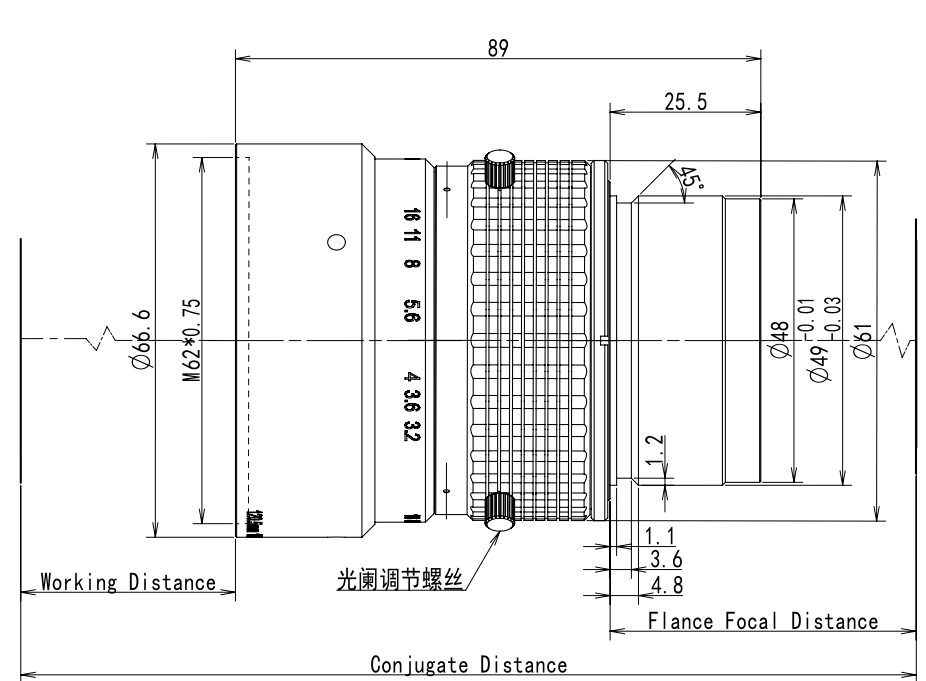

DZO-PLS160625APO
