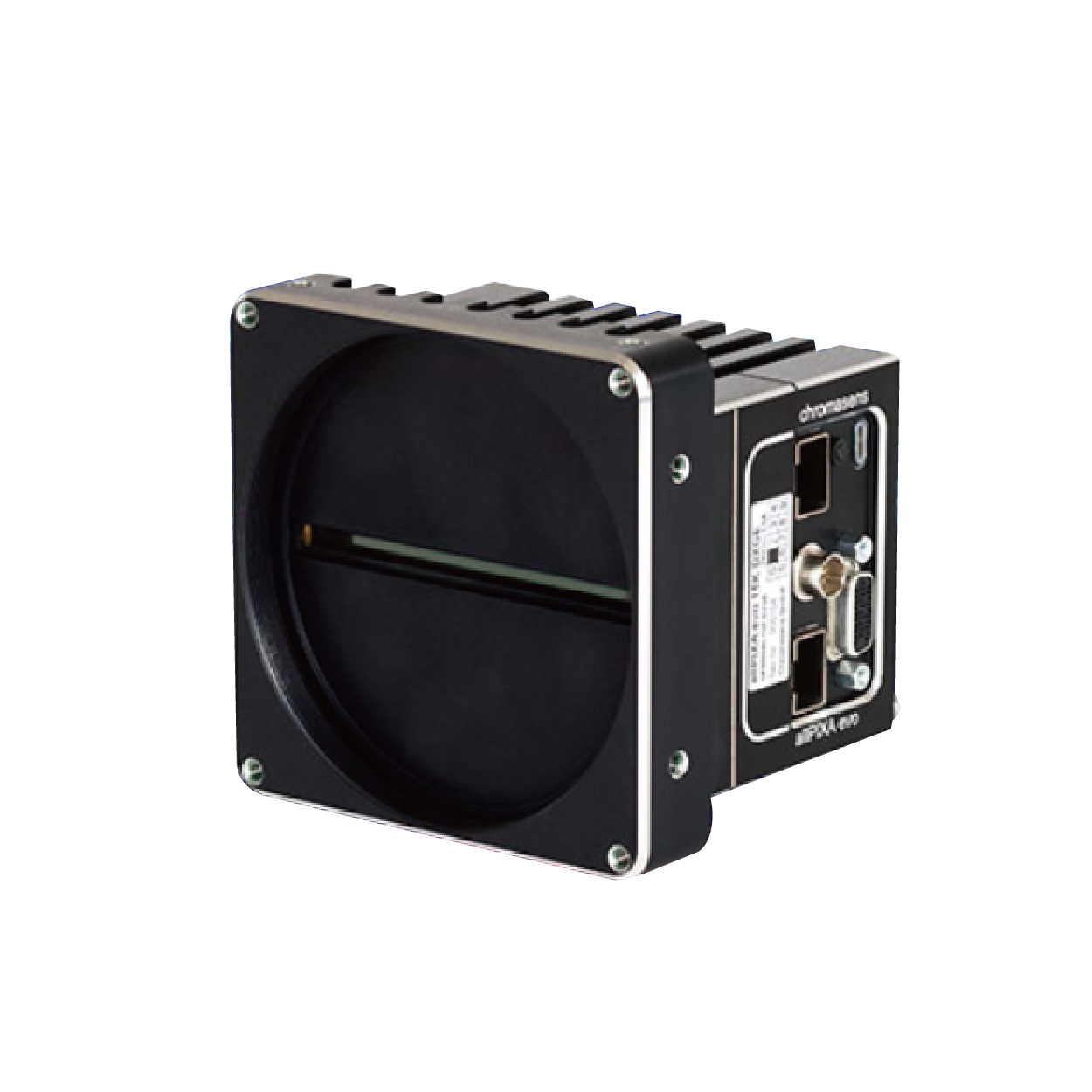

allPIXA evo 15k DXGE Mono X

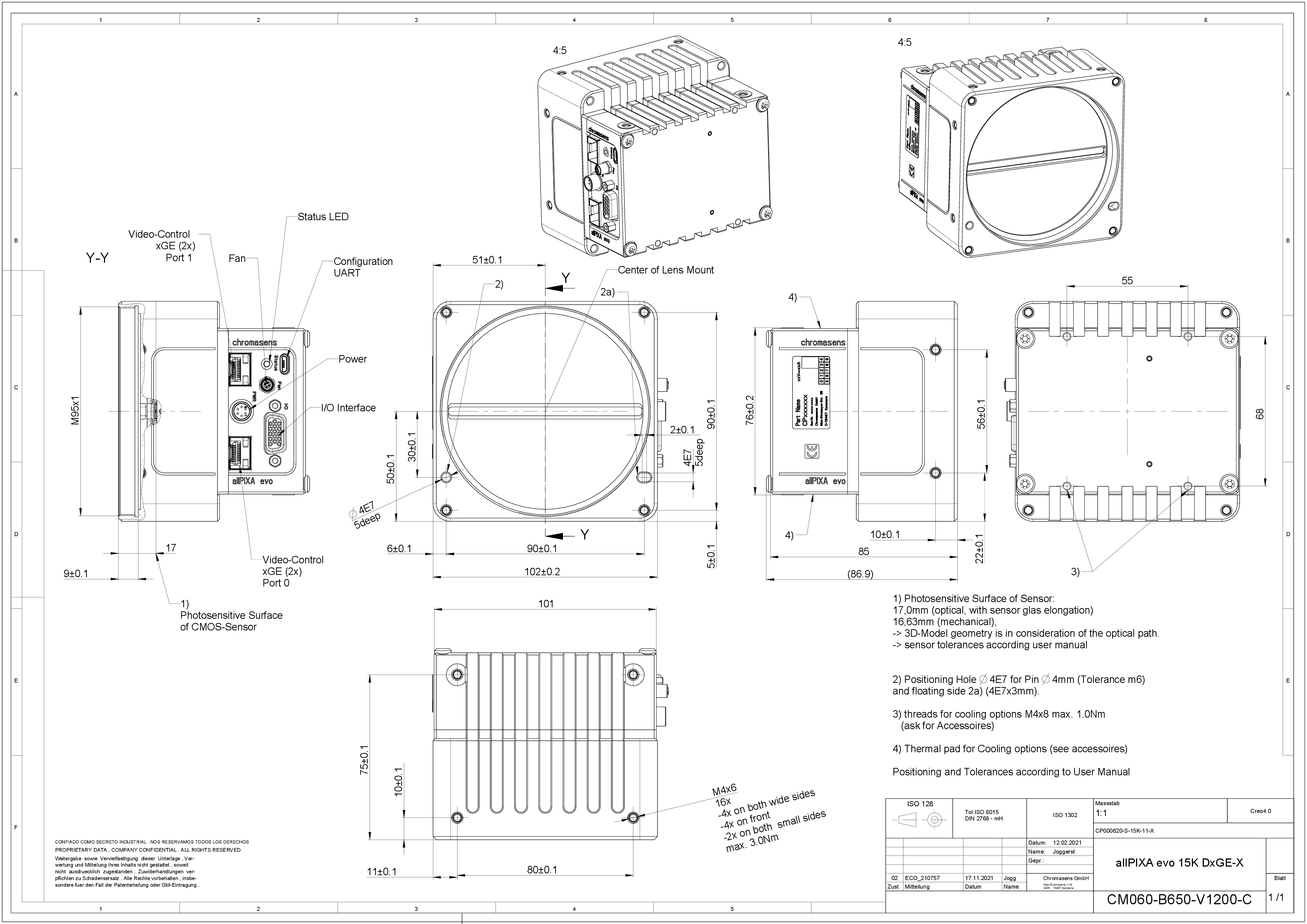

Lens mount : M95 x 1.0

With its Dual 15GigE interface, the allPIXA evo 15k mono line scan camera offers the best prerequisites for integration into machines and systems: Cable lengths more than 300 m (fiber optic) and high line rates up to 68.4 kHz at 15,360 pixel (mono).

Featured with line and frame trigger options, variable encoder input and color conversion possibilities the allPIXA evo is the best choice for all high speed and high-resolution web and print inspection applications. For easy integration, Chromasens provides an intuitive GUI and an SDK for camera control and high-speed image capture for Windows and Linux.

Features

• Tri- or quadlinear CMOS line sensor
• 15,360 x 3 pixels
• Pixel size 5.6 x 5.6 µm
• Interfaces 10GigE (SFP+)
• Line rates up to 100 kHz
• Output up to 4x 8/10/12 bit
• Mono mode
• Frame and line trigger options including an intelligent and flexibly adjustable encoder input
• Cable lengths up to 100 m with 10GigE (SFP+)
• SDK and graphical tool for setting camera parameters and image acquisition for Windows and Linux

Applications

• Flat panel display inspection
• Printed circuit board inspection
• High resolution document scanning
• Print inspection
• Surface inspection
• Web inspection
• Quality control
• Sorting processes
• High quality surface inspection
• General machine vision
