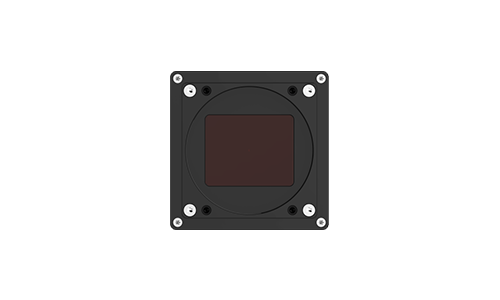

AX7A20MT250E

AX Series- 12MP 10GigE Mono

Specification

Brand

IRAYPLE

Model

Spectrum

Mono

Resolution

4096×3000

Pixel Size

3.45

Line/Frame Rate

68fps

Interface

10 GigE

Request Quote

INFORMATION

OVERVIEW

The AX7A20MT250E is equipped with a 10GigE high-speed transmission interface, enabling real-time delivery of high-resolution images, making it ideal for precision inspection and high-speed computing applications.

KEY FEATURES

10GigE interface, provides up to 10Gbps effective bandwidth;
Patented flatness adjustment scheme to prevent partial defocusing;
Excellent heat dissipation design, precise temperature control and constant temperature maintenance;
1GB on-board cache for data transmission or image resend;
Support Software Trigger/Hardware Trigger/Free Run mode;
Support user-defined ROI, horizontal mirror and vertical mirror;
Support ISP functions including Auto Exposure/Auto Gain/Auto BlackLevel/Gamma Correction/LUT etc.;
mono cameras support automatic contrast;
Support for FFC function to provide more uniform picture quality;
Support mutil-frame average function, up to 4 frames averaging;
Support fan speed adaptive function for setting the target temperature of the sensor;
Support DC 24V power supply;
Conform to GigE Vision protocol and GenICam standard;
Conform to CE, FCC, KC, RoHS;

SPECIFICATIONS

	AX7A20MT250E
Sensor	IMX253
Image Sensor	1.1″ CMOS
Shutter	Global
Resolution	4096 × 3000
Frame Rate	68 fps
Bit Depth	10 bit
Mono/Color	Color
Pixel Size	3.45 μm × 3.45 μm
Pixel	12 MP
S/N Ratio	39 dB
Dynamic Range	71.6 dB
Image Format	Mono8/10/10Packed
ROI	Support
X Flip	Support
Y Flip	Support
Gain	1~32
White Balance	Support
Gamma	From 0 to 4, support LUT
Exposure Time	1 μs ~ 15 s
Trigger Mode	Software Trigger/Hardware Trigger/Free Run Mode
SPC	Support
User Setting	Support two sets of user-defined configurations
Image Buffer	1 GB
Port	10GigE
GPIO Interface	3x Opto-isolated input, 3x Opto-isolated output, 1x RS232
Lens Mount	M58 x 0.75
Power Supply	DC 24V power supply via 12 Hirose interface
Power Consumption	24 V ≈ 18.7 W
Product Dimensions	72 mm x 72 mm x 78 mm (not including rear case connector)
Net Weight	583 g
Storage Temperature	-30℃ ~ 80℃
Operating Temperature	-30℃ ～ 50℃

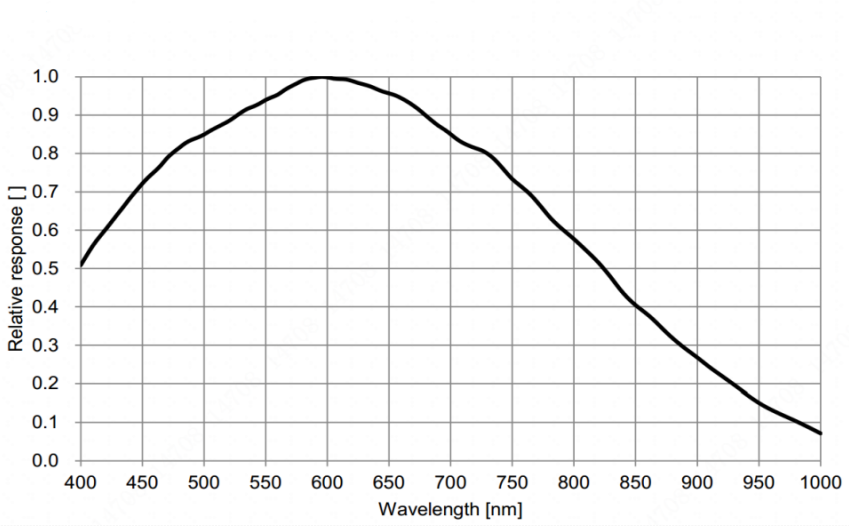

SPECTRALSENSITIVITY (MONO AND COLOR)
