AX7A20CT250E

AX Series- 12MP 10GigE Color
Specification
Brand
IRAYPLE
Model
AX
Spectrum
Color
Resolution
4096×3000
Pixel Size
3.45
Line/Frame Rate
68fps
Interface
10 GigE
Download
Request Quote
INFORMATION

OVERVIEW

The AX7A20CT250E is equipped with a 10GigE high-speed transmission interface, enabling real-time delivery of high-resolution images, making it ideal for precision inspection and high-speed computing applications.

KEY FEATURES

  • 10GigE interface, provides up to 10Gbps effective bandwidth;
  • A patented flatness mediation scheme to eliminate area defocusing;
  • Excellent heat dissipation design, precise temperature control and constant temperature maintenance;
  • 1GB on-board cache for data transmission or image resend;
  • Support Software Trigger/Hardware Trigger/Free Run mode;
  • Support user-defined ROI, horizontal mirror and vertical mirror;
  • Support ISP functions including Auto Exposure/Auto Gain/Auto BlackLevel/Gamma Correction/LUT etc.;
  • Color cameras support automatic white balance;
  • Support for FFC function to provide more uniform picture quality;
  • Support mutil-frame average function, up to 4 frames averaging;
  • Support fan speed adaptive function for setting the target temperature of the sensor;
  • Support DC 24V power supply;
  • Conform to GigE Vision protocol and GenICam standard;
  • Conform to CE, FCC, KC, RoHS;

SPECIFICATIONS

AX7A20CT250E
Sensor IMX253
Image Sensor 1.1″ CMOS
Shutter Global
Resolution 4096 × 3000
Frame Rate 68 fps
Bit Depth 10 bit
Mono/Color Color
Pixel Size 3.45 μm × 3.45 μm
Pixel 12 MP
S/N Ratio 39 dB
Dynamic Range 71.6 dB
Image Format BayerRG8/10/10Packed, BayerGB8/10/10Packed
ROI Support
X Flip Support
Y Flip Support
Gain 1~32
White Balance Support
Gamma From 0 to 4, support LUT
Exposure Time 1 μs ~ 15 s
Trigger Mode Software Trigger/Hardware Trigger/Free Run Mode
SPC Support
User Setting Support two sets of user-defined configurations
Image Buffer 1 GB
Port 10GigE
GPIO Interface 3x Opto-isolated input, 3x Opto-isolated output, 1x RS232
Lens Mount M58 x 0.75
Power Supply DC 24V power supply via 12 Hirose interface
Power Consumption 24 V ≈ 18.7 W
Product Dimensions 72 mm x 72 mm x 78 mm (not including rear case connector)
Net Weight 583 g
Storage Temperature -30℃ ~ 80℃
Operating Temperature  -30℃ ～ 50℃

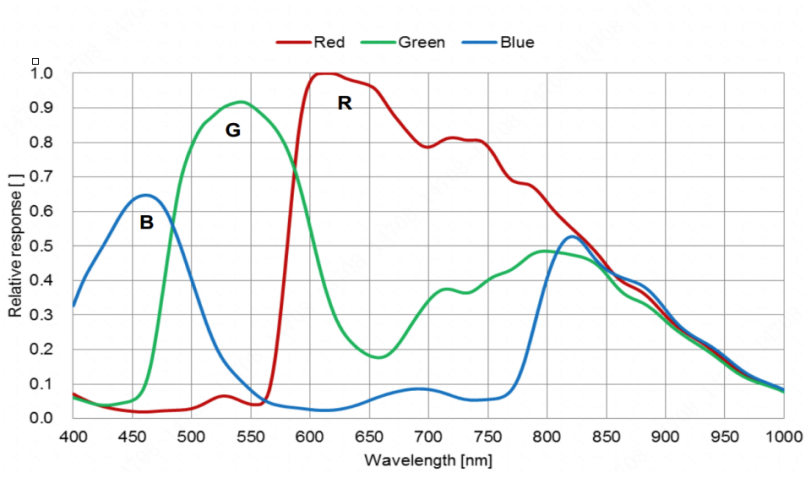

SPECTRALSENSITIVITY (MONO AND COLOR)

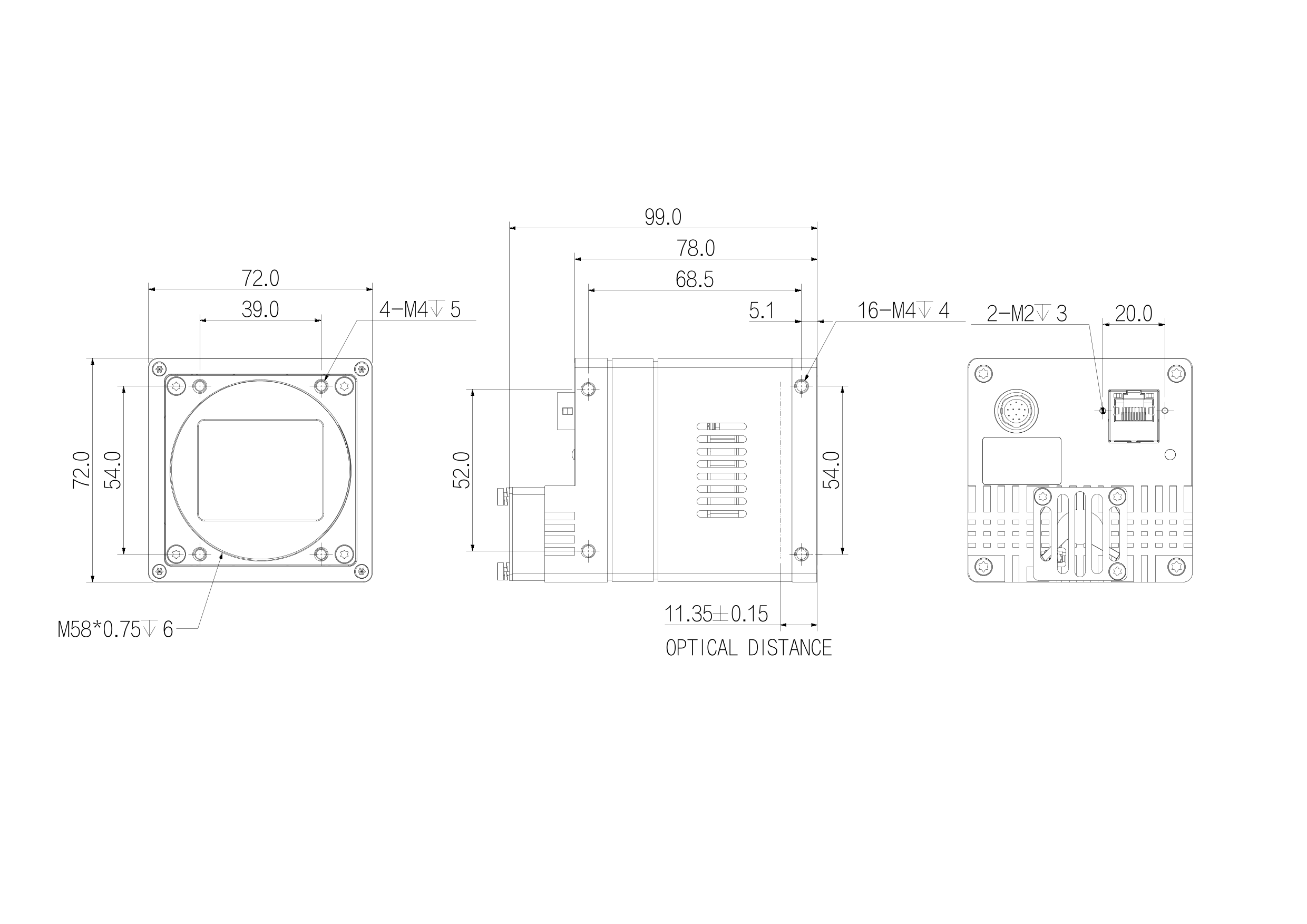

DRAWINGS
