The AX5B17MP050E is a high-end industrial camera equipped with the CoaXPress CXP-12 high-speed interface, combining high-bandwidth transmission, diverse image processing functions and a stable power supply design. It is tailored for high-precision, high-speed image capture applications.
| AX5B17MP050E | |
| Sensor | GSPRINT4521 |
| Image Sensor | 23.0 mm × 18.4 mm CMOS |
| Shutter | Global |
| Resolution | 5120 × 4096 |
| Frame Rate | 219 fps |
| Bit Depth | 12 bit |
| Mono/Color | Mono |
| Pixel Size | 4.5 μm × 4.5 μm |
| Pixel | 21 MP |
| S/N Ratio | 44 dB |
| Dynamic Range | 69 dB |
| Image Format | Mono8/10/12 |
| ROI | Support |
| X Flip | No Support |
| Y Flip | Support |
| Gain | Analog gain: 1× ~ 8×, Digital gain: 1× ~ 100× |
| Exposure Time | 4 μs ~ 5 s |
| Trigger Mode | Software Trigger/Hardware Trigger/Free Run Mode |
| SPC | Support |
| User Setting | Support two sets of user-defined configurations |
| Port | CXP-12 |
| GPIO Interface | 3x Opto-isolated input, 3x Opto-isolated output;1x RS232 |
| Lens Mount | M58 × 0.75 |
| Power Supply | DC 24V power supply via 12 Hirose interface，support PoCXP |
| Power Consumption | 24 V ≈ 34.56 W |

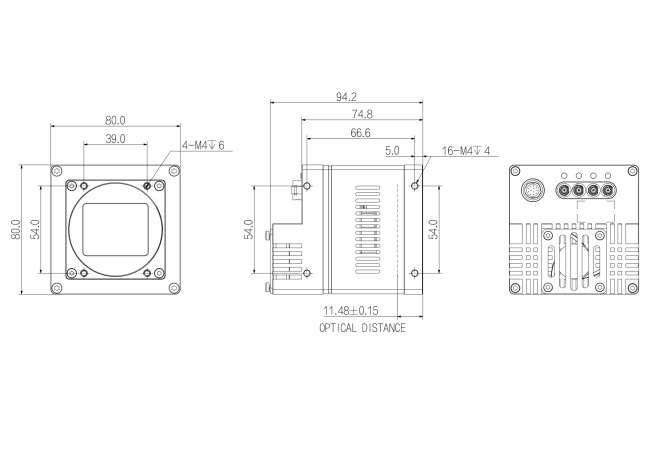

| Product Dimensions | 80 mm × 80 mm × 75 mm (Non including rear case connector) |
| Net Weight | 775 g |
| Storage Temperature | -30℃ ~ 80℃ |
| Operating Temperature | -30℃ ~ 50℃ |
