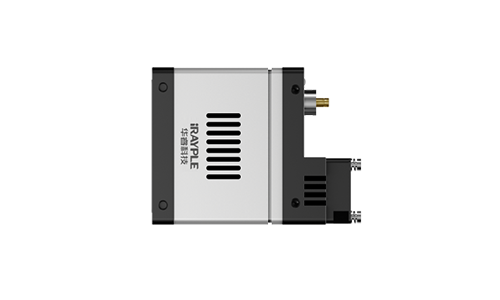

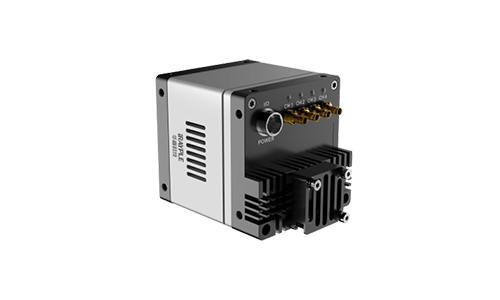

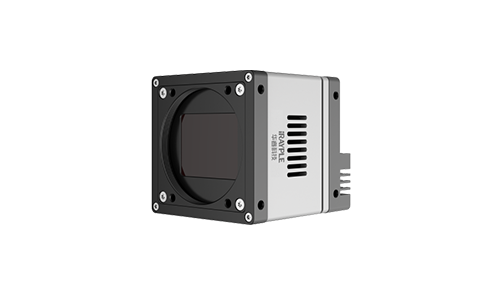

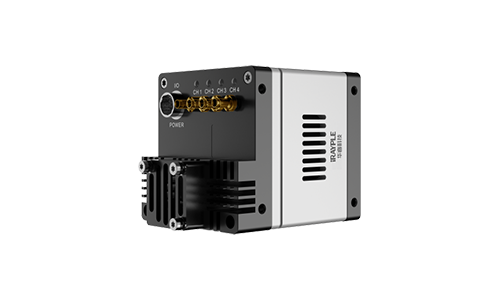

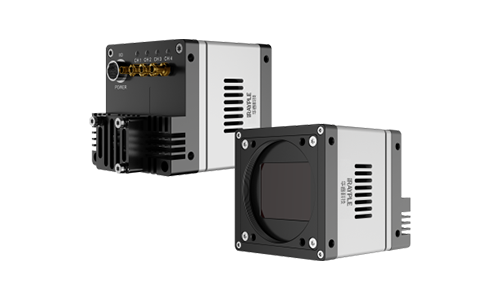

The A9B57CX250E is a high-end industrial camera equipped with the CoaXPress CXP-6 high-speed interface, combining high-bandwidth transmission, diverse image processing functions and a stable power supply design. It is tailored for high-precision, high-speed image capture applications.
| A9B57CX250 | |
| Sensor | GMAX0505 |
| Image Sensor | 1.1″CMOS |
| Shutter | Global |
| Resolution | 5120 × 5120 |
| Frame Rate | 90 fps |
| Bit Depth | 10 bit |
| Mono/Color | Color |
| Pixel Size | 2.5 μm × 2.5 μm |
| Pixel | 25MP |
| S/N Ratio | 36dB |
| Dynamic Range | 63dB |
| Image Format | BayerGR8 /BayerGR10 /BayerGR12 /
BayerRG8 /BayerRG10/BayerRG12/ BayerGB8/BayerGB10/BayerGB12/ BayerBG8/BayerBG10/BayerBG12 |
| ROI | Support |
| X Flip | Support |
| Y Flip | Support |
| Gain | 1~100 |
| White Balance | Support |
| Exposure Time | 25μS~5S |
| Trigger Mode | Software Trigger/Hardware Trigger/Free Run Mode |
| SPC | Support |
| User Setting | Support two sets of user-defined configurations |
| Image Buffer | 2GB data cache |

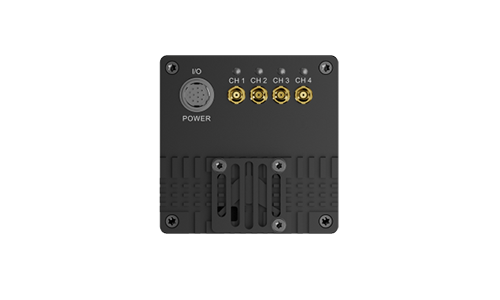

| Port | CXP-6 |
| GPIO Interface | 3x Opto-isolated input, 3x Opto-isolated output;1x RS232 |

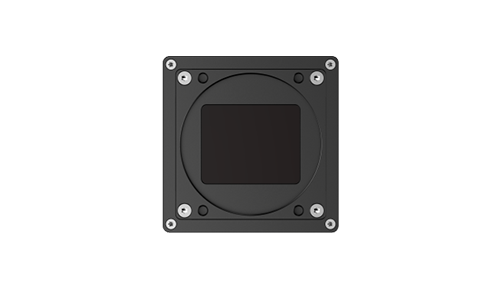

| Lens Mount | M58 x 0.75 |
| Power Supply | DC 24V power supply via 12-pin Hirose interface; |
| Power Consumption | 24V≈13W |
| Product Dimensions | 72 mm × 72 mm × 70 mm (not including rear case connector) |
| Net Weight | 720 g |
| Storage Temperature | -30℃ ~ 80℃ |
| Operating Temperature | -30℃ ~ 50℃ |
