BGA Inspection system – 3DPIXA

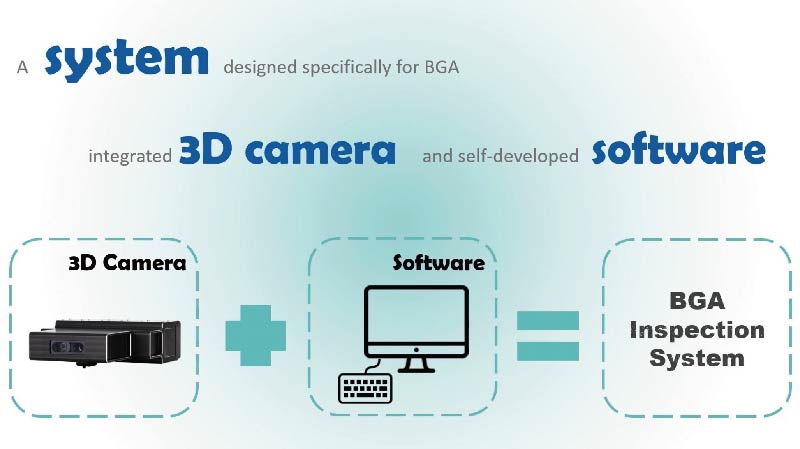

A system designed specifically for BGA integrated 3D camera and self-developed software.
①3D Camera ②Software ③BGA Inspection System
BGA Inspection
We develope an online real-time system for 3D & 2D inspection.
Customers can also recheck 3D & 2D detail information of each BGA ball offline including 3D model.
Advantage
①Easily integrated into machine with handler or conveyor.
②High speed with high accuracy:106mm/sec, Zheight resolution 0.55um.
③2D &3D inspection simutaneously.
3D Line Scan Camera 3DPIXA dual 5µm HR
SPEC:
Optical resolution (µm/pixel) 5
Field of view (mm) 35
Number of pixel 7000
Height resolution (µm)* 0.55
Height range (mm)** 0.5
Free working distance (mm) 77.9
Maximum speed (mm/s) 106
Line frequency (kHz) 21.2
