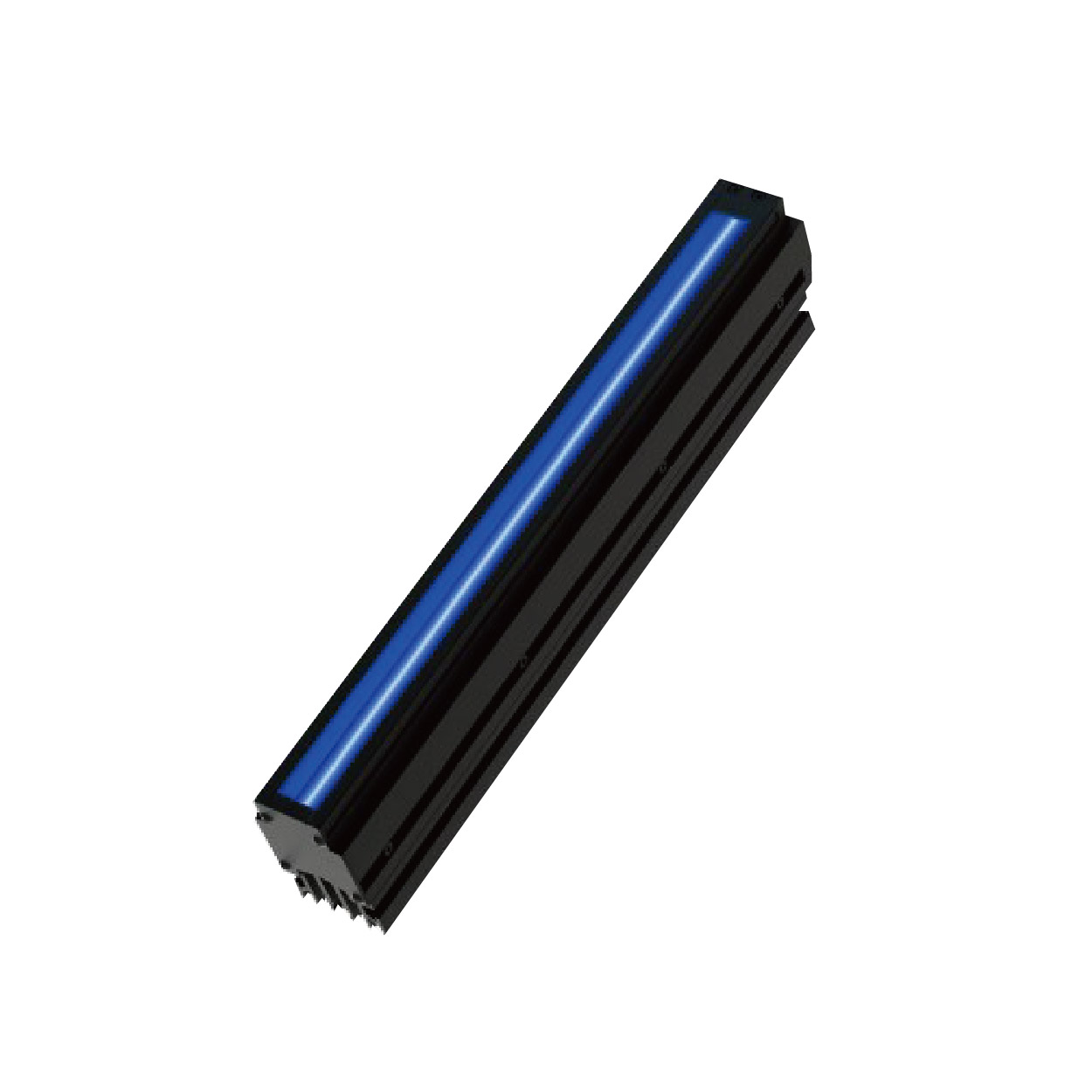

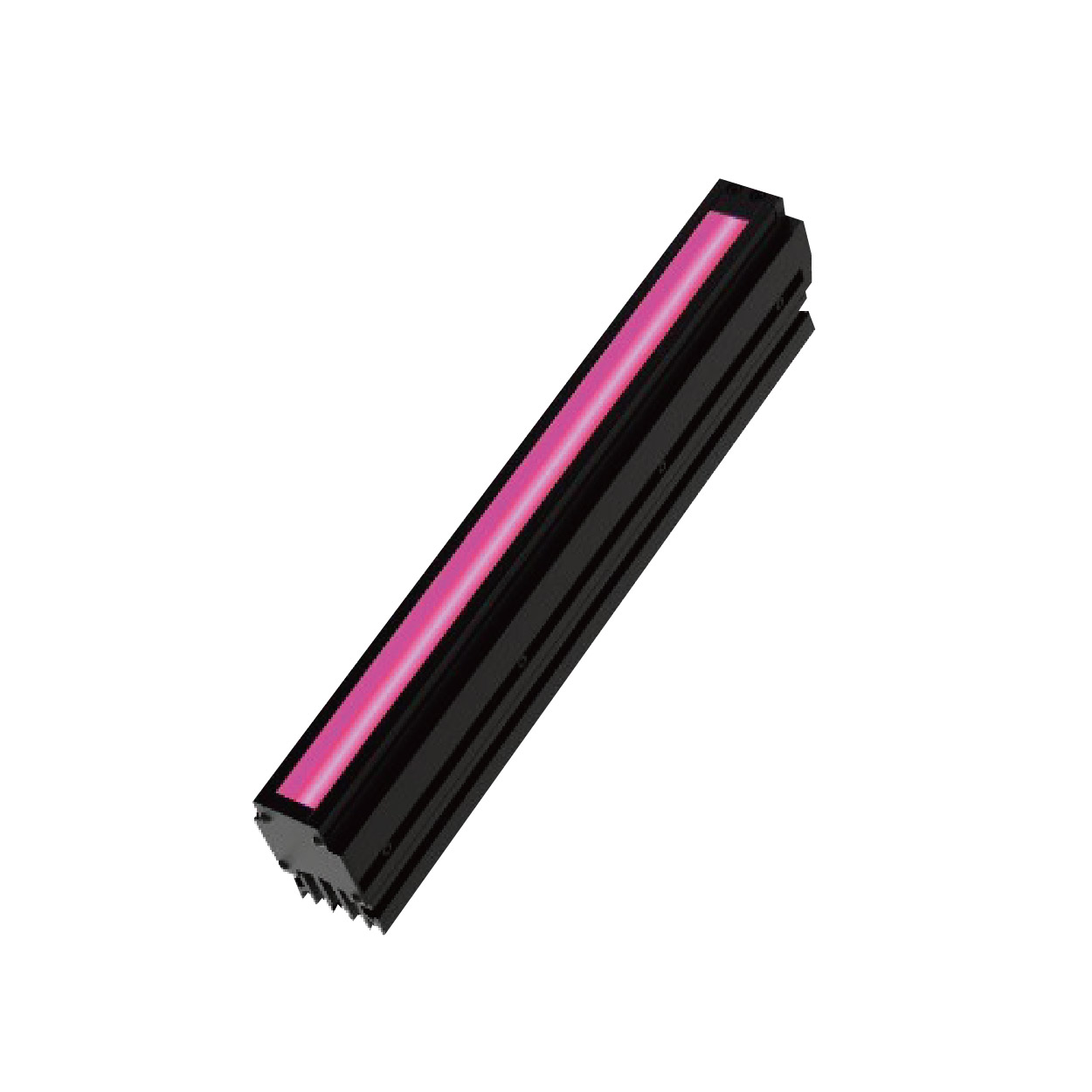

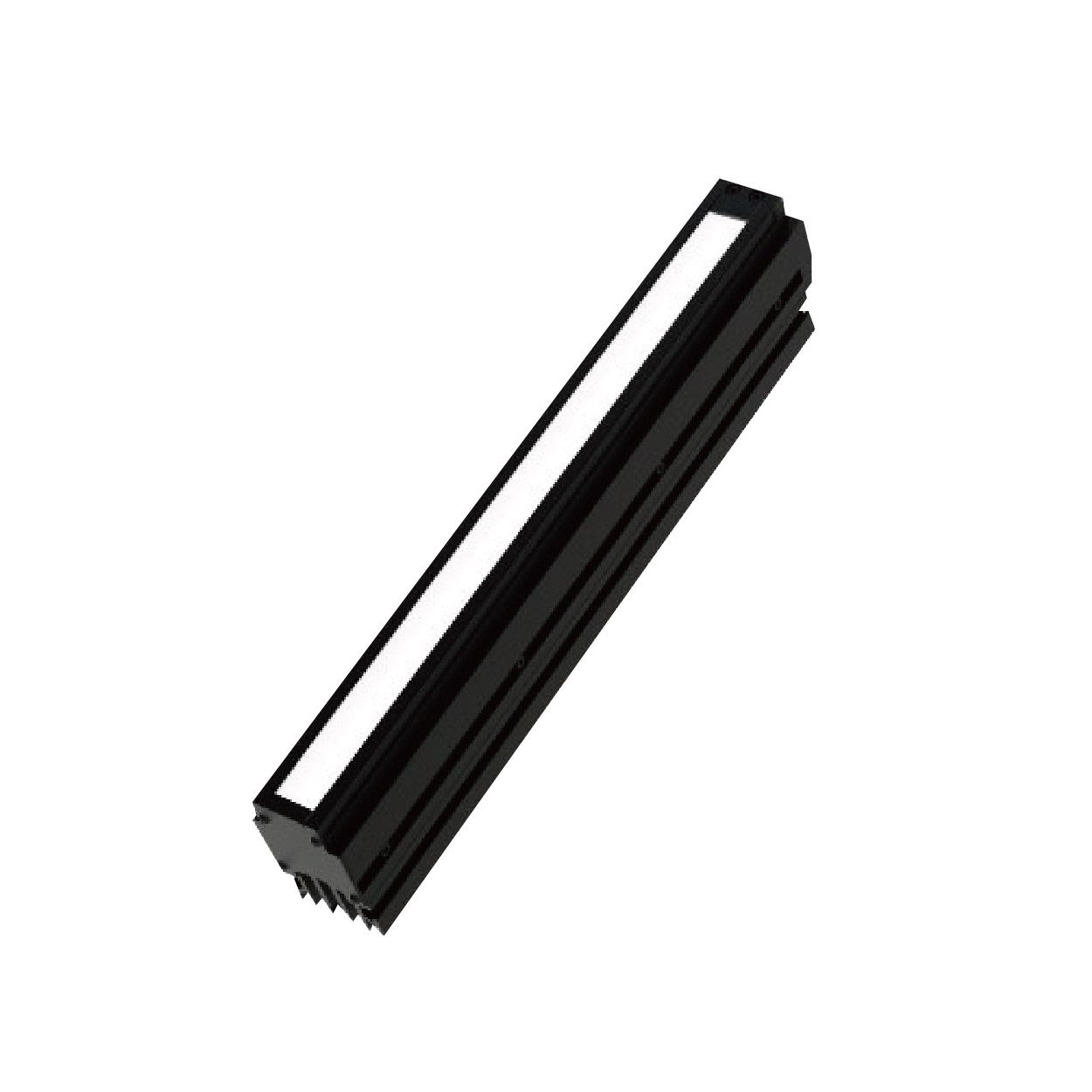

The industry’s highest class light intensity with natural air-cooling.

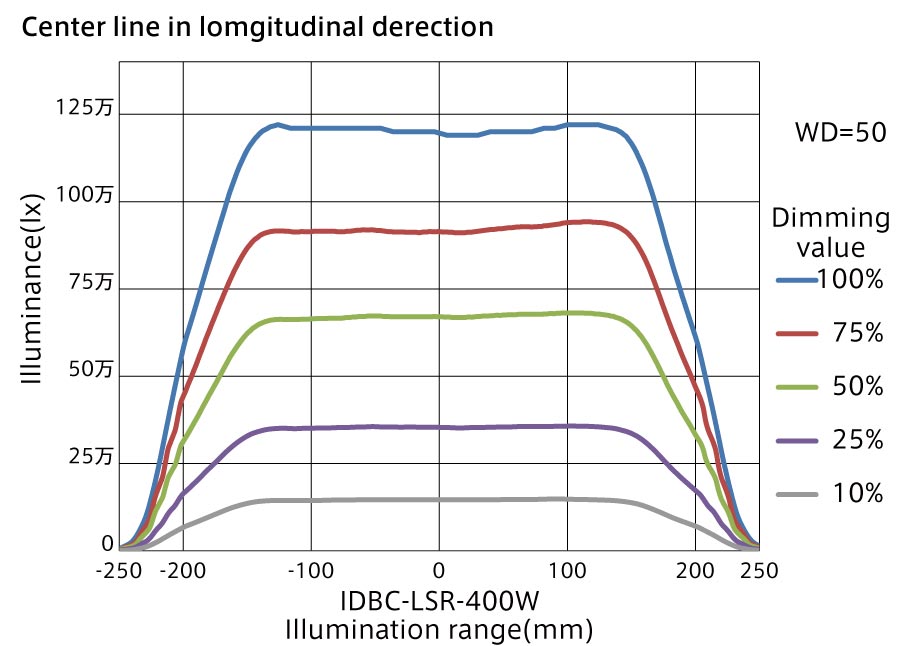

Two types are available: a high-brightness type (IDBC-LSR series) boasting 1.2 million lx and a highly uniform type (IDBC-LSR-S series: 900,000 lx) that diffuses light widely.

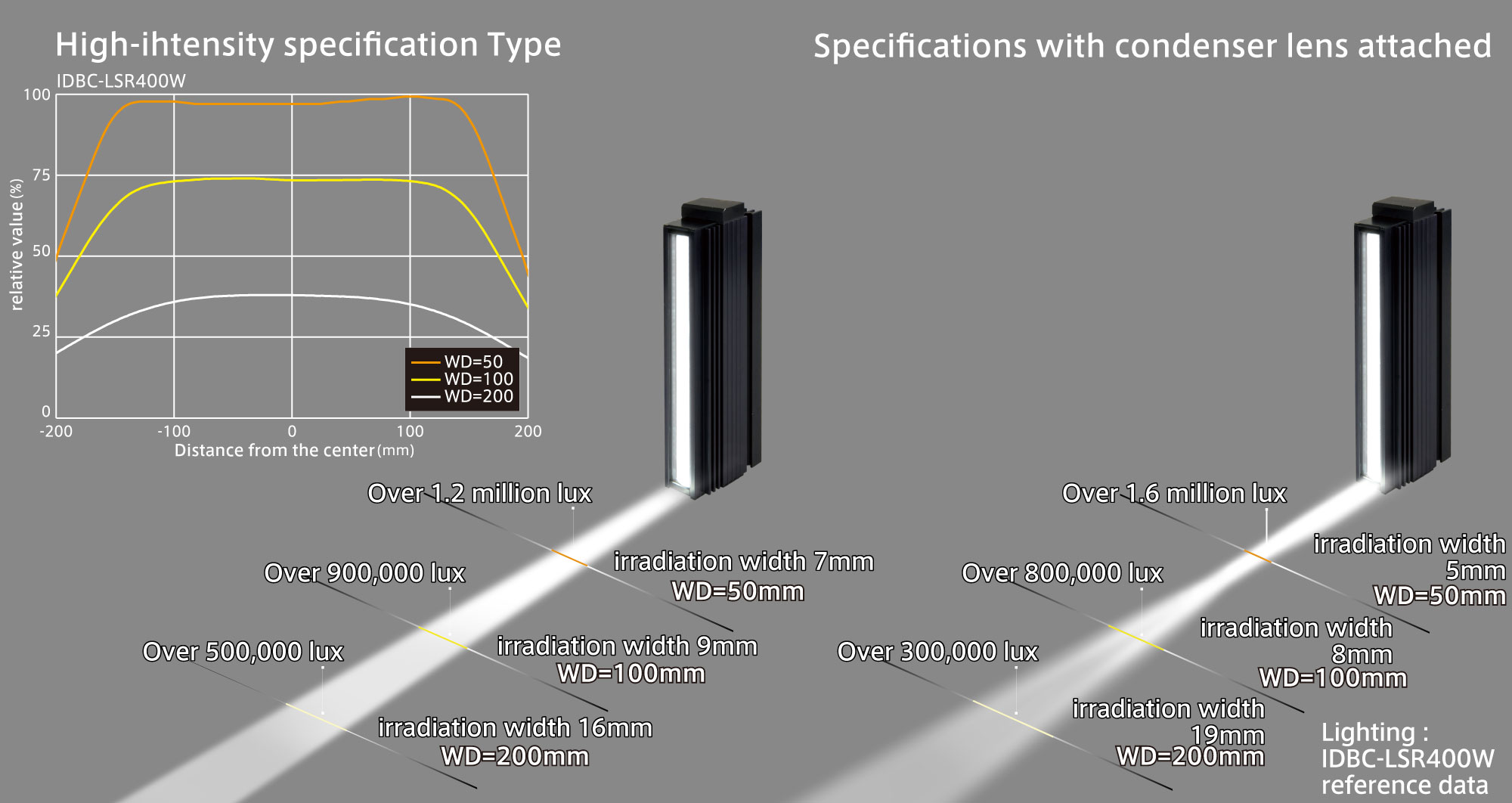

Both the high luminance type and the high uniformity type can be selected with a condenser lens (-IL specification) to further increase the light intensity.
・High luminance type: IDBC-LSR-IL series ⇒1.6 million lx (WD=50mm)
・High uniformity type: IDBC-LSR-S-IL series ⇒ 1.2 million lx (WD50mm)
Note: The illuminance values shown are for reference only and do not guarantee the product.

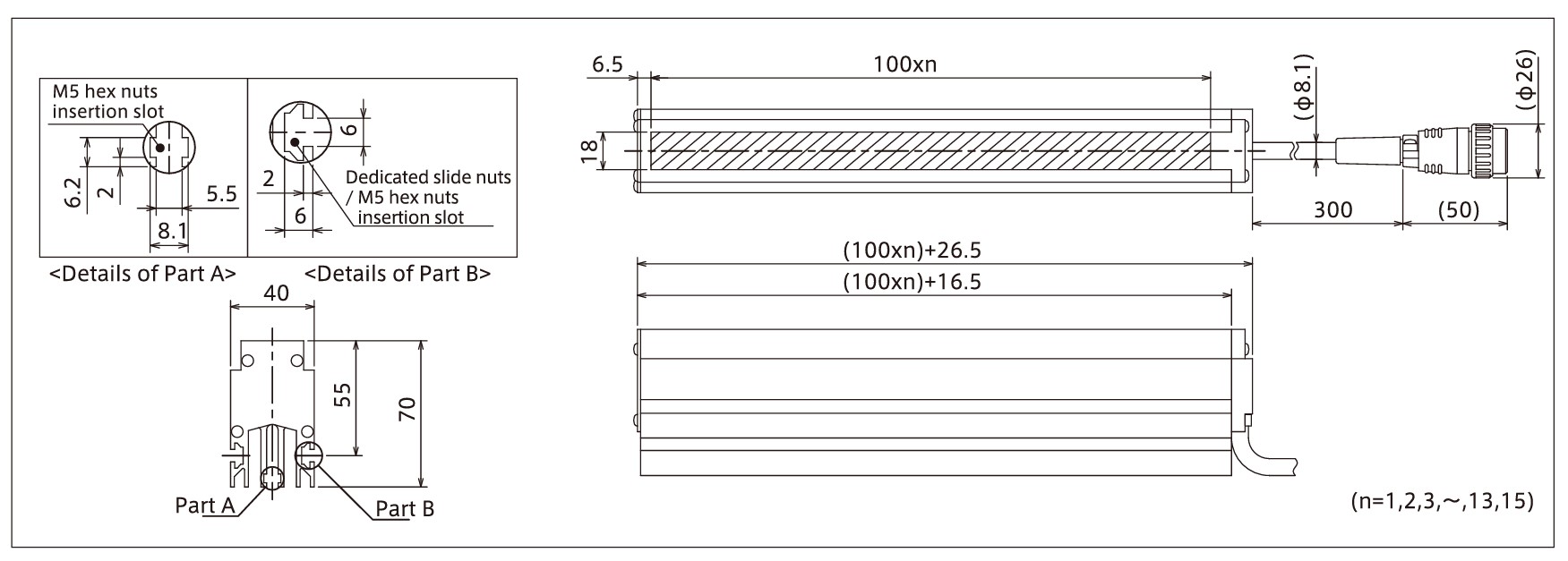

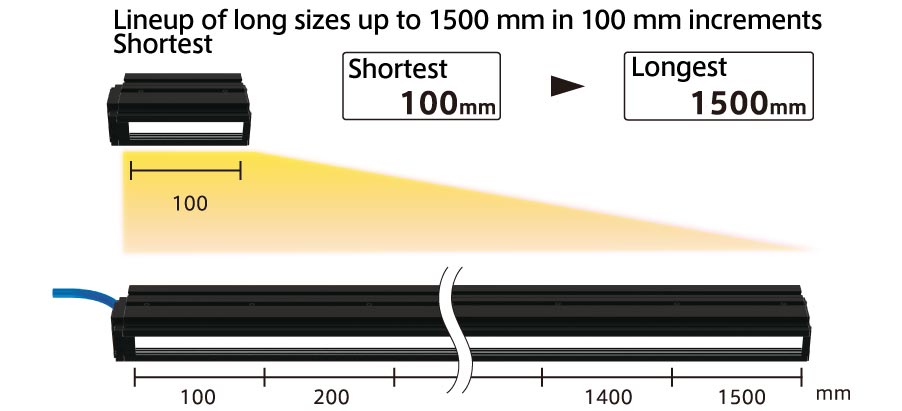

Sizes are available in 100mm increments up to 1,500mm for the high luminance type/high uniformity type.
The lineup includes sizes up to 1,000 mm in 100 mm increments for both the high luminance type and the high uniformity type with the condenser lens installed.

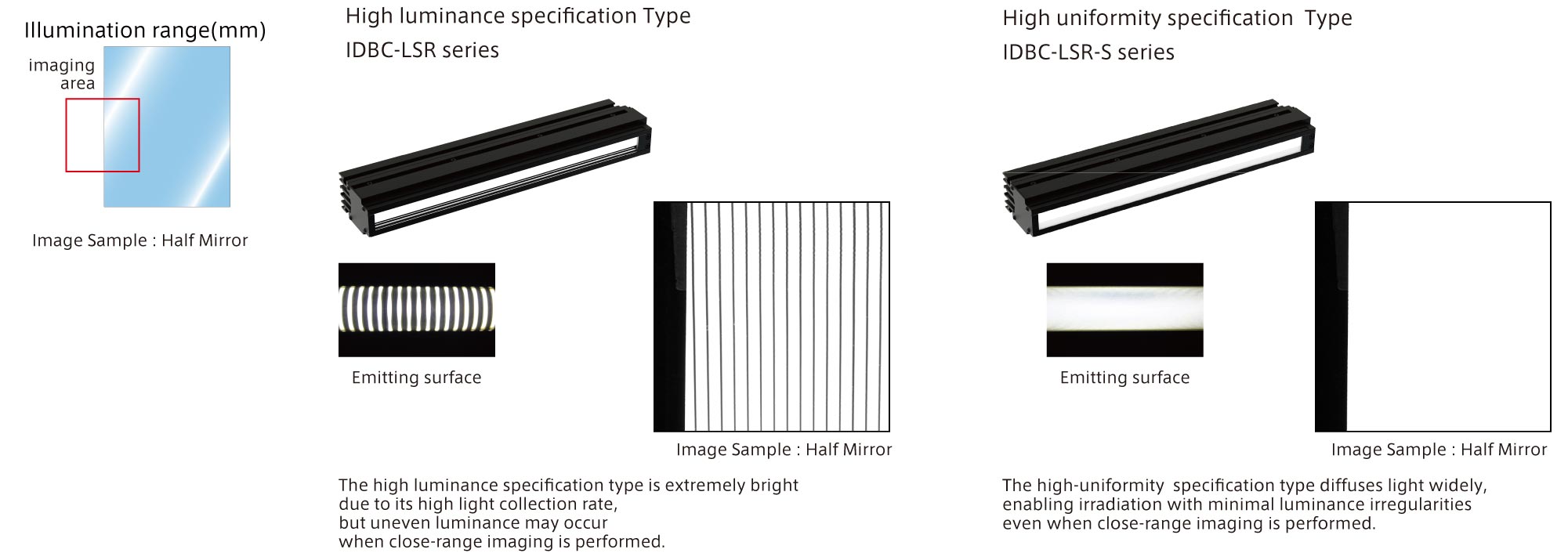

Due to the characteristics of the element/lens, uneven luminance may occur in the high-luminance type when imaging at short distances, but the high uniformity type can suppress uneven luminance by diffusing the light widely.
More than 1.5 times brighter than the conventional IDBB-LSRC series in white.
The concentrator type provides 1.2 to 1.3 times the brightness for each color.

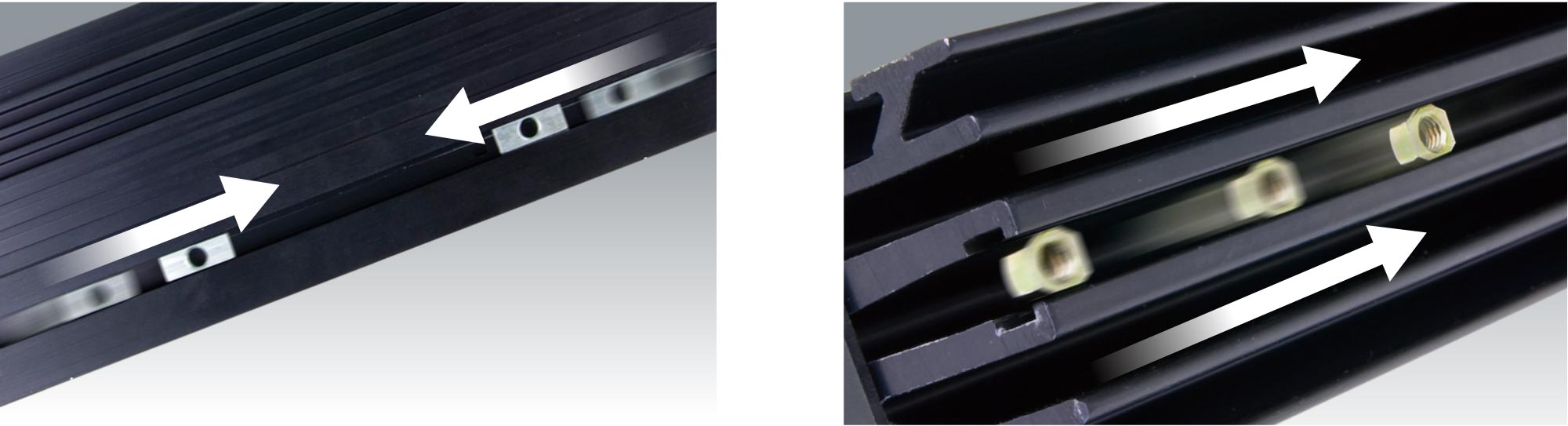

Compatible with dedicated slide nut and M5 hexagonal nut, making it easy to install in accordance with the operating environment.
