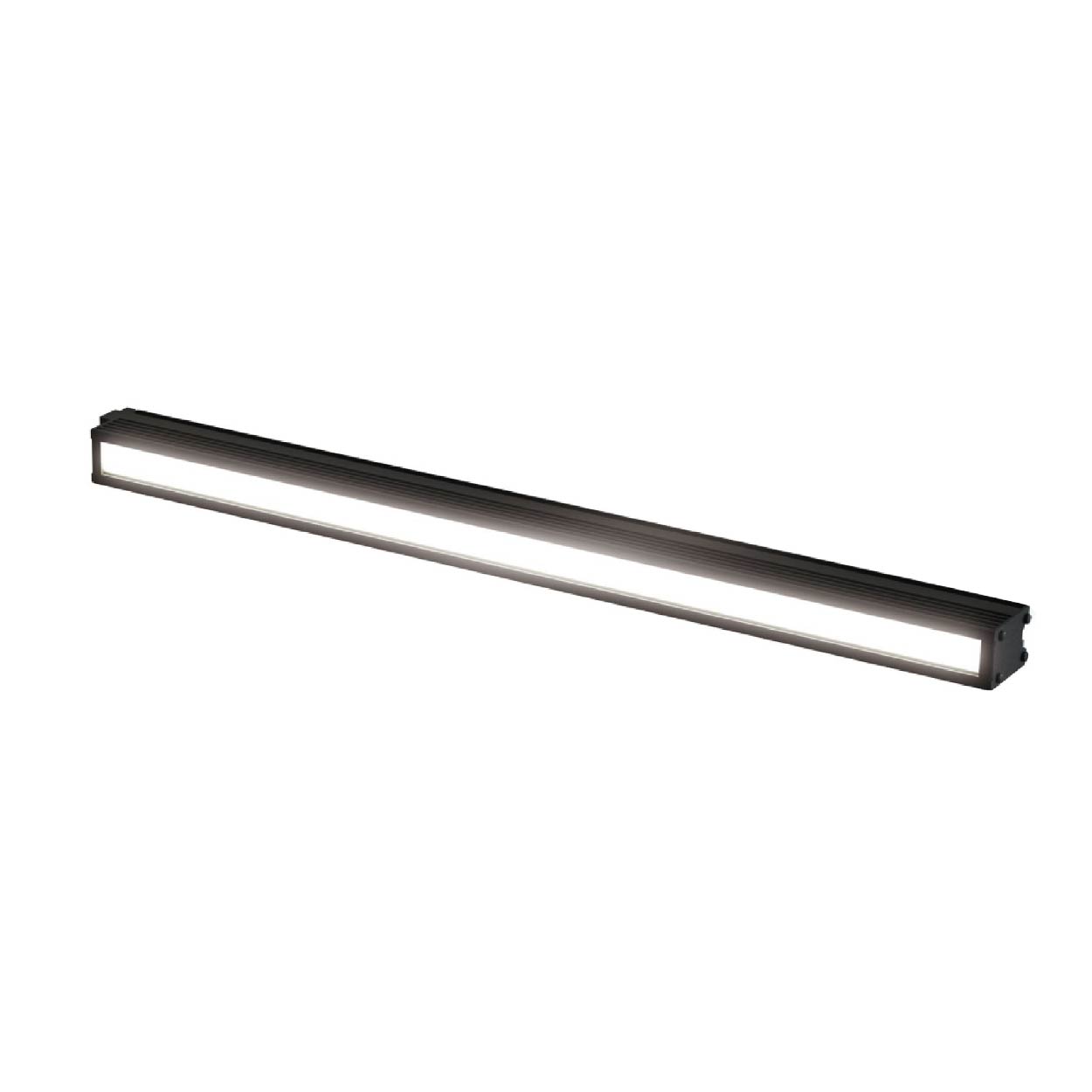

IDBB-LSRC Series

Compact line lighting downsizing its size, power consumption, and mass.

Achieving compactness with high intensity and uniformity.
With a compact design on the short side of the housing, the light emitting surface is widened, which makes irradiation at an angle closer to the optical axis possible. At the same time, the weight is reduced to about 200g.
Easy wiring with an improved cable line. Inspection lines can be constructed in a narrower installation environment.

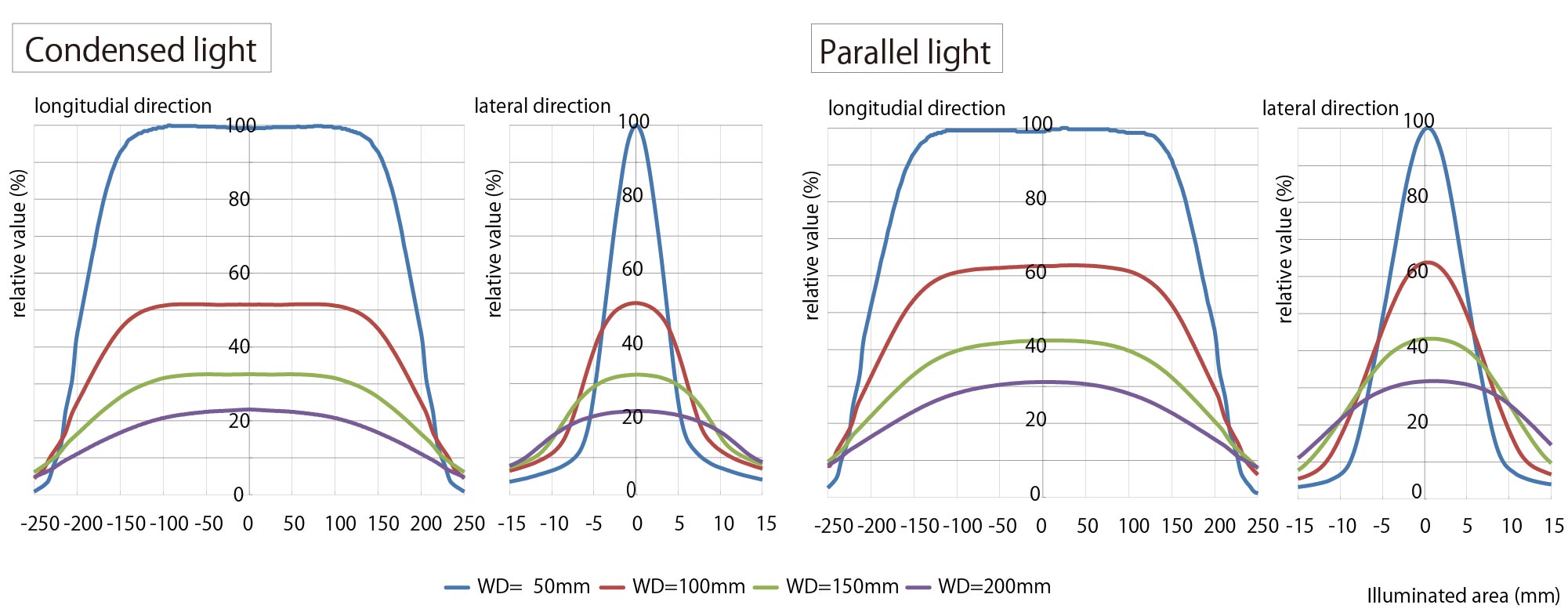

High intensity and uniformity.

Compact design

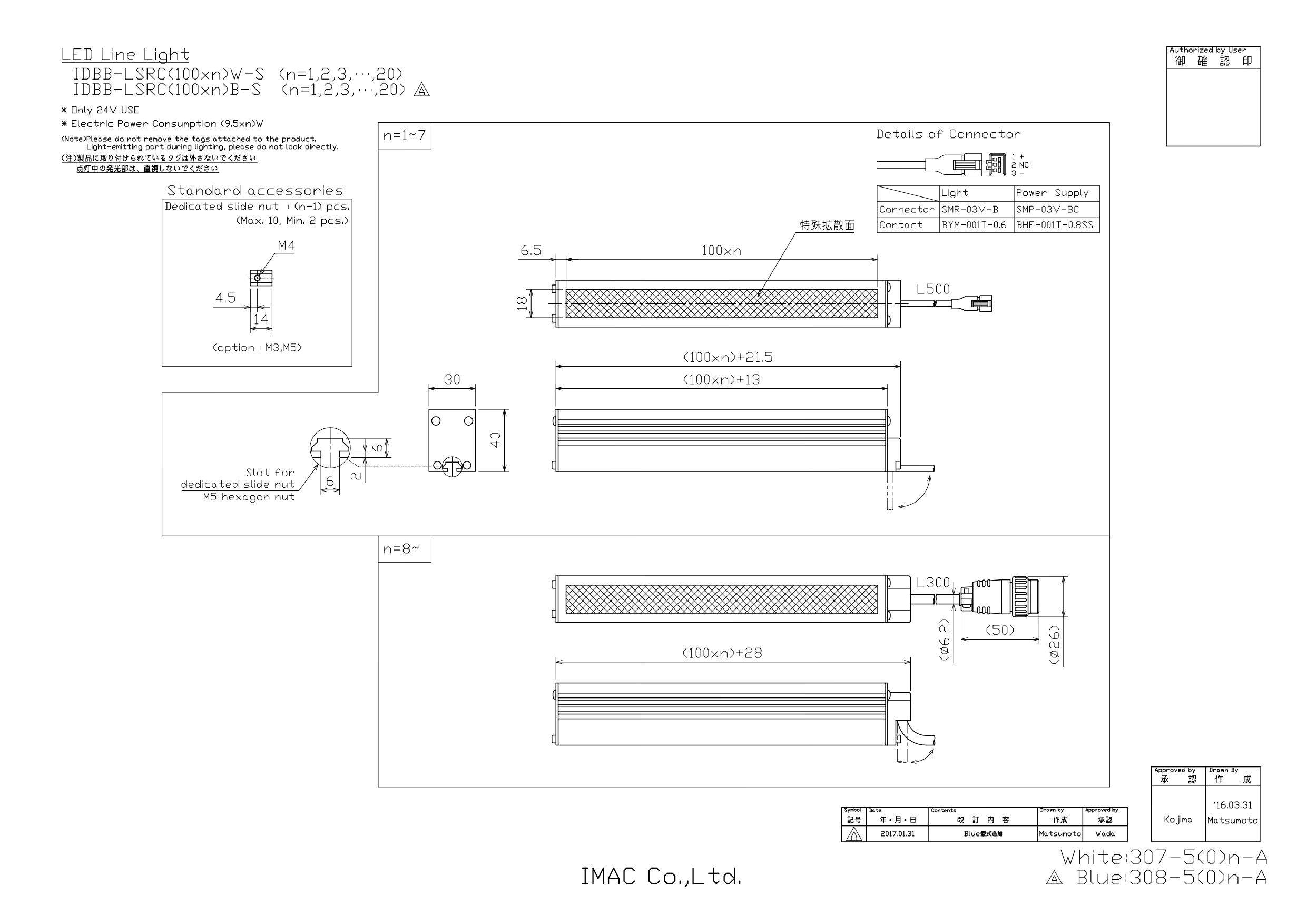

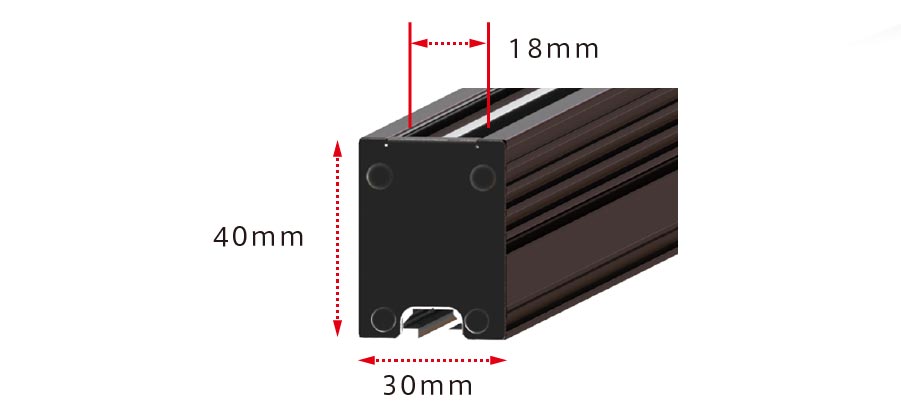

In response to requests for downsizing in production inspection lines, etc., while ensuring a light emission width (short side) of 18mm, the size is reduced to a short side width of 30mm and a depth of 40mm.

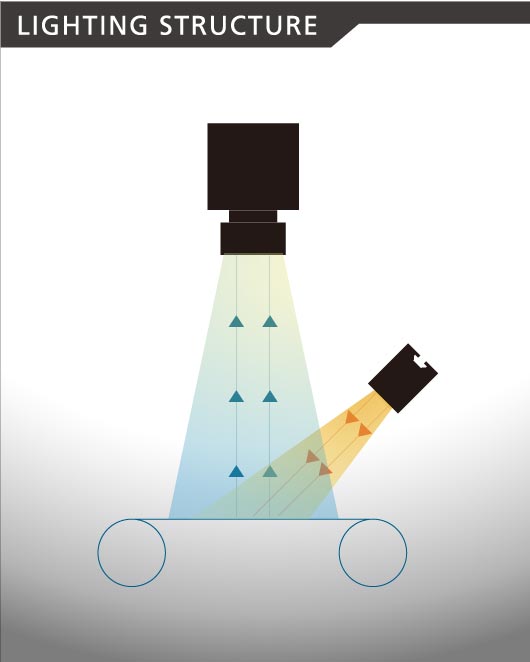

With a compact design on the short side of the housing, the light emitting surface is widened, which makes irradiation at an angle closer to the optical axis possible.
The weight of the lighting is also reduced to about 200g, which reduces the burden on the lighting support frame.
Easy wiring with improved cable line. Inspection lines can be constructed in a narrower installation environment.
