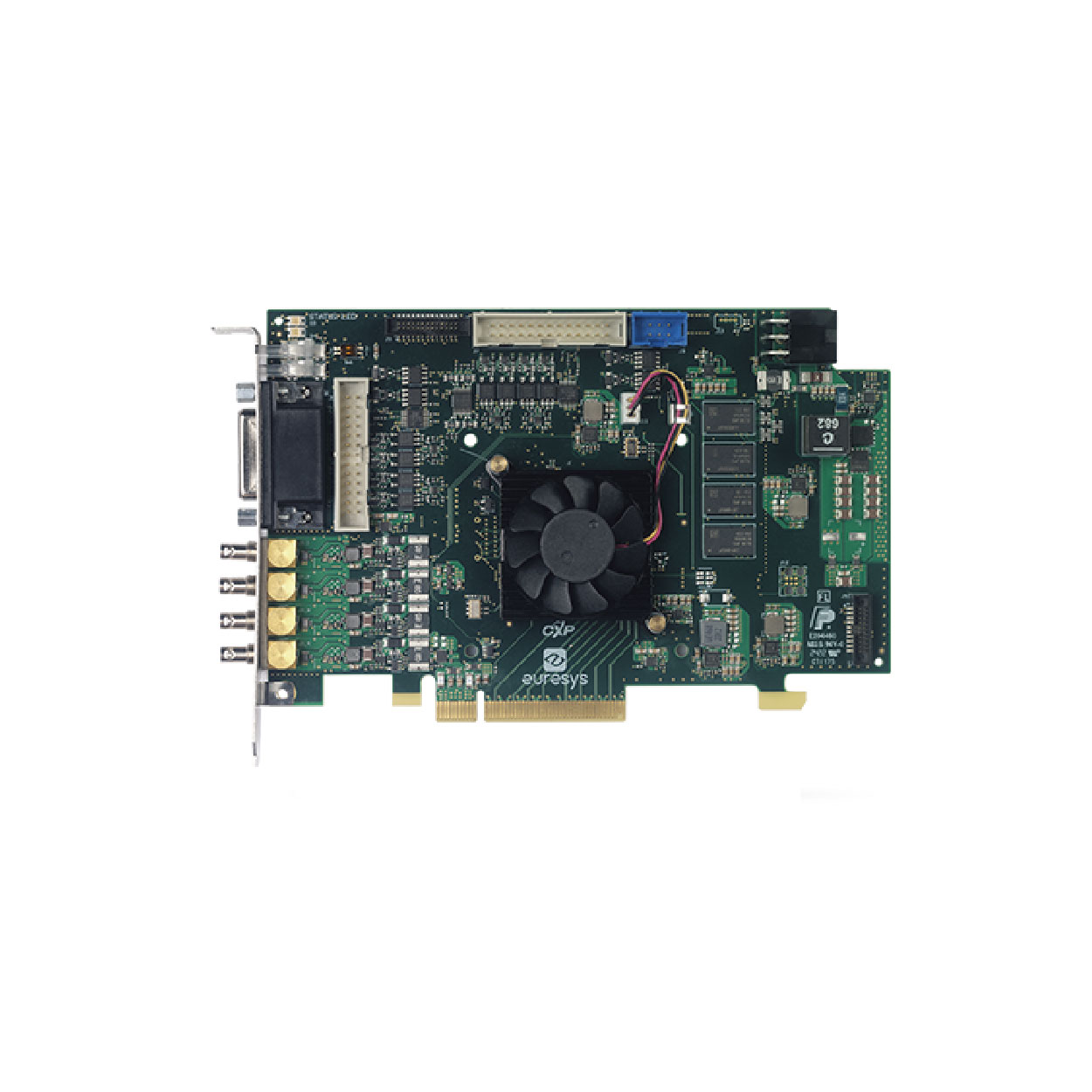

Coaxlink Quad CXP-12 Value

Four-connection CoaXPress CXP-12 frame grabber

Device Features

• Four CoaXPress CXP-12 connections: 5,000 MB/s camera bandwidth
• PCIe 3.0 (Gen 3) x8 bus: 6,700 MB/s bus bandwidth
• Feature-rich set of 20 digital I/O lines
• Extensive camera control functions
• Memento Event Logging Tool

• Standard profile, half length, 8-lane PCI Express card
• Cooling method : Air cooling, fan-cooled heatsink
• Mounting :For insertion in a standard height, 8-lane or higher, PCI Express card slot
• Connectors –
• ‘A’, ‘B’, ‘C’, ‘D’ on bracket:
  • 4x Micro-BNC female connectors
  • CoaXPress host interface
• ‘EXTERNAL I/O’ on bracket:
  • 26-pin 3-row high-density female sub-D connector
  • I/O lines and power output
• ‘INTERNAL I/O 1’ and ‘INTERNAL I/O 2’ on PCB:
  • 2x 26-pin 2-row 0.1″ pitch pin header with shrouding
  • I/O lines and power output
• ‘I/O EXTENSION’ on PCB:
  • 26-pin 2-row 0.05″ pitch pin header with shrouding
  • I/O extension lines and power output
• ‘AUXILIARY POWER INPUT’ on module:
  • 6-pin PEG power socket
  • 12 VDC power input for PoCXP camera(s) and I/O power
• ‘C2C-LINK’ on module:
  • 6-pin 2-row 0.1″ pitch pin header
  • Card to card link
• Dimensions : PCB L X H: 167.65 mm x 111.15 mm, 6.6 in x 4.38 in
• Standard : PCI Express 3.0
• Link width : 8 lanes /2 lanes or 4 lanes with reduced performance
• Link speed : 8.0 GT/s (PCIe 3.0)/5.0 GT/s (PCIe 2.0) with reduced performance
• Maximum payload size : 512 bytes
• DMA : 32- and 64-bit
• Peak delivery bandwidth : 7,800 MB/s
• Effective (sustained) delivery bandwidth : 6,700 MB/s (Host PC motherboard dependent)
• Power consumption : Typ. 16.7 W (3.3 W @ +3.3V,13.4 W @ +12V), excluding camera and I/O power output
