VCLx

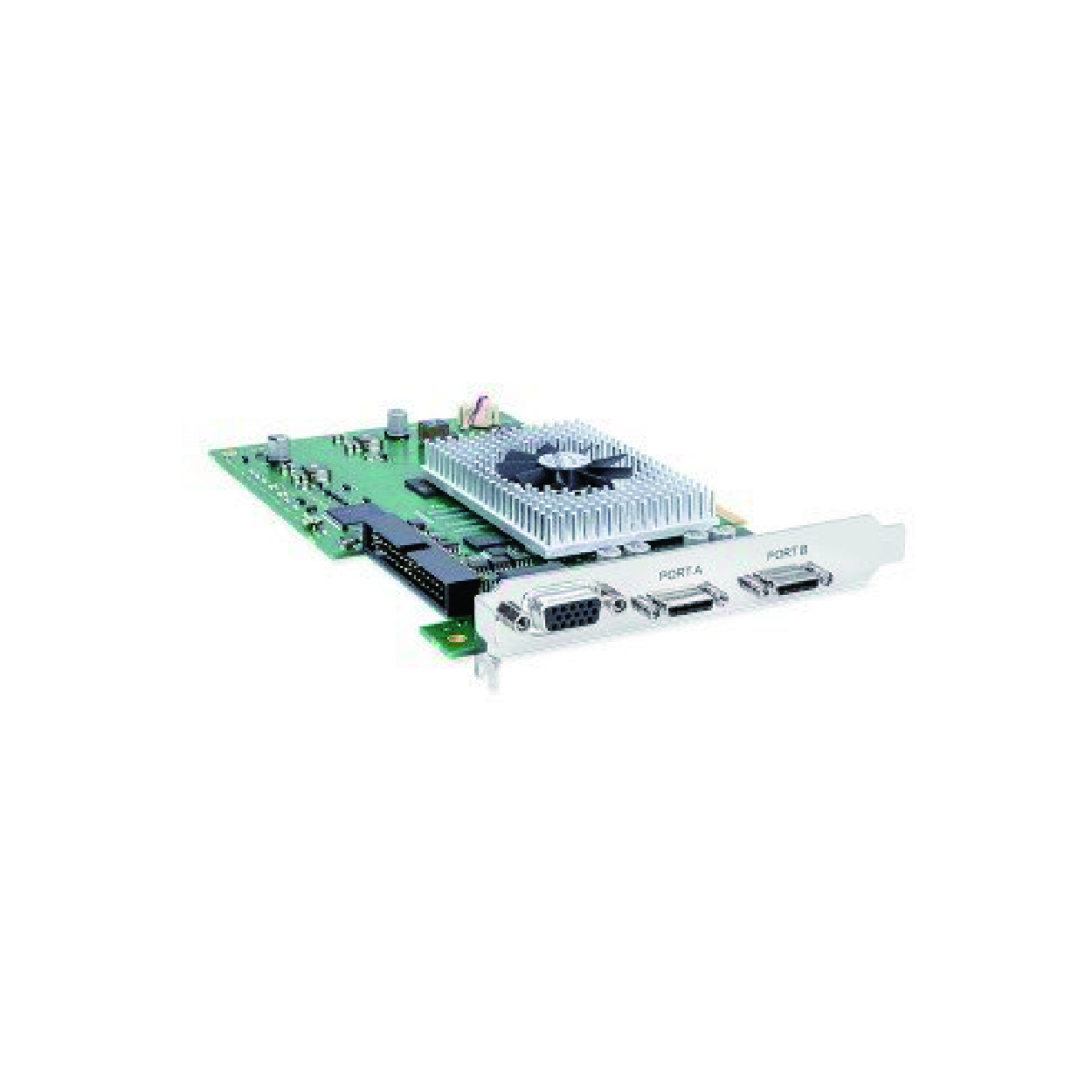

microEnable 5 marathon-VCLx

產品規格

PC Bus Interface

PCIe 2.1x4

Configuration

Camera Link - Deca

Connectors

SDR x2

Data Bandwid

6.8 Gbit/s (850 MB/s)

GPIO Interface

8 Input, 8 Output

立即詢價

INFORMATION

產品資訊

microEnable 5 marathon VCLx is a PCIe high performance image processing device that allows the connection of two cameras of any Camera Link standard specification.

microEnable 5 marathon VCLx focuses on high-speed and complex image processing for all Camera Link compliant cameras, and offers with DMA1800 technology an powerful access to advanced Machine Vision applications.

Enables complex real-time image progressing
Support of long cable length
Onboard image preprocessing functions
All formats of Camera Link standard including non-Standard formats
Industrial multi-device, multi-camera support
DMA 1800 / up to 1800 MB/s PCIe Data bandwidth (PCIe x4 Gen2)
Custom FPGA programming with VisualApplets supporting Xilinx Kintex FPGAs
Supports opto-decoupled signals via front I/O
Versatile application and industry usage
Broad support of Third-party software interfaces.

Device Features

Processor : Vision Processor
On-Board Memory : 2 GByte DDR3-RAM
Power via Interface : PoCL (4W/12V per cable, Safe Power)
