技術規格
| AH7040CG000E | |
| 感應器 | IMX287 |
| 傳感器類型 | 1/2.9″CMOS |
| 快門類型 | Global |
| 分辨率 | 720 × 540 |
| 幀率 | 310 fps（319.9 fps @Compression Mode Burst) |
| 位深 | 12 |
| 黑白/彩色 | 彩色 |
| 像元 | 6.9 μm × 6.9 μm |
| 像素 | 0.4 MP |
| 信噪比 | 39.7 dB |
| 動態範圍 | 68.3 dB |
| 圖像格式 | Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed,YUV422_8_UYVY,YUV422_8,RGB8,BGR8 |
| Binning | off/onebytwo/twobyone/twobytwo/onebyfour/fourbyone/twobyfour/ fourbytwo/fourbyfour/ThreebyThree/onebySix/SixbyOne/SixbySix |
| ROI | Support |
| X Flip | Support |
| Y Flip | Support |
| 增益 | 1～32X |
| Gamma | From 0 to 3.99998, support LUT |
| 快門曝光時間 | SE: 1 μs ~ 14 μs UE: 15 μs ~ 10 sec |
| 圖像采集模式 | Software Trigger/Hardware Trigger/Free Run Mode |
| SPC | Support |
| 配置通道 | Support three sets of user-defined configurations |
| 緩存 | 256MB |
| 介面 | GigE, PoE |
| GPIO接口 | 1× 6 pin Hirose: 1× Opto-isolated input, 1× Opto-isolated output, 1 configurable input and output |
| 鏡頭接口 | C-mount |
| 供電方式 | PoE/ DC 9V~24V power supply via Hirose interface |
| 功耗 | 12 VDC≈2.5W(Typ. ) |

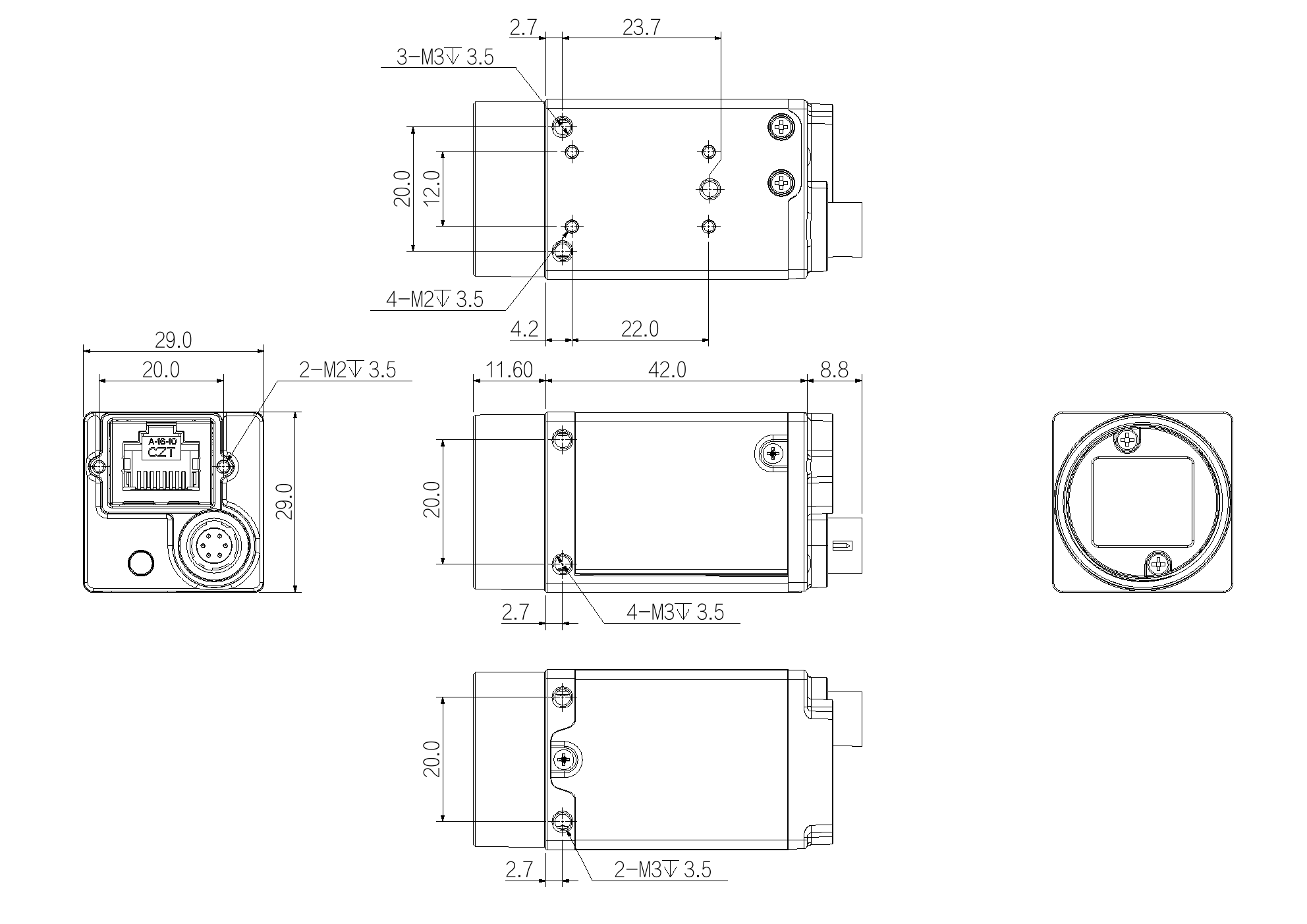

| 產品尺寸 | 29 mm×29 mm×42 mm (not including lens mount and rear case connector) |
| 重量 | 98 g |
| 儲存溫度 | -30℃~+80℃ |
| 工作溫度 | 0℃~+50℃ |
