ID1M-UCL Series

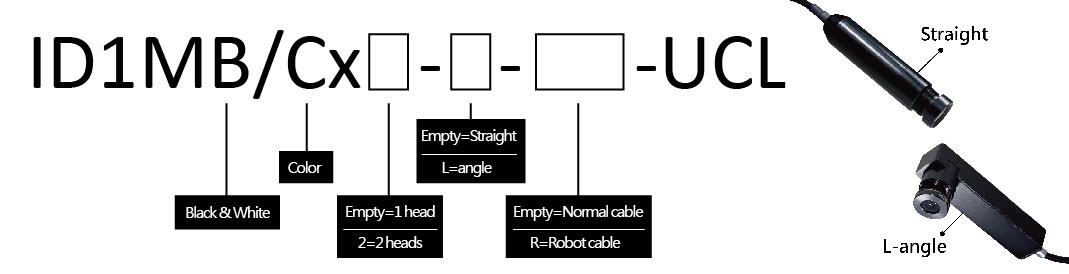

Modles of ID1M-UCL Series

ID1MB/C-UCL

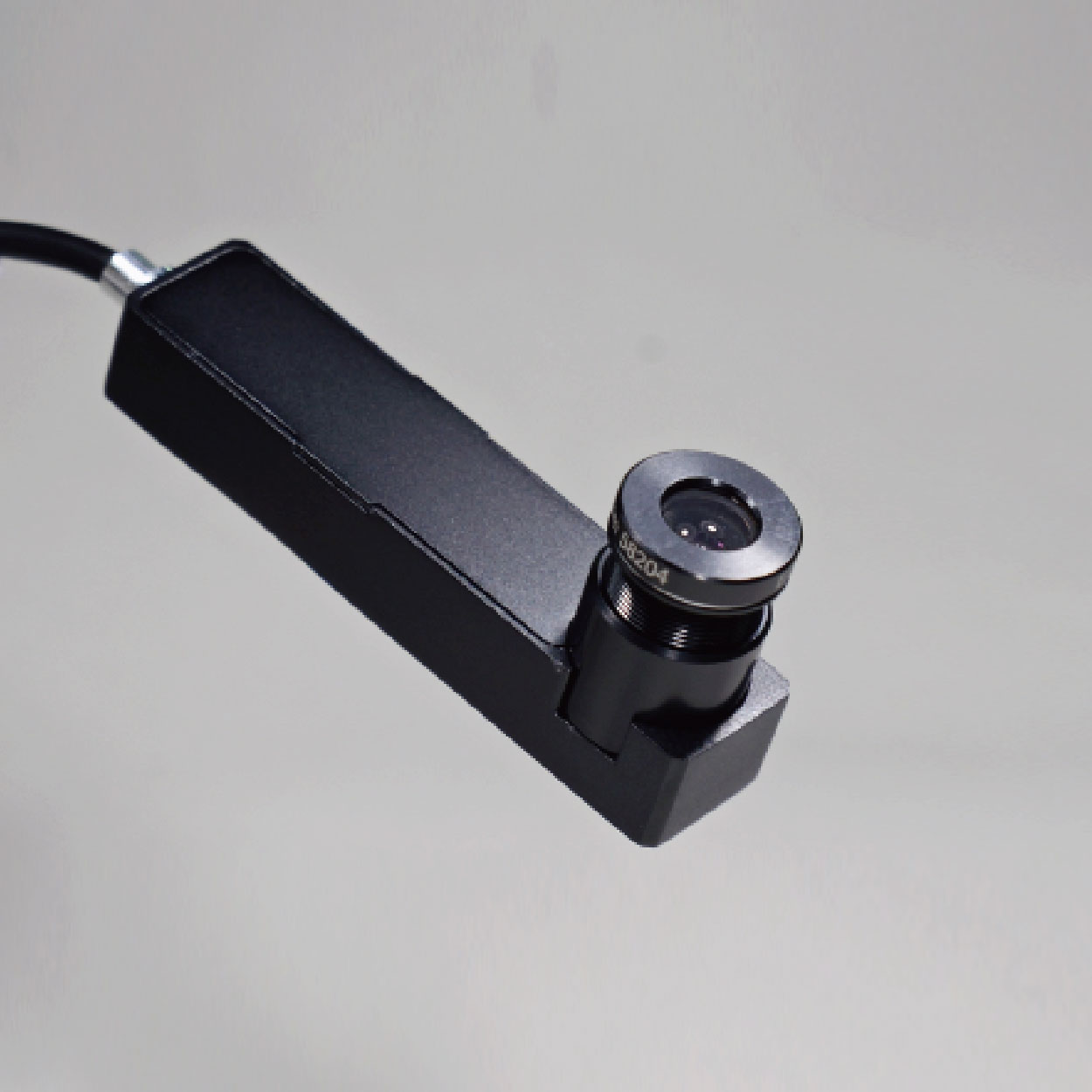

ID1MB/C-L-UCL
ID1MB/C-RC-UCL
ID1MB/C-L-RC-UCL

Overview

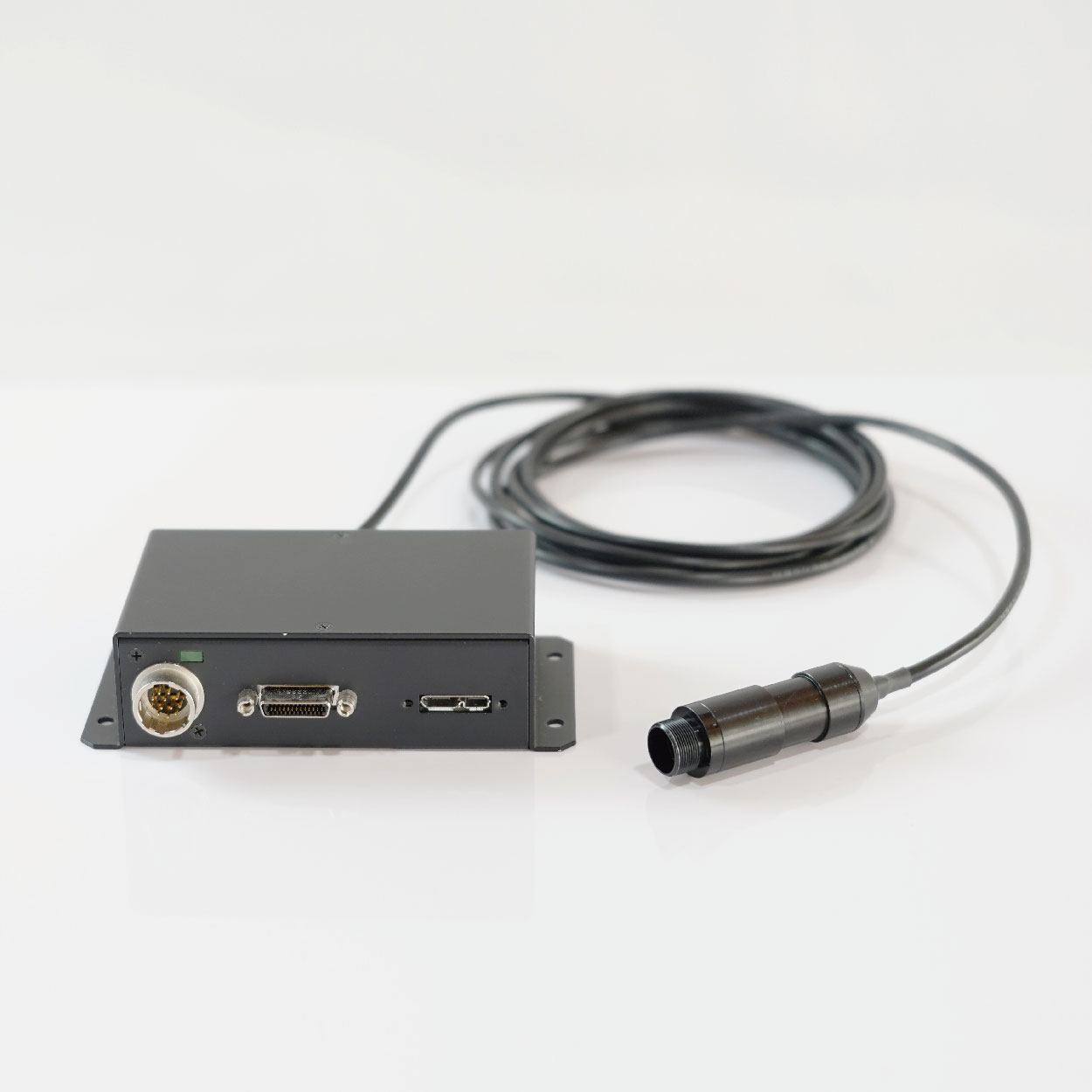

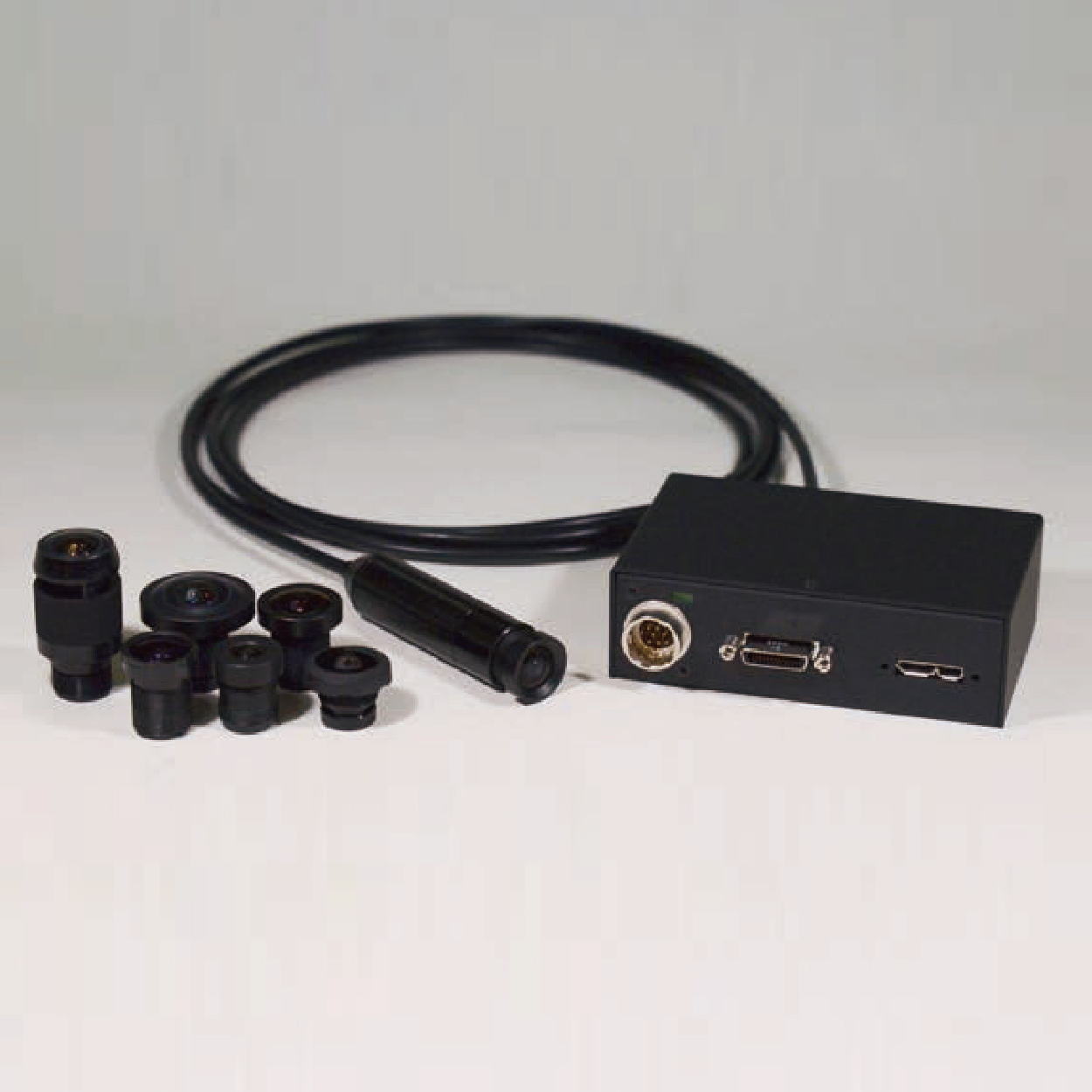

ID1M Series are head-separated compact Global Shutter cameras with 1.2M pixel AR135 resolution and M12/M10.5 lens mount. The two types of camera output, USB3.0 and the Cameralink interface, are supported. You may let CCU (Camera Control Unit) host two camera heads synchronized as single frame.In addition, a camera head cable compatible with a detachable robot cable has also been added.

Key features

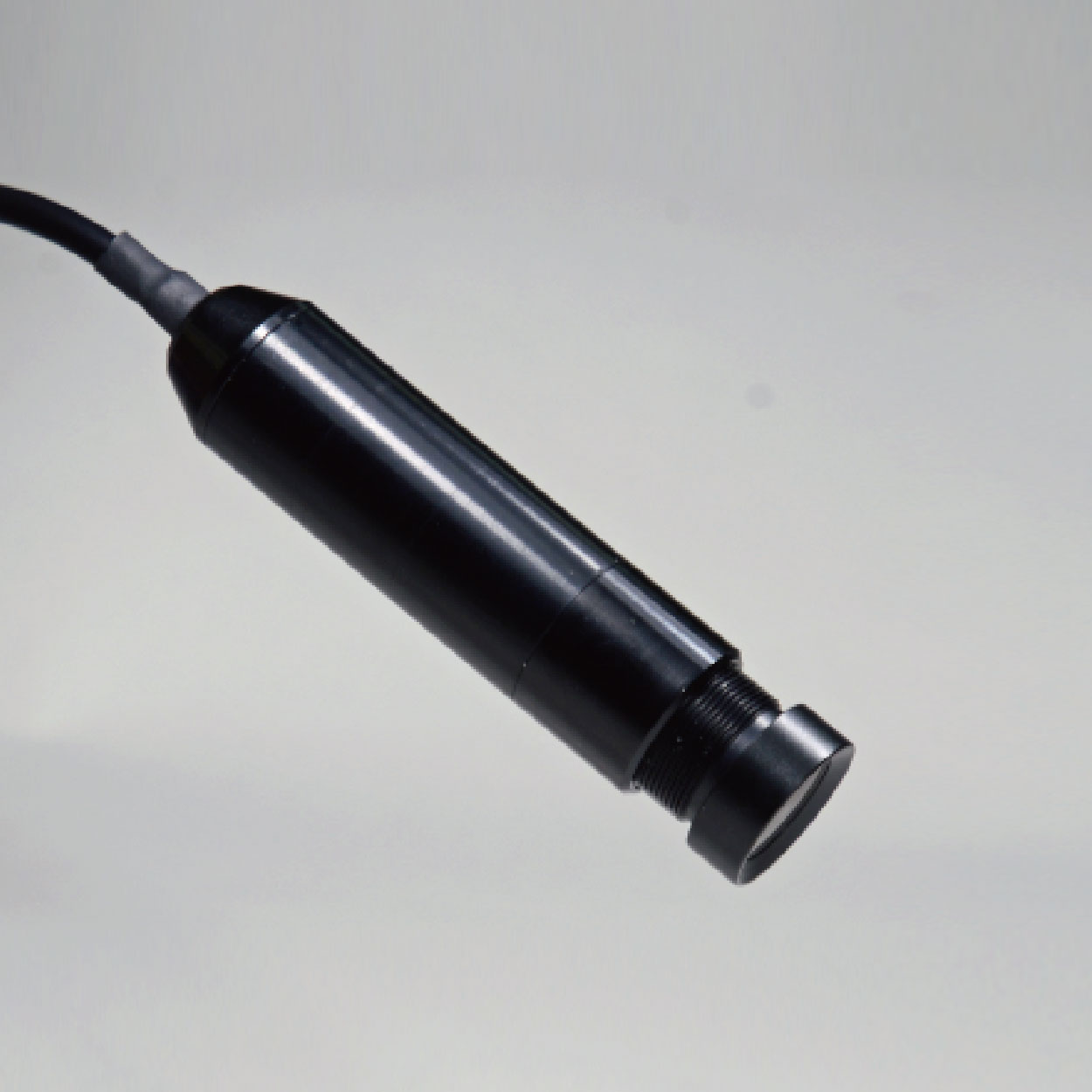

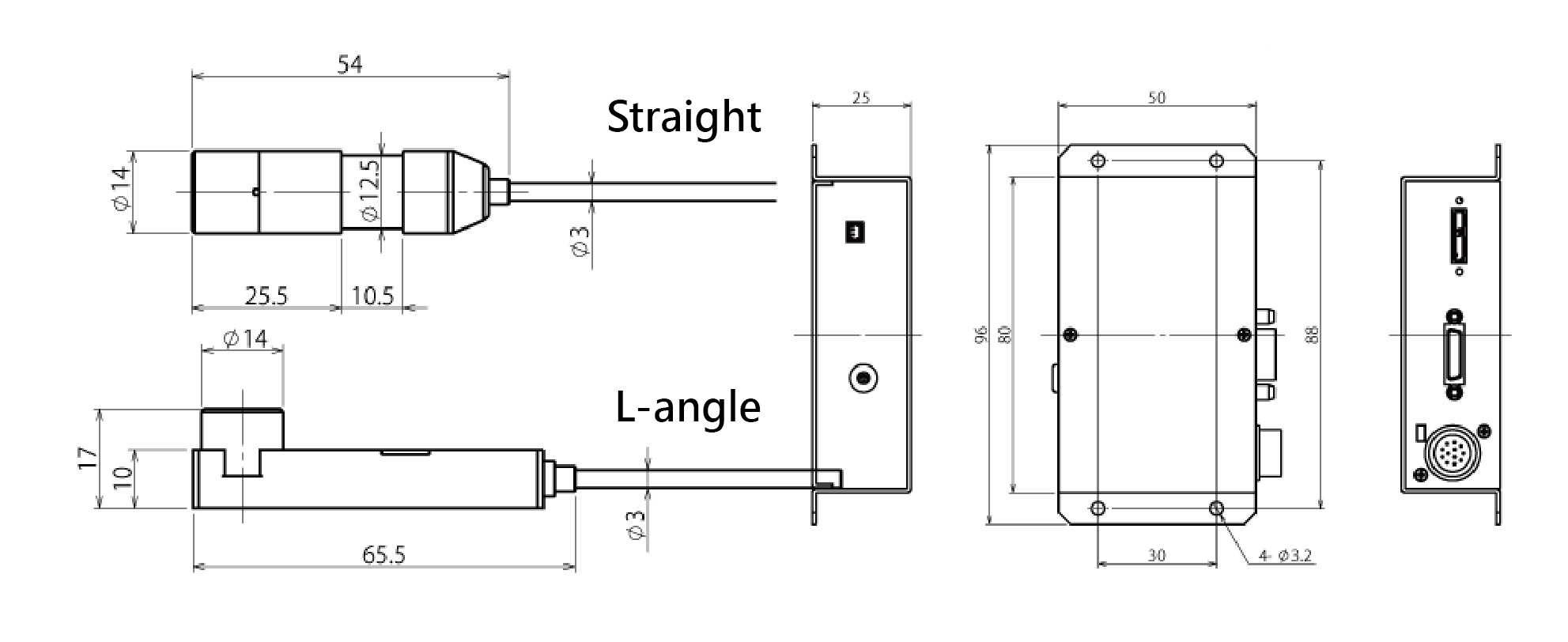

• Compact GS Camera with the 14mmφ body
• 2-head-synchronized capturing
• Two Types (USB and Camera Link)of camera output supported
• Detachable robot cable compatible model
• Lens mount : M12
• Image Circle : 1/3inch　φ6.0mm size
• Output Format : 8/10/12bit
• Shutter Speed : off～1/40,000s
• Trigger Mode : Fixed shutter trigger mode, plus width shutter trigger mode

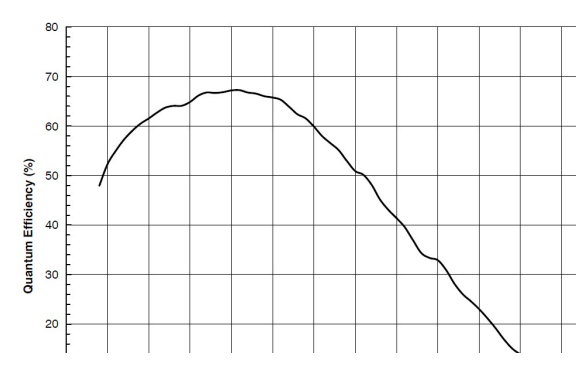

Mono

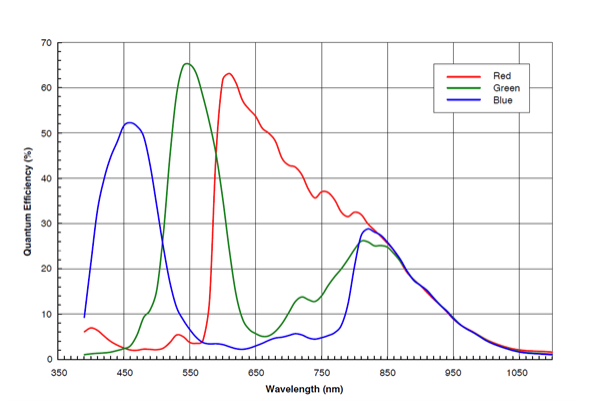

Color
