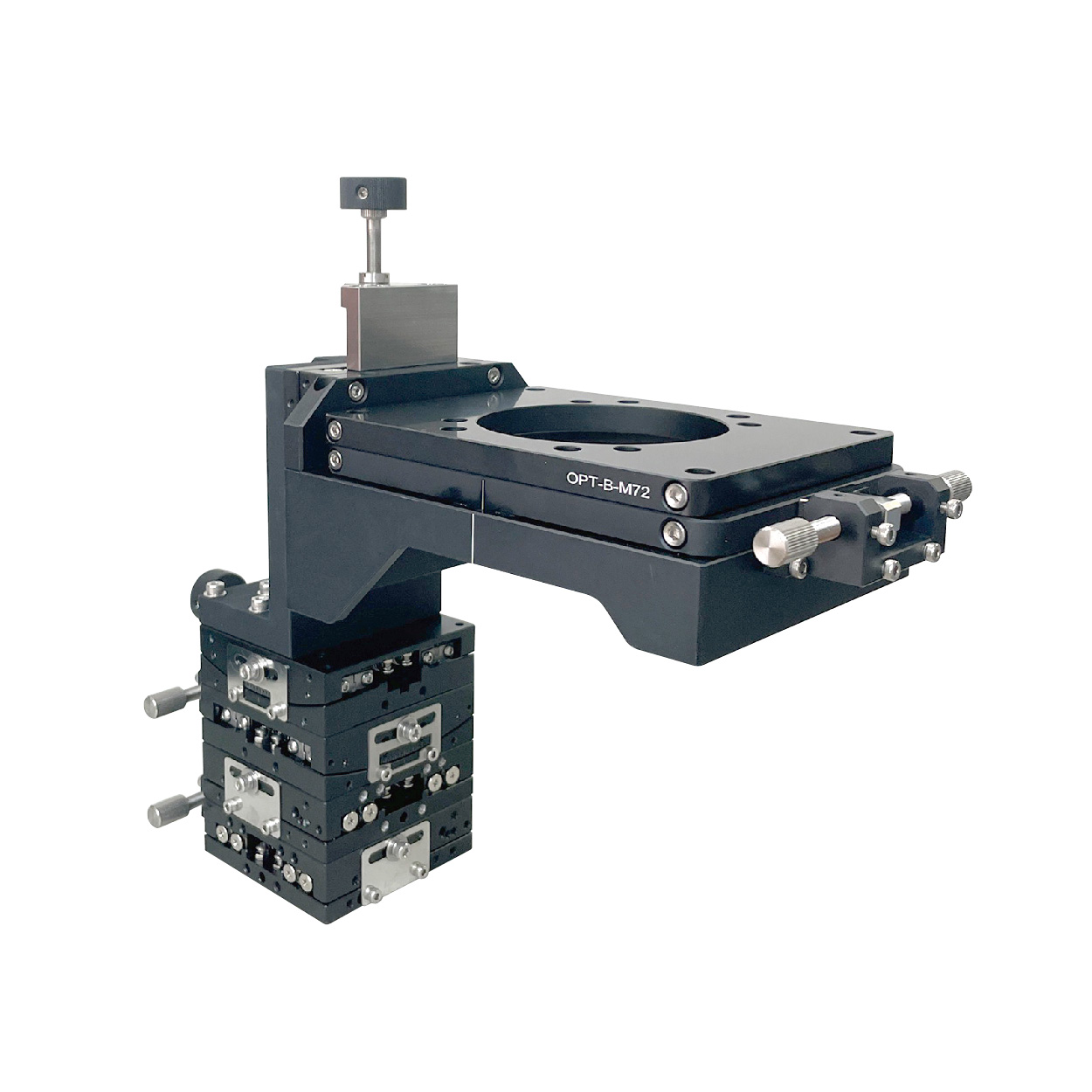

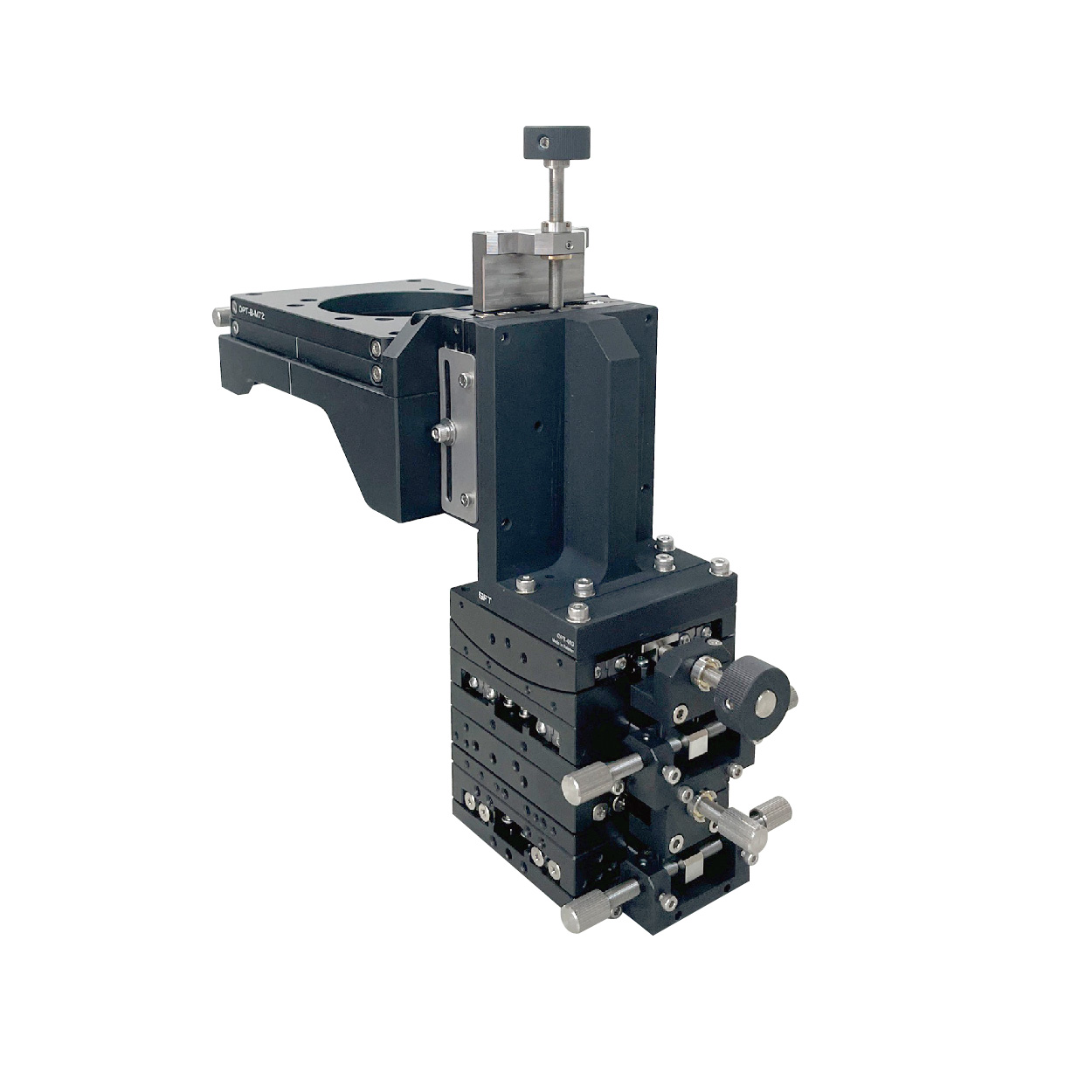

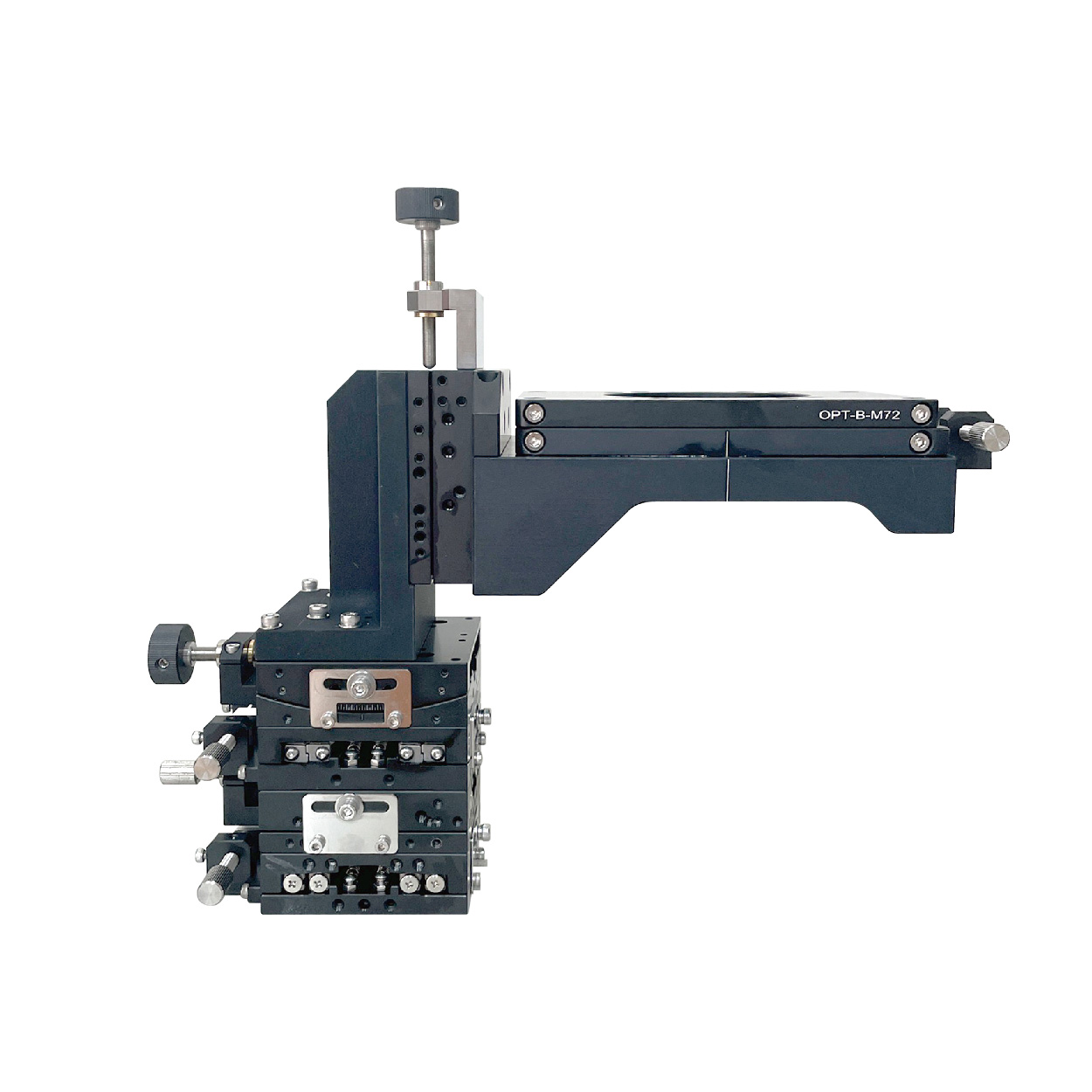

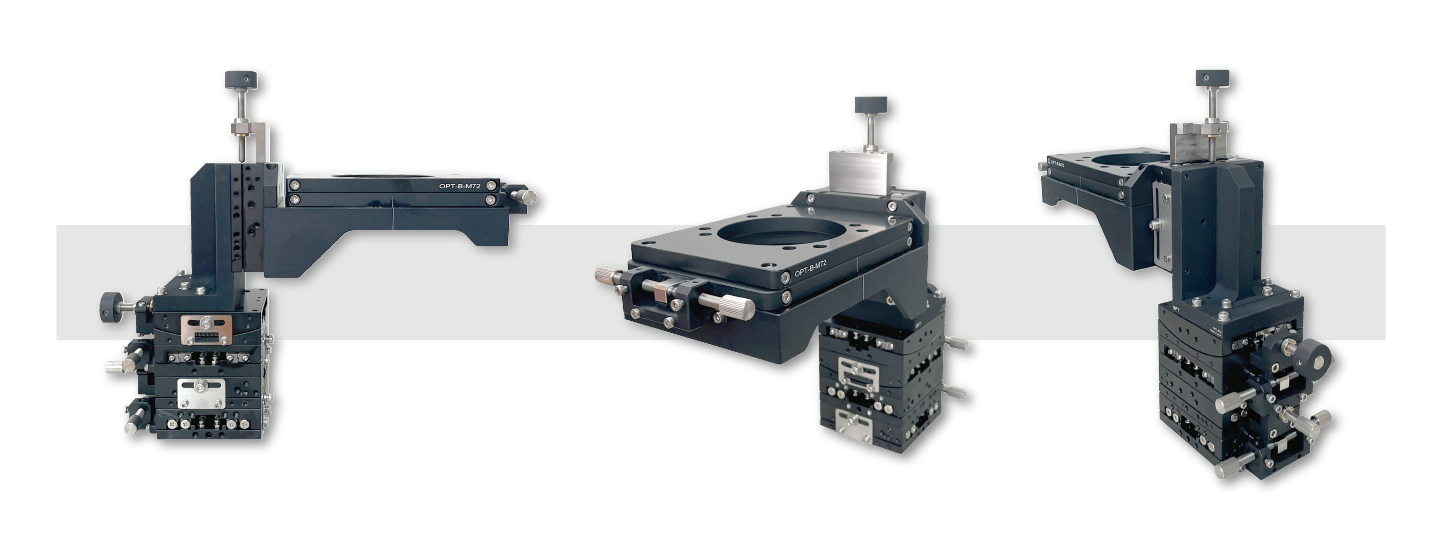

• Multiple line scan cameras are necessary for inspection systems. Six-axis adjustment can be used to align the optical axes of multiple cameras in a straight line.
• Can be used according to the camera size and mount of various brands (currently the maximum support is M95).
• Micrometer head transmission adjustment, suitable for um level resolution.
• Once the adjustment is in place, it stops and locks, so you no longer have to worry about the stopper moving out of position when locking.
• Also supports reverse installation (used for inspection on the back of the product).
•In addition to the standard 4-axis and 6-axis products, the number of axes can also be increased or decreased according to customer needs (such as two-axis theta+alpha).
•Can be used corresponding to camera sizes and mounts of various brands
• Z-axis fine adjustment up and down: ±18.0 mm
• alpha angle: ±5 degrees
• beta angle: ±4 degrees
•Theta angle: ±3.5 degrees
