The AX7Q10CX770E is a high-end industrial camera equipped with the CoaXPress CXP-6 high-speed interface, combining high-bandwidth transmission, diverse image processing functions and a stable power supply design. It is tailored for high-precision, high-speed image capture applications.
| AX7Q10CX770 | |
| Sensor | IMX411 |
| Image Sensor | IMX411 |
| Shutter | Rolling |
| Resolution | 14160 × 10640 |
| Frame Rate | 6.2 fps |
| Bit Depth | 12 bit |
| Mono/Color | Color |
| Pixel Size | 3.76 μm × 3.76 μm |
| Pixel | 151 MP |
| S/N Ratio | 45 dB |
| Dynamic Range | 78 dB |
| Image Format | Bayer 8/10/12 |
| ROI | Support |
| X Flip | Support |
| Y Flip | No Support |
| Gain | Analog gain: 1x ~ 63x, Digital gain: 1x ~ 100x |
| Exposure Time | 30 μs ~ 5 s |
| Trigger Mode | Software Trigger/Hardware Trigger/Free Run Mode |
| SPC | Support |
| User Setting | Support two sets of user-defined configurations |
| Port | CXP-6 |
| GPIO Interface | 3x Opto-isolated input, 3x Opto-isolated output;1x RS232 |
| Lens Mount | M72 x 0.75 |
| Power Supply | DC 24V power supply via 12 Hirose interface |
| Power Consumption | 24 V ≈ 51.6 W |

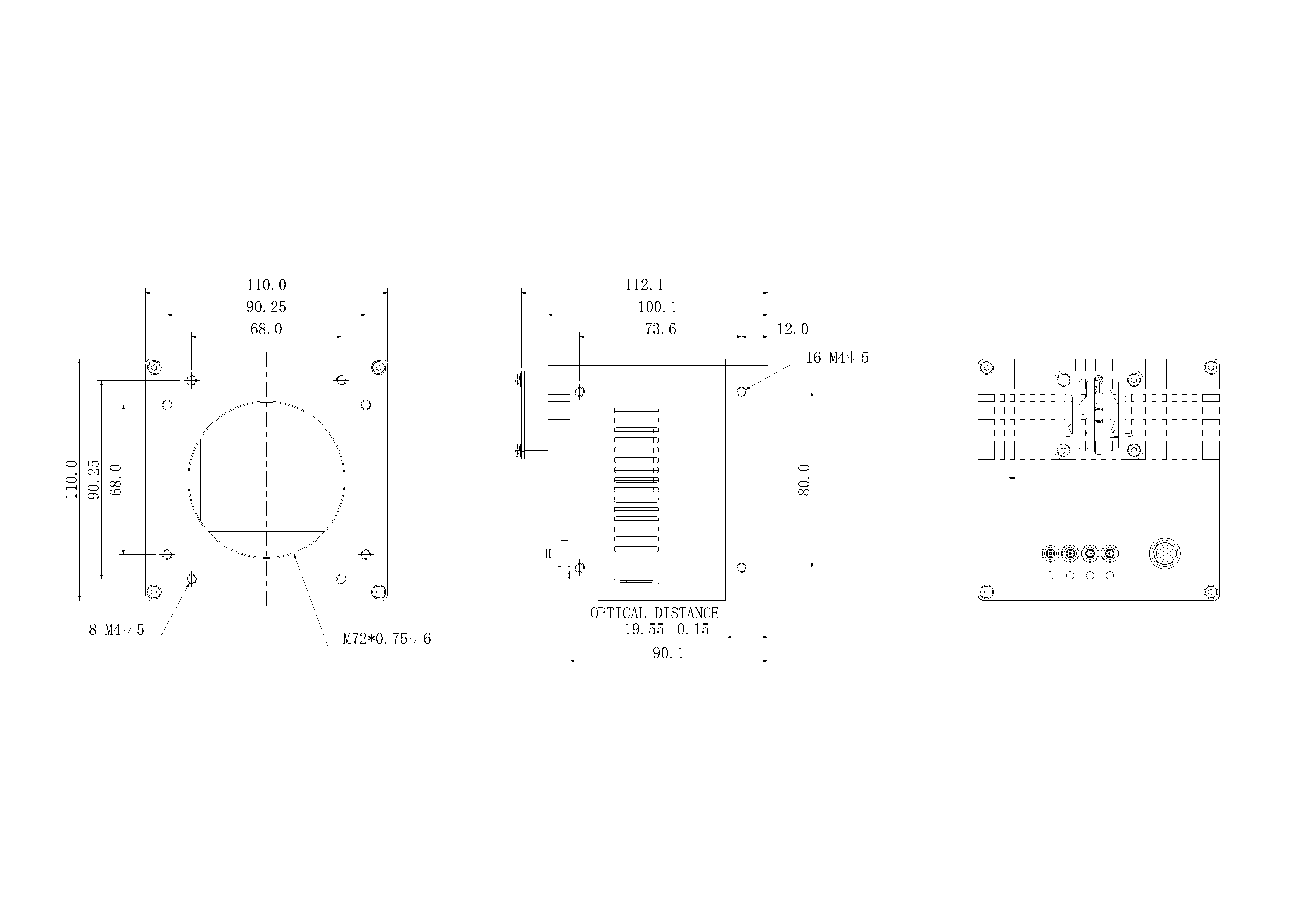

| Product Dimensions | 110 mm × 110 mm × 90 mm (Non including rear case connector) |
| Net Weight | 1kg |
| Storage Temperature | -30℃ ~ 80℃ |
| Operating Temperature | -30℃ ~ 50℃ |
