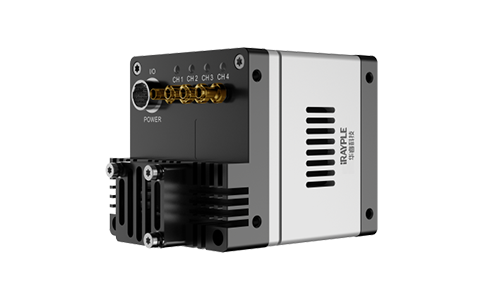

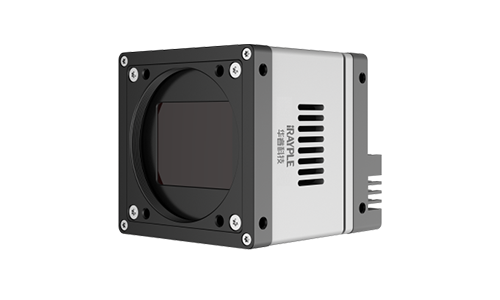

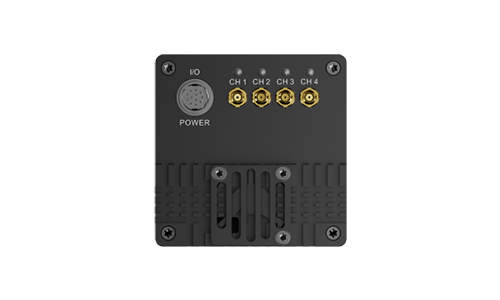

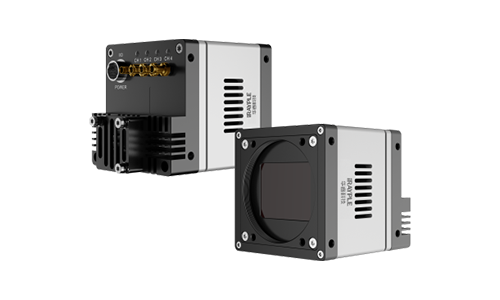

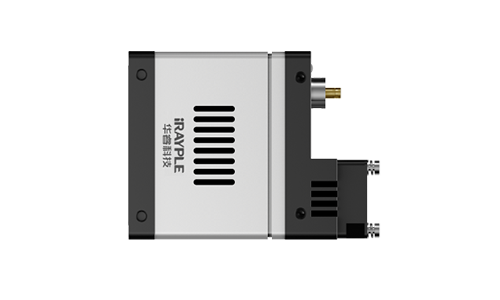

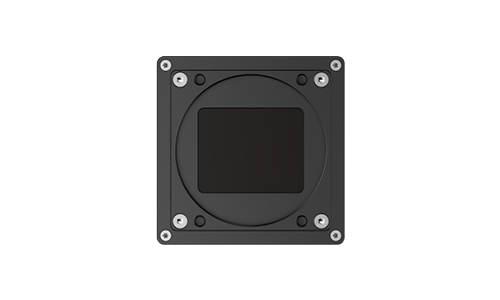

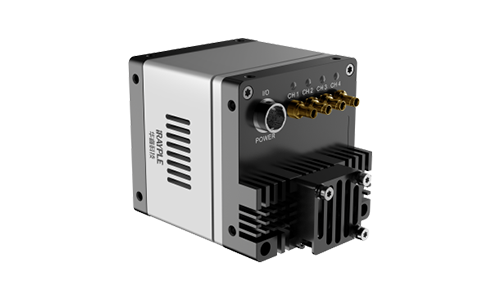

The AX5F57CX250E is a camera suitable for application scenarios with strict requirements for high-speed, high-resolution image capture, such as precision manufacturing, defect detection and high-speed inspection.
| AX5F57CX250E | |
| Sensor | GMAX3265 |
| Image Sensor | 29.9 mm x 22.4 mm CMOS |
| Shutter | Global |
| Resolution | 9344 × 7000 |
| Frame Rate | 31 fps |
| Bit Depth | 12 bit |
| Mono/Color | Color |
| Pixel Size | 3.2 μm × 3.2 μm |
| Pixel | 65 MP |
| S/N Ratio | 40 dB |
| Dynamic Range | 66 dB |
| Image Format | BayerRG 8/10/12 |
| ROI | Support |
| X Flip | Support |
| Y Flip | Support |
| Gain | Analog gain: 1x ~ 4.8x, Digital gain: 1x ~ 100x |
| Exposure Time | 27 μs ~ 5 s |
| Trigger Mode | Software Trigger/Hardware Trigger/Free Run Mode |
| SPC | Support |
| User Setting | Support two sets of user-defined configurations |
| Port | CXP-6 |
| GPIO Interface | 3x Opto-isolated input, 3x Opto-isolated output;1x RS232 |
| Lens Mount | M58 × 0.75 |
| Power Supply | DC 24V power supply via 12 Hirose interface，support PoCXP |
| Power Consumption | 24 V ≈ 21.6 W |
| Product Dimensions | 72 mm × 72 mm × 70 mm (Non including rear case connector) |
| Net Weight | 690 g |
| Storage Temperature | -30℃ ~ 80℃ |
| Operating Temperature | -30℃ ~ 50℃ |
