AX5E07CK250E

OVERVIEW

The AX5E07CK250E is equipped with a high-speed CameraLink interface, delivering stable and low-latency image transmission to meet the demands of high-precision machine vision and real-time processing applications.

KEY FEATURES

• A pantented flatness mediation scheme to eliminate area defocusing;
• Excellent heat dissipation design, precise temperature control and constant, temperature maintenance;
• Support Software Trigger/Hardware Trigger/Free Run mode, support to use CameraLink acquisition card to trigger the camera;
• Support custom ROI, vertical mirror;
• With 10TAP outputs, the frame rate of up to 12.5fps at 85M clock for 65MP and 17.5fps at 85M clock for 50MP;
• Support automatic exposure, Gamma, LUT, and other ISP function;
• Color camera support automatic white balance;
• Support for FFC function to provide more uniform picture quality;
• Support fan speed adaptive function for setting the target temperature of the sensor;
• Conform to CameraLink protocol and GenICam standard;
• Support DC 24V power supply;
• Comform to CE, FCC, KC, RoHS;

SPECIFICATIONS

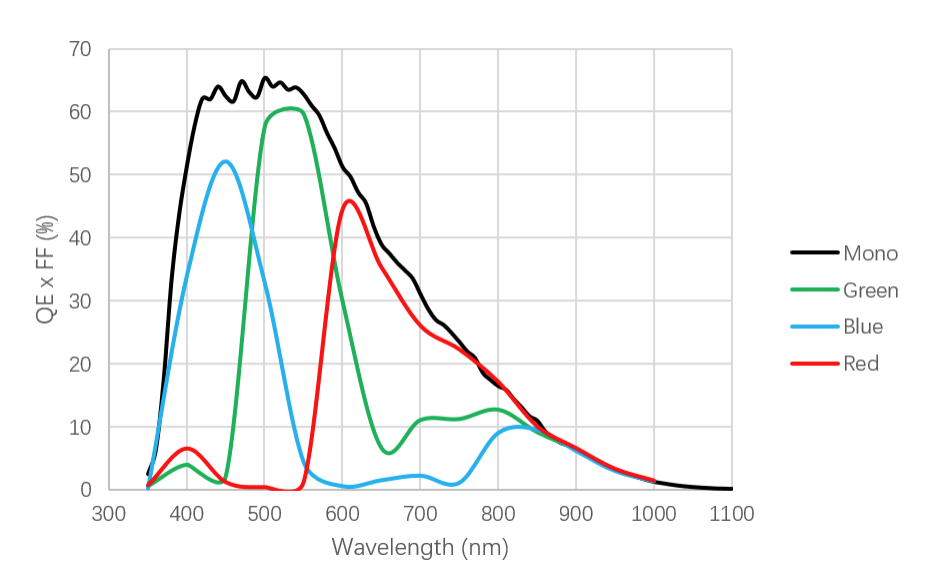

SPECTRALSENSITIVITY (MONO AND COLOR)

DRAWINGS
