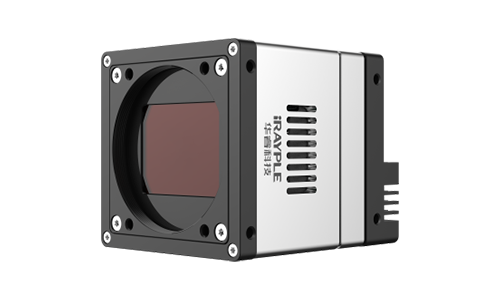

AX5F57CT250E

AX Series-65MP 10GigE Color

Specification

Brand

IRAYPLE

Model

Spectrum

Color

Resolution

9344x7000

Pixel Size

3.2

Line/Frame Rate

17.4fps

Interface

10 GigE

Request Quote

INFORMATION

OVERVIEW

The AX5F57CT250E is a high-end industrial camera with a maximum resolution of 65MP and 10TAP high-speed output capability, suitable for high-precision and high-speed image acquisition needs.

KEY FEATURES

10GigE interface, provides up to 10Gbps effective bandwidth;
A patented flatness mediation scheme to eliminate area defocusing;
Excellent heat dissipation design, precise temperature control and constant temperature maintenance;
1GB on-board cache for data transmission or image resend;
Support Software Trigger/Hardware Trigger/Free Run mode;
Support user-defined ROI, horizontal mirror and vertical mirror;
Support ISP functions including Auto Exposure/Auto Gain/Auto BlackLevel/Gamma Correction/LUT etc.;
Mono cameras support auto contrast adjustment;
Support for FFC function to provide more uniform picture quality;
Support fan speed adaptive function for setting the target temperature of the sensor;
Conform to GigE Vision protocol and GenICam standard;
Support DC 24V power supply;
Conform to CE, FCC, KC, RoHS;

SPECIFICATIONS

	AX5F57CT250
Sensor	GMAX3265
Image Sensor	29.9 mm × 22.4 mm CMOS
Shutter	Global
Resolution	9344 × 7000
Frame Rate	17.4 fps
Bit Depth	12 bit
Mono/Color	Mono
Pixel Size	3.2 μm × 3.2 μm
Pixel	65 MP
S/N Ratio	40 dB
Dynamic Range	66 dB
Image Format	BayerRG8/BayerGB8
ROI	Support
X Flip	Support
Y Flip	Support
Gain	1~32
Exposure Time	Support
Trigger Mode	16μS~15S
SPC	0 ~ 4,support LUT
Trigger Mode	Software Trigger/Hardware Trigger/Free Run Mode
User Setting	Support two sets of user-defined configurations
Port	10GigE
GPIO Interface	3x Opto-isolated input, 3x Opto-isolated output, 1x RS232
Lens Mount	M58 × 0.75
Power Supply	DC 24V power supply via 12 Hirose interface
Power Consumption	24 V ≈ 20.16 W
Product Dimensions	72 mm × 72 mm × 80 mm (not including rear case connector)
Net Weight	600 g
Storage Temperature	– 30℃~+80℃
Operating Temperature	– 30℃~+50℃
