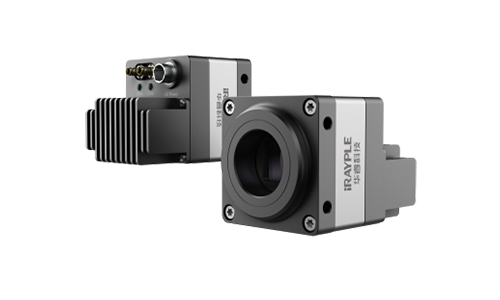

The A9A87MX703E is a high-speed CoaXPress CXP-6 interface, integrating advanced image processing capabilities and flexible power options to deliver a high-performance and stable imaging solution for industrial applications.
| A9A87MX703E | |
| Sensor | GMAX2518 |
| Image Sensor | 11.27 mm × 10.24 mm CMOS |
| Shutter | Global |
| Resolution | 4496 × 4096 |
| Frame Rate | 64 fps |
| Bit Depth | 12 bit |
| Mono/Color | Mono |
| Pixel Size | 2.5 μm × 2.5 μm |
| Pixel | 18 MP |
| S/N Ratio | 37.7 dB |
| Dynamic Range | 66.9 dB |
| Image Format | Mono8/10/12 |
| ROI | Support |
| X Flip | Support |
| Y Flip | Support |
| Gain | Analog Gain: 1× ～ 2×，Digital Gain: 1× ～ 100× |
| Exposure Time | 8 μS ～ 5 S |
| Trigger Mode | Software Trigger/Hardware Trigger/Free Run Mode |
| SPC | Support |
| User Setting | Support two sets of user-defined configurations |

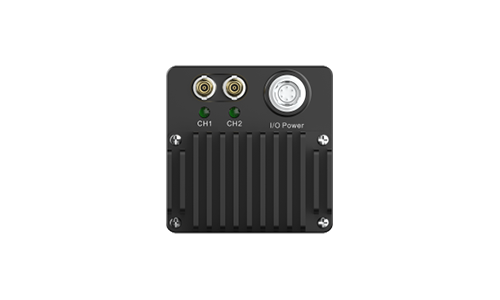

| Port | CXP-6 |
| GPIO Interface | 1× Opto-isolated input, 1× Opto-isolated output, 1× configurable input and output |

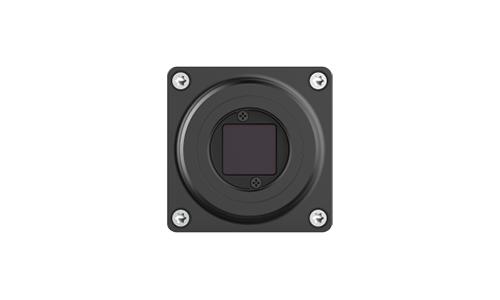

| Lens Mount | C-mount |
| Power Supply | DC 24V power supply via 6 Hirose interface, support PoCXP |
| Power Consumption | 24V ≈ 8W |

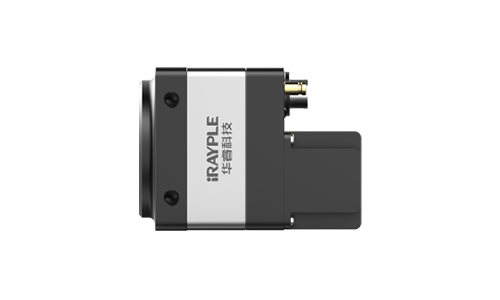

| Product Dimensions | 50 mm × 50 mm × 44.8 mm (Non including rear case connector) |
| Net Weight | 240 g |
| Storage Temperature | -30℃ ~ 80℃ |
| Operating Temperature | -30℃ ～ 40℃ |
