The AX7C10MG250E is equipped with GigE interface, advanced image processing and intelligent temperature control technology, providing stable, clear and highly compatible image capture solutions, which are widely used in automation and precision inspection applications.
| AX7C10CG250E | |
| Sensor | IMX342 |
| Image Sensor | 22.3 mm x 16.7 mm CMOS |
| Shutter | Global |
| Resolution | 6464 × 4852 |
| Frame Rate | 3.6 fps |
| Bit Depth | 12 bit |
| Mono/Color | Mono |
| Pixel Size | 3.45 μm × 3.45 μm |
| Pixel | 31 MP |
| S/N Ratio | 40 dB |
| Dynamic Range | 73 dB |
| Image Format | Mono8/10/10Packed/12/12Packed |
| Binning | Support 1X2 2X1 2X2 |
| ROI | Support |
| X Flip | Support |
| Y Flip | Support |
| Gain | 1 ~ 32 |
| Gamma | From 0 ~ 4，Support LUT |
| Exposure Time | 3 μs ~ 15 s |
| Trigger Mode | Software Trigger/Hardware Trigger/Free Run Mode |
| SPC | Support |
| User Setting | Support two sets of user-defined configurations |
| Image Buffer | 256 MB |
| Port | GigE |
| GPIO Interface | 3x Opto-isolated input, 3x Opto-isolated output, 1x RS232 interface |
| Lens Mount | M58 x 0.75 |
| Power Supply | DC 24V power supply via 12-pin Hirose interface |
| Power Consumption | 24 V ≈ 7.86 W |

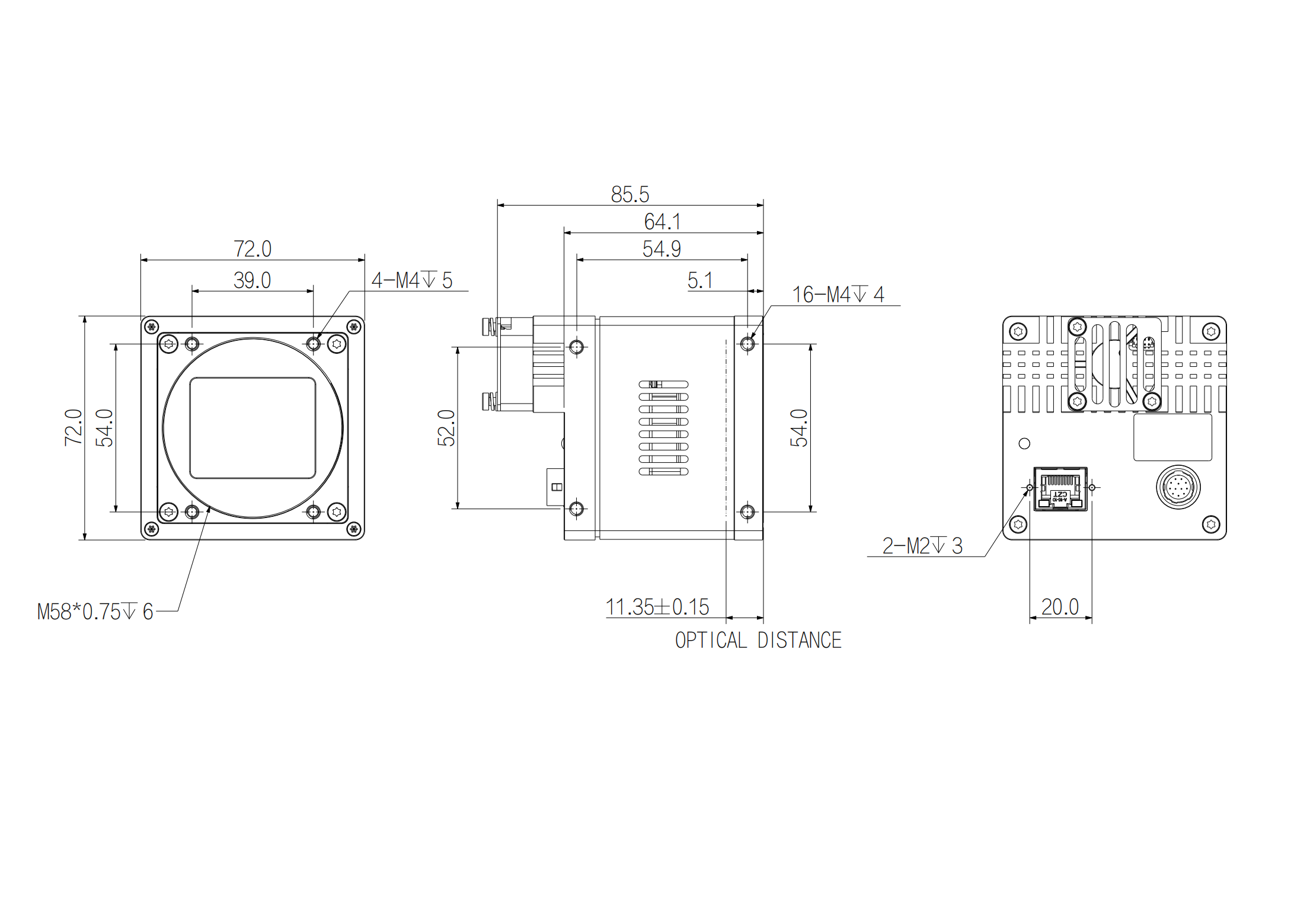

| Product Dimensions | 72 mm x 72 mm x 64 mm ( not including the rear case connector) |
| Net Weight | 487 g |
| Storage Temperature | -30℃ ~ 80℃ |
| Operating Temperature | -30℃ ～ 50℃ |
