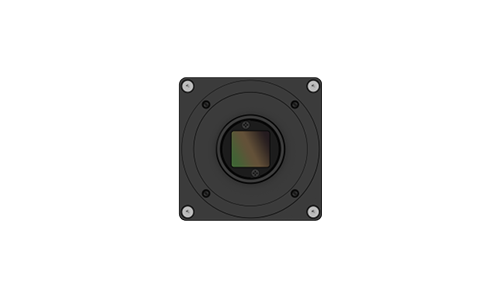

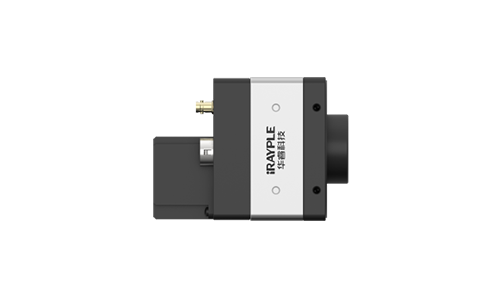

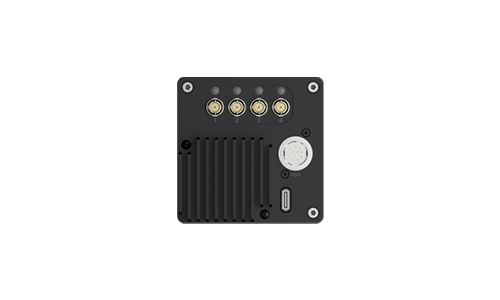

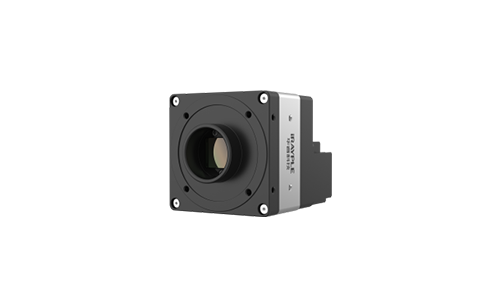

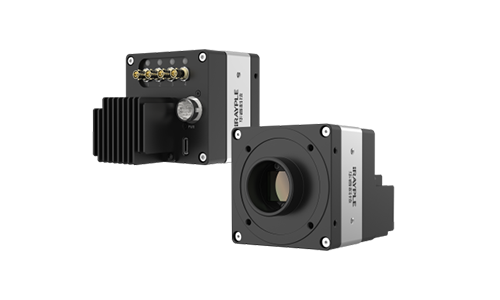

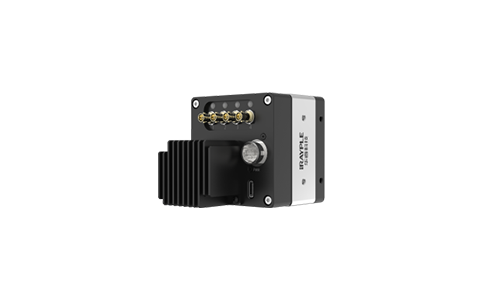

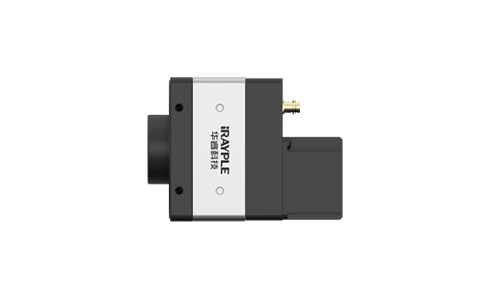

The AX0257MP4E-100 is a high-performance industrial vision camera equipped with a CoaXPress CXP-12 interface, offering up to 10Gbps stable transmission bandwidth and intelligent image processing capabilities, ideal for long-distance and high-reliability applications.
| AX0257MP4E-100 | |
| Sensor | GMAX32152 |
| Image Sensor | 1.1″CMOS |
| Shutter | Global |
| Resolution | 5120 × 5120 |
| Frame Rate | 150 fps |
| Bit Depth | 10 bit |
| Mono/Color | Mono |
| Pixel Size | 2.5 μm × 2.5 μm |
| Pixel | 25 MP |
| S/N Ratio | 36 dB |
| Dynamic Range | 63 dB |
| Image Format | Mono8/10/12 |
| Binning | Support |
| ROI | Support |
| X Flip | Support |
| Y Flip | Support |
| Gain | Analog gain: 0.4x ~ 6.6x, Digital gain: 1x ~ 32x |
| White Balance | From 0 to 4, support LUT |
| Exposure Time | 2 μs～15 s |
| Trigger Mode | Software Trigger/Hardware Trigger/Free Run Mode |
| SPC | Support |
| User Setting | Support two sets of user-defined configurations |
| Port | CXP-12 |
| GPIO Interface | 3x Opto-isolated input, 3x Opto-isolated output |
| Lens Mount | C-mount |
| Power Supply | DC 24V power supply via 12 Hirose interface，support PoCXP |
| Power Consumption | 9.8 W |

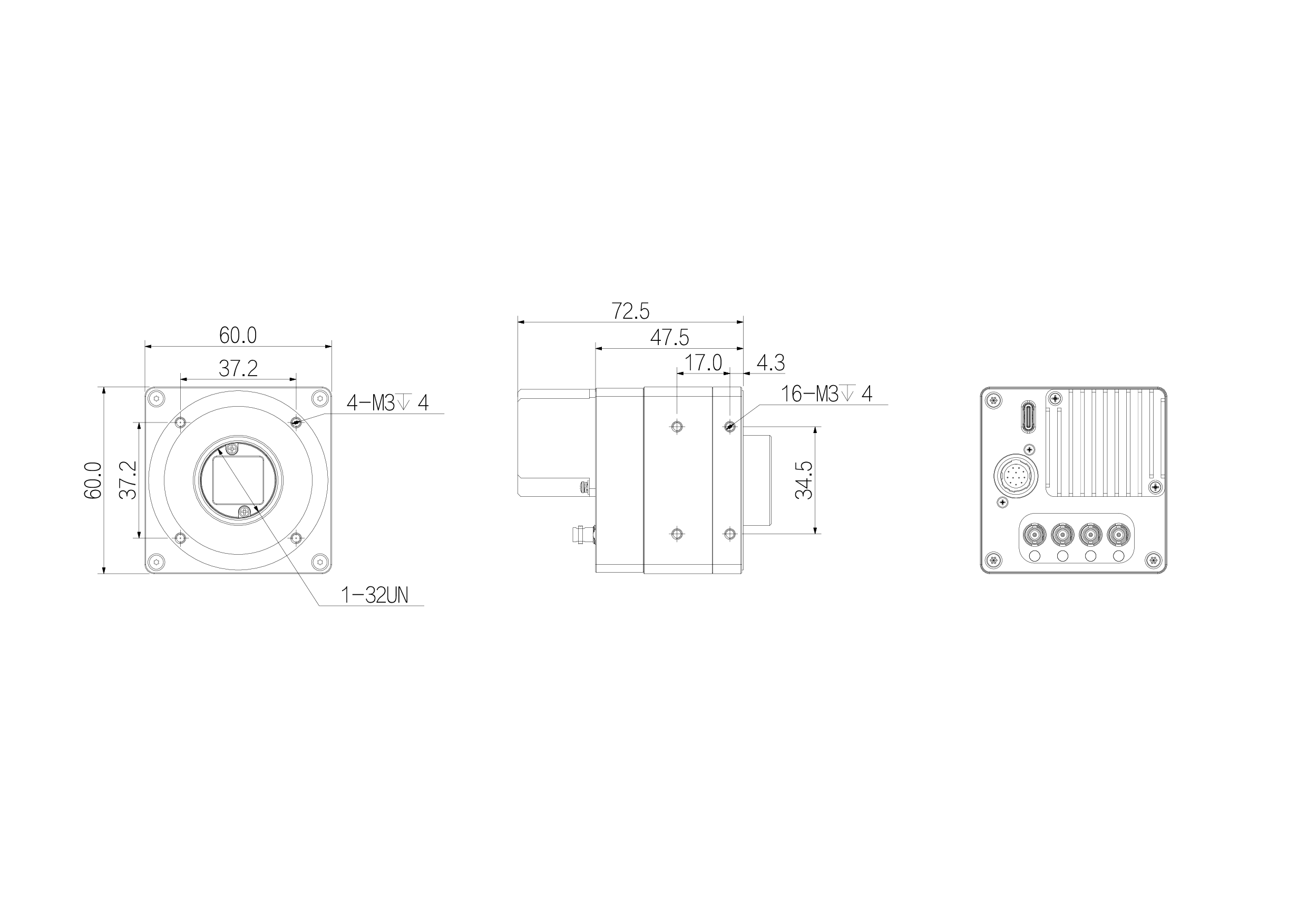

| Product Dimensions | 60 mm × 60 mm × 47.5 mm (not including rear case connector) |
| Net Weight | 333 g |
| Storage Temperature | -30℃ ~ 80℃ |
| Operating Temperature | 0℃ ~ 40℃ |
